Mounted with 2 x M8
Mounted with 4 x M6

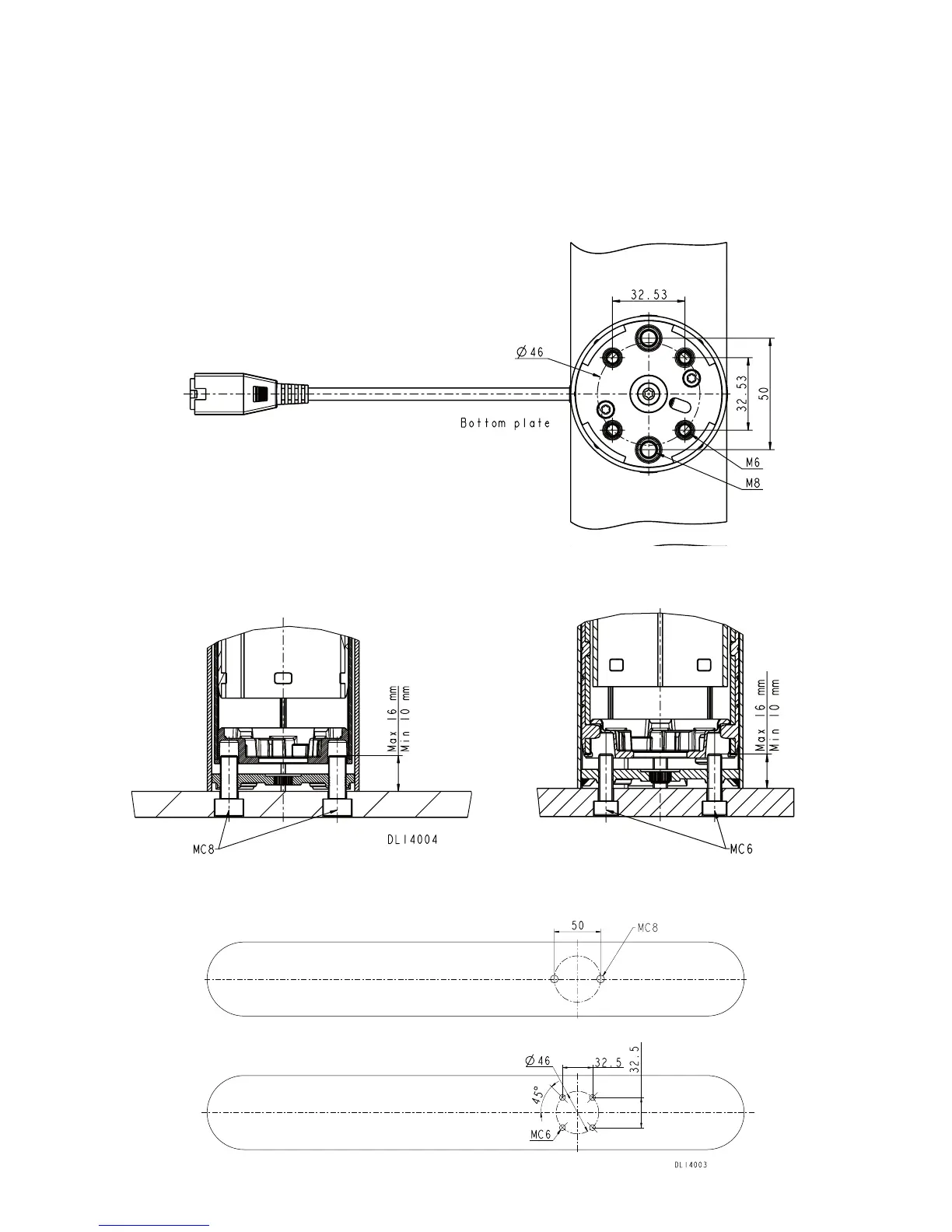

Mounting guidelines for the column DL14
Mounting foot
The DL14 is supplied with 4 M6 threaded holes and 2 M8 screws for mounting of the foot. You can either use 2 M8 screws or
4 M6 screws dependent on your foot design. We advise you to use screws of a good quality min. 8.8 and of a suitable length,
which must not go further than 16 mm into the DL14 column. The thrust moment must not exceed 10 Nm in the bottom plate
thread.
The holes in the foot ought to be sufficiently larger than ø6 so that it is possible to bring the foot to a level line at assembly/
mounting of the table.
