Mounting guidelines for the DL17 system
Mounting foot
The DL17 is supplied with 4 x M6 threaded holes and 2 x M8
screws for mounting of the foot. You can use either 2 x M8
screws or 4 x M6 screws dependent on your foot design. We
advise you to use screws of a good quality min. 8.8 and of
a suitable length, which must not go into the DL17 column
further than 16 mm. The screw torque must not exceed 10
Nm in the bottom plate thread.
The holes in the foot ought to be sufficiently larger than
(1) 6 so that it is possible to bring the foot to a level line at
assembly/mounting of the table.
Mounting top
The top of the column is supplied with 4 x M6 threaded
holes meant for mounting onto the desk frame . We advise
you to fasten the desk frame by means of 4 x M6 screws of
a good quality (min. 8.8) and a suitable length of minimum
10 mm and must not go into the column further than
maximum 14 mm. The screw torque must not exceed 10 Nm
As the desktop amplifies the sound, we advise you to place a vibration/shock absorbing material between the desktop
and the desk frame.

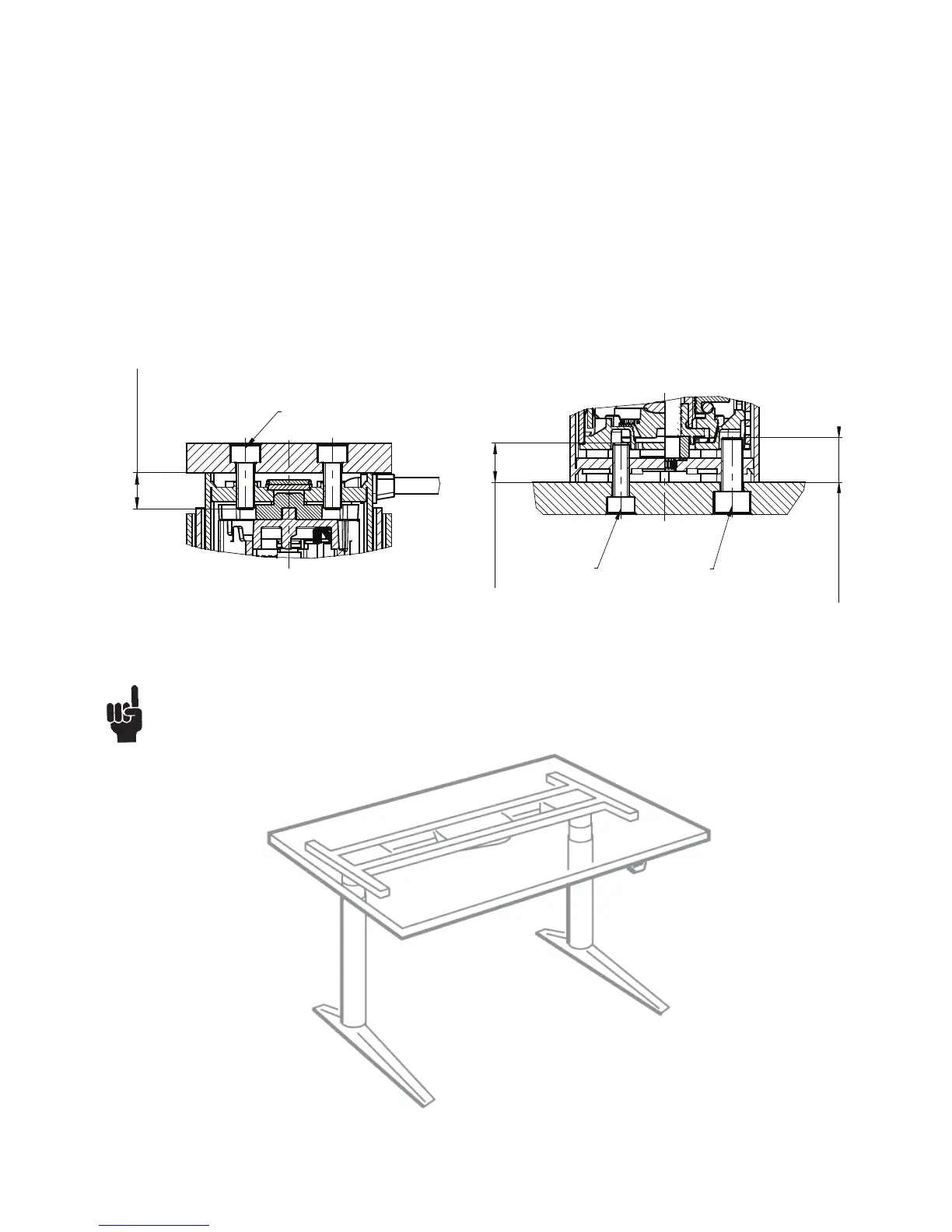

(Example of how to mount the DESKLINE
®
system)
