Page 15 of 36

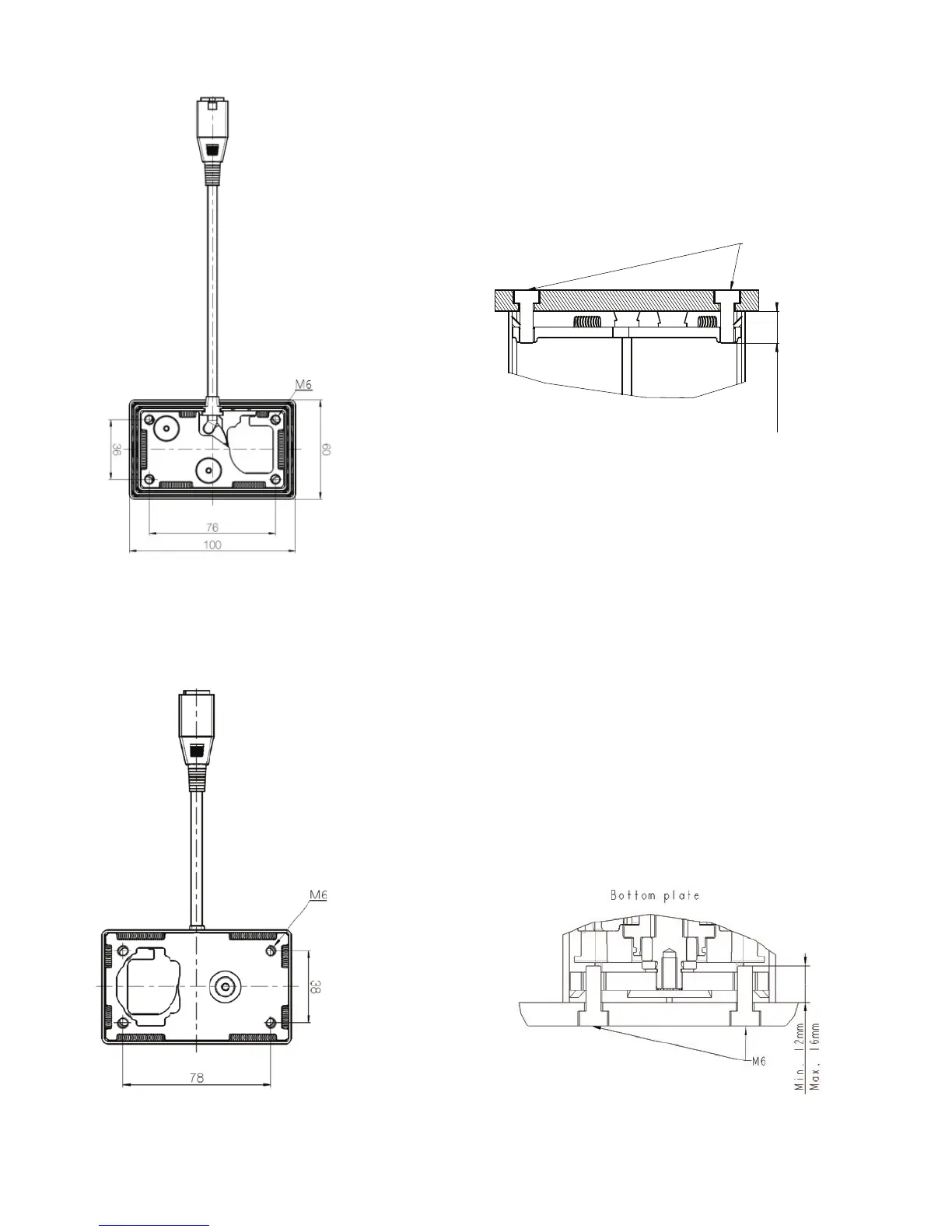

Mounting guidelines for the column DL12
Mounting foot
The DL12 is supplied with 4 x M6 threaded holes. We advise you to use screws of a
good quality min. 8.8 and of a suitable length. The length needs to be minimum 9 mm.
The screw torque must not exceed 10 Nm in the bottom plate thread.
The holes in the foot ought to be sufficiently larger than ø6 so that it is possible to
bring the foot to a level line at assembly/mounting of the table.
Mounting top
The top of the column is supplied with 4 x M6 threaded holes meant for mounting
onto the desk frame. We advise you to fasten the desk frame by means of 4 x M6
screws of a good quality (min. 8.8) and of a suitable length, minimum 12 mm.
The screw torque must not exceed 10 Nm.
Use all 4 threaded mounting holes M6 for screws. Thrust moment is 10 Nm
Drawing No.: DL12_SKREWDEPTH
Min. 12mm
Drawing No.: DL12_SKREWDEPTH
Max. 16mm
SCALE 3:10
SECTION XSEC0001-XSEC0001
SEE DETAIL A
