JUMBO
TM
| 48
Recommendations
The purpose of using learn mode function is to adjust the lift to no more than 1.5 times the max. load.
The actuator will not stop exactly at the load it has been adjusted to as the actuator uses less current
when its components have been run in. When the max. current value has been registered using the
learn mode function, the control box will be able to use max. current +10 %. This ensures that the lift is
capable of lifting the set load, however it cannot lift more than 1.5 times of the set load.
When registering current limits, be aware to use a defined set of actuator and control box
The ambient temperature must be approx. 20 ºC
The difference between the highest and lowest load must not be more than max. 10 %
To activate the learn mode function, use the special hand control (HB7x235-00)
If an actuator or CBJ Care is exchanged, it is necessary to reset the max. load to ensure the correct cut-off
value for the new system
Always use fully charged batteries for learn mode procedures
A max. cut-off value of 11 Amp can be registered (stored)
The tolerance for preset current cut-off is: +/- 1 Amp
The current cut-off value can be reset by means of the learn mode function, however this is not in
accordance with EN10535

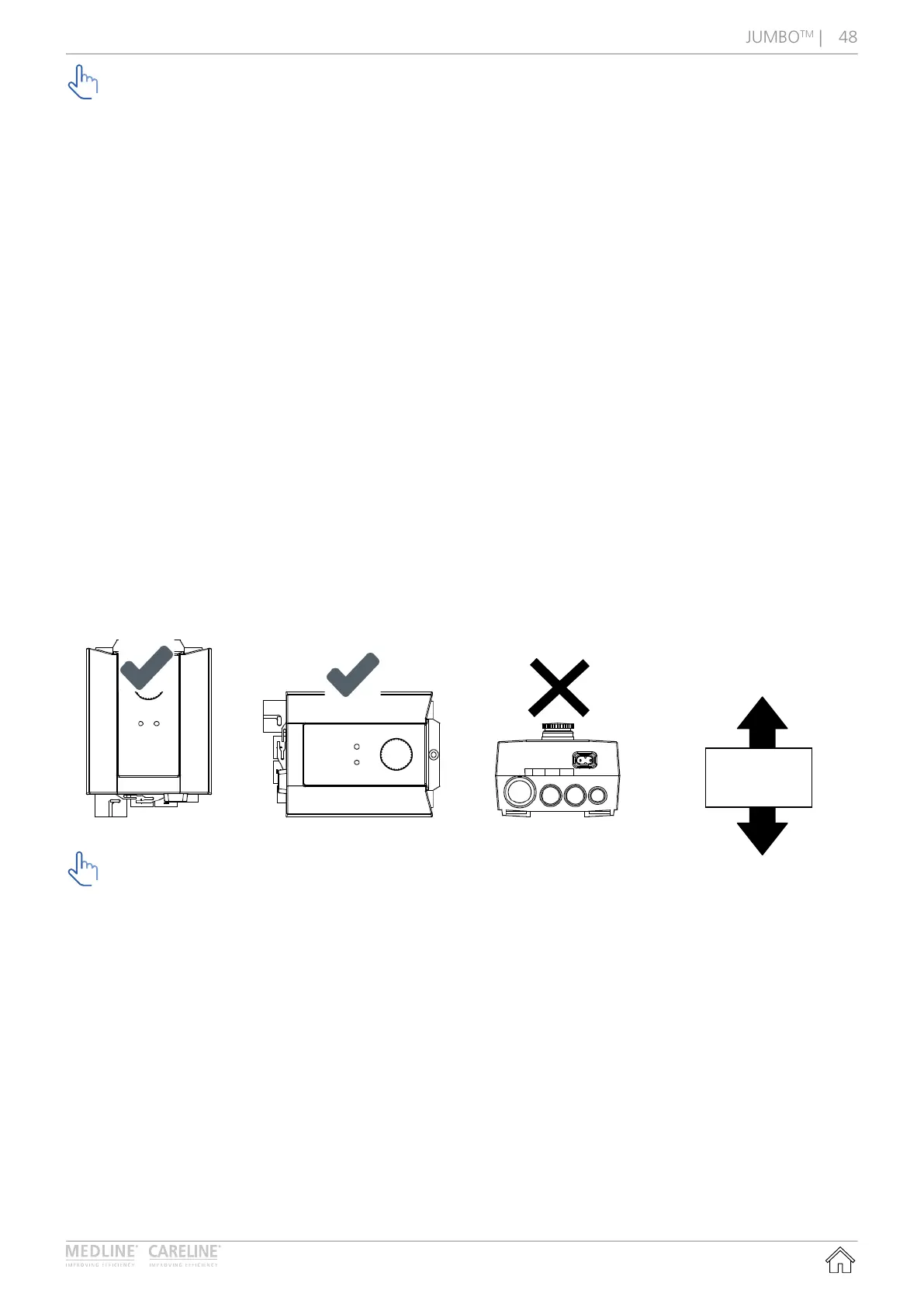

Mounting of CBJ Care
Recommendations
Special care should be taken when mounting the CBJ Care.
As long as the the CBJ Care is mounted correctly then the CBJ Care complies to IPX4. If the CBJ Care is
mounted incorrectly then water will gather around the screw holes resulting in non-compliance with IPX4!
If the control box is equipped with emergency stop, the stop button must be activated in cleaning situations
in order to comply with IPX4.
The battery pack BAJ or BAJL must NOT be removed in cleaning situations, doing so could result in non-
compliance with IPX4.
If the CBJ Care is fitted with external charger option (DC power connector), the protection plug ex.
00918174 must always be inserted to ensure IP protection, if the port is not used.
IP rating only applies when the battery is connected to the control box.
UP
DOWN
DOWN
