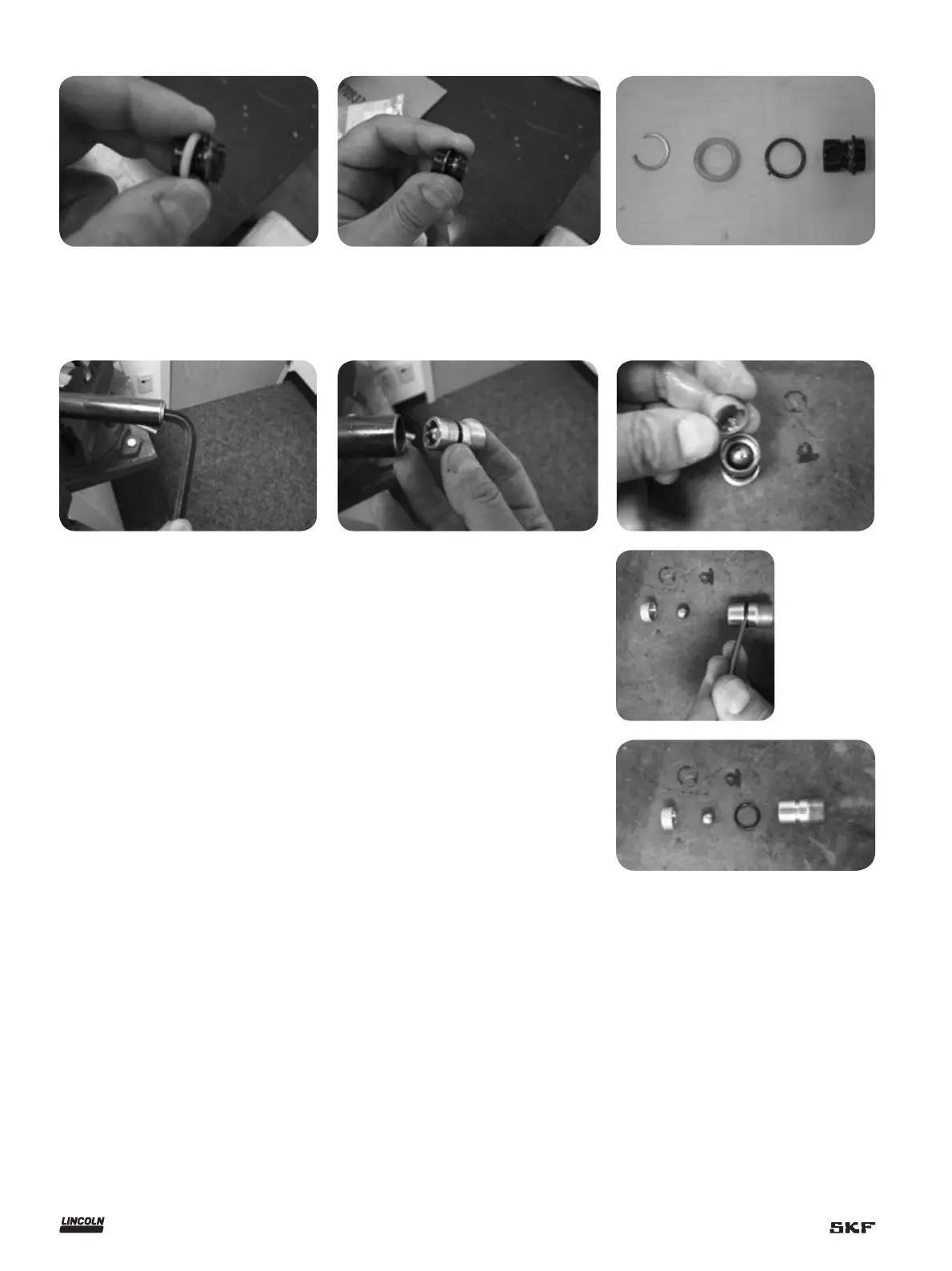

43 Remove O-ring (Item 10c). 44 Remove backup washer (Item 10b). 45 View of upper bushing and seals (Items
10-10d).
46 Loosen check seal housing (Item 27)
with 3/8 Allen wrench. (Reassembly
torque: 20-25 ft. lbs. (27.1 - 33.9 Nm).)
47 Check seat housing assembly (Item 27)
and associated parts removed. (Reas-
sembly recommendations: replace
O-ring seal (Item 26). Apply Loctite 242
or equivalent to check seat housing
threads.)
48 Remove ball cage (Item 24), check ball
(Item 25) and O-ring seal (Item 26) from
check seat housing (Item 27).
16
