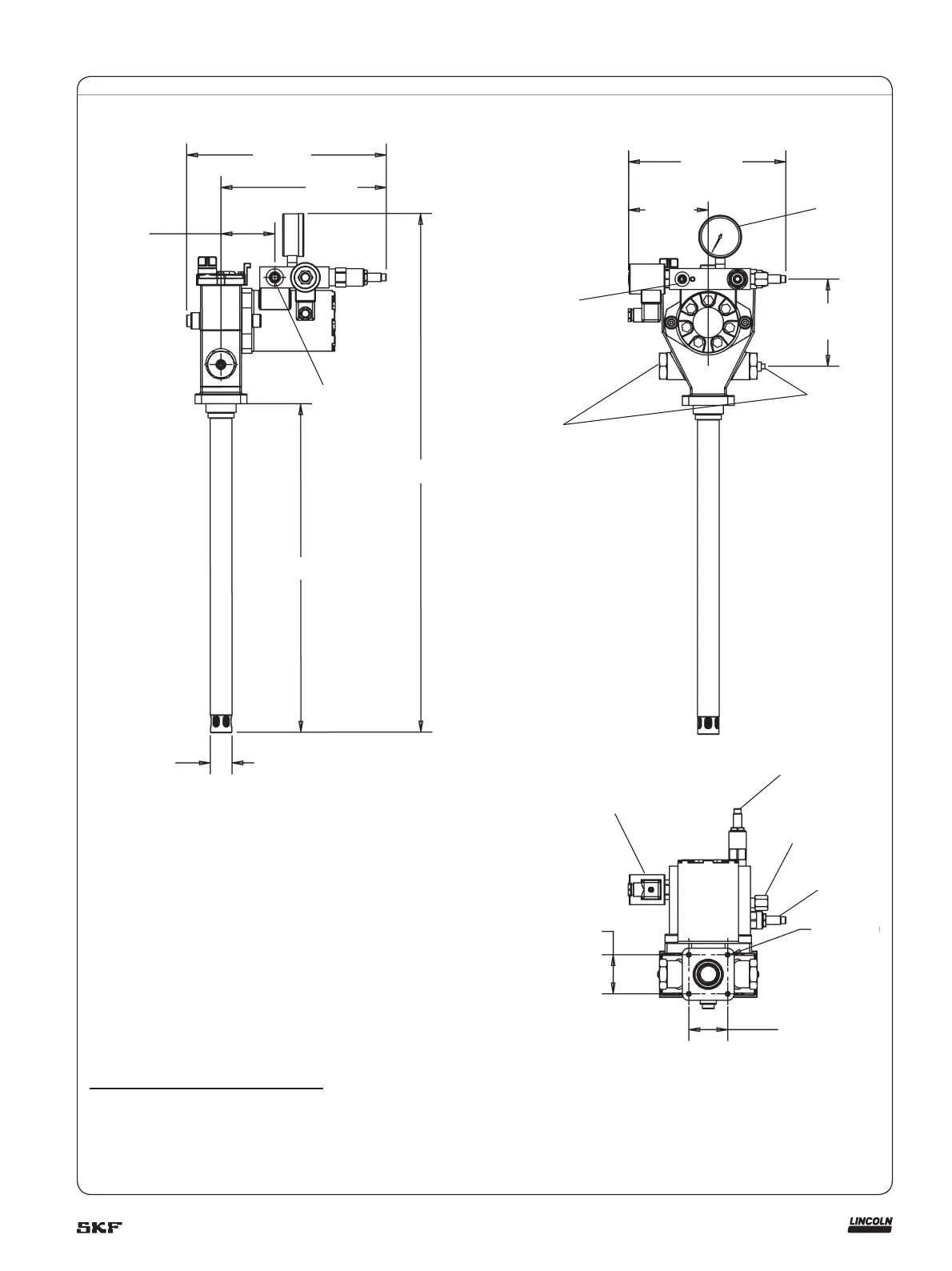

Fig. 5
Dimensions
3.11 in.
(79 mm)
11.53 in.
(293 mm)
9.55 in.
(243 mm)
3
B
A
1.25 in.
(32 mm)
9.08 in.
(231 mm)
4.60 in.
(117 mm)
5.03 in.
(128 mm)
8
2
1
5
6
4
7
2.25 in.
(57 mm)
2.25 in.
(57 mm)
(4x) / -20
threads
1
4
1 1/4 NPTF Pump Outlets
2 SAE 4 Inlet Port
3 SAE 6 Tank Port
4 1/4 NPTR Orifice fitting for
vent valve port
5 Solenoid Valve
6 Pressure Reducing Valve
7 Flow Control Valve
8 Pressure Gauge.
Dimensions
Model
Dim. “A”
(in. (mm))
Dim. “B”
(in. (mm))
85480 27.50 (699) 38.56 (980)
85481 19.00 (483) 30.06 (764)
85482 34.00 (864) 44.94 (1142)
85483 13.69 (348) 24.75 (629)
274055 19.00 (483) 30.06 (764)
7
