13
2022-11-28
lindab | installation
We reserve the right to make changes without prior notice

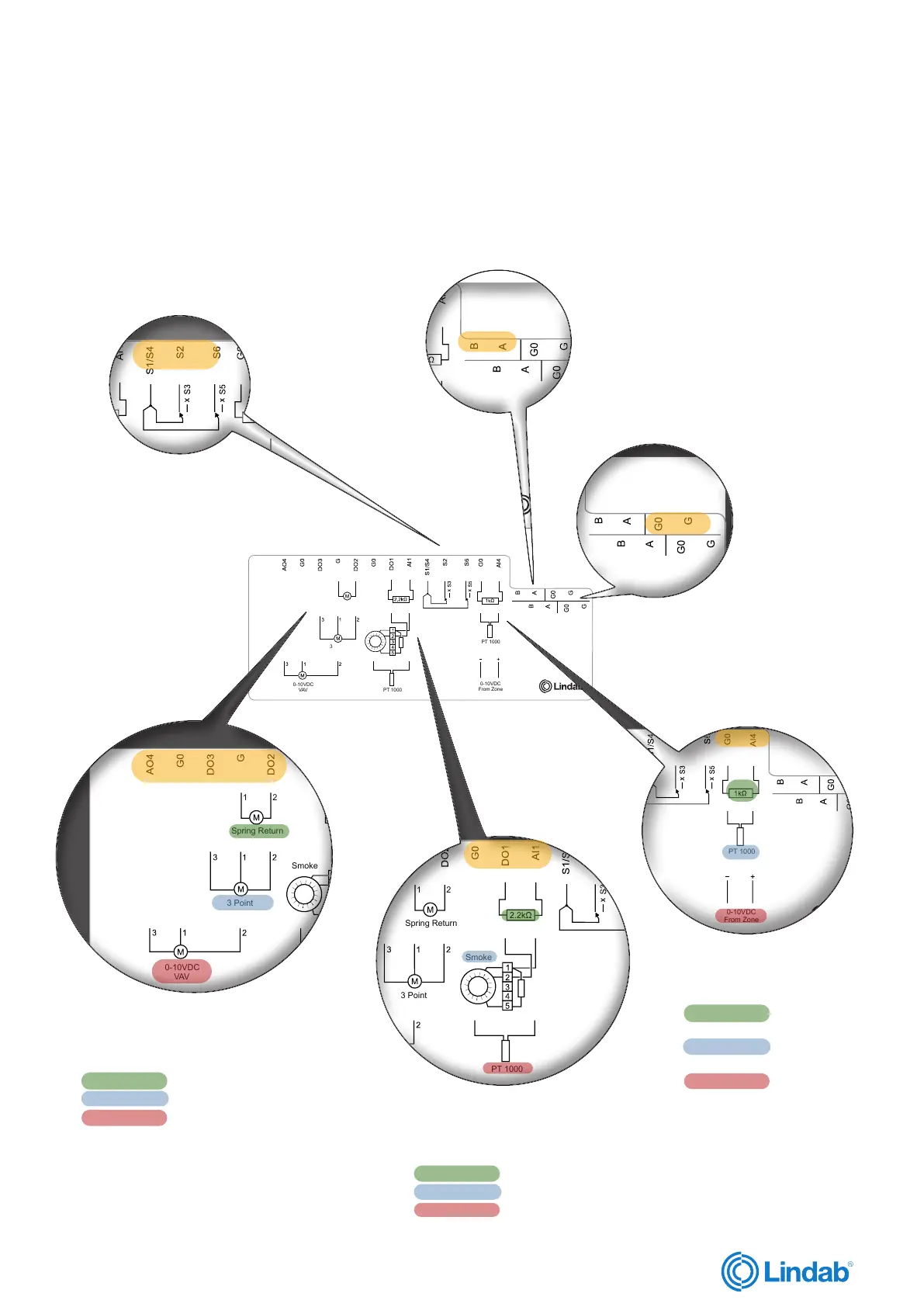

FireSystemPro Damper unit
Circuit card connections
DAMPER CONNECTION
Choose one alternative
• Alternative 1: Fire damper
• Alternative 2: Smoke control damper
• Alternative 3: VAV damper
SENSOR CONNECTION
Choose one alternative
• Alternative 1: Remove if alt.1 or alt.2 is connected
• Alternative 2: Smoke detector
• Alternative 3: Temperature sensor
END SWITHCES
End switches for dampers
POWER24V
Power IN and OUT
COMMUNICATION
IN and OUT
REGULATORS
Choose one alternative
• Alternative 1: Remove if alt.1
or alt.2 is connected
• Alternative 2: Temperature
sensor
• Alternative 3: Room regulator
Note: At delivery, the unit is equipped with a 2.2 kΩ resistor mounted between terminals DO1 and AI1 and a 1 kΩ resistor
between G0 and AI4. The configuration of the in- and outputs are made from the Pro-M master unit.
