PRO-M
Master unit
53
4
2,2 kΩ
1 2
+ - + -
PRO-SDD
Smoke duct detector
AO4
G0
S6
S2
S1 / S4
AI1
DO1
G0
DO2
G
DO3
G0
AI4
Smoke
2.2 kΩ
1
2
3 4 5
18
2022-11-28
lindab | installation
We reserve the right to make changes without prior notice
FireSystemPro Smoke detector
Pro-SDD smoke duct detector
Pro-SDD is an optical smoke detector for duct mounting in all types of premises and reacts to visible smoke particles. It con-
sists of a detector head and a base, that comes with a bayonet mount to simplify service and maintenance.
One smoke detector per Pro-S damper unit is allowed
Note:
Pro-M and Pro-S circuit cards have one 2.2 kΩ resis-
tors on each smoke detector connection.
When connecting a smoke detector to master/damper
unit, remove the resistor from the unit’s circuit card and
add it to the smoke detector.
The resistor is still required on the smoke detector,
see illustration to the right.
Click here to
go directly to
the technical
datasheet for
PRO-SDD

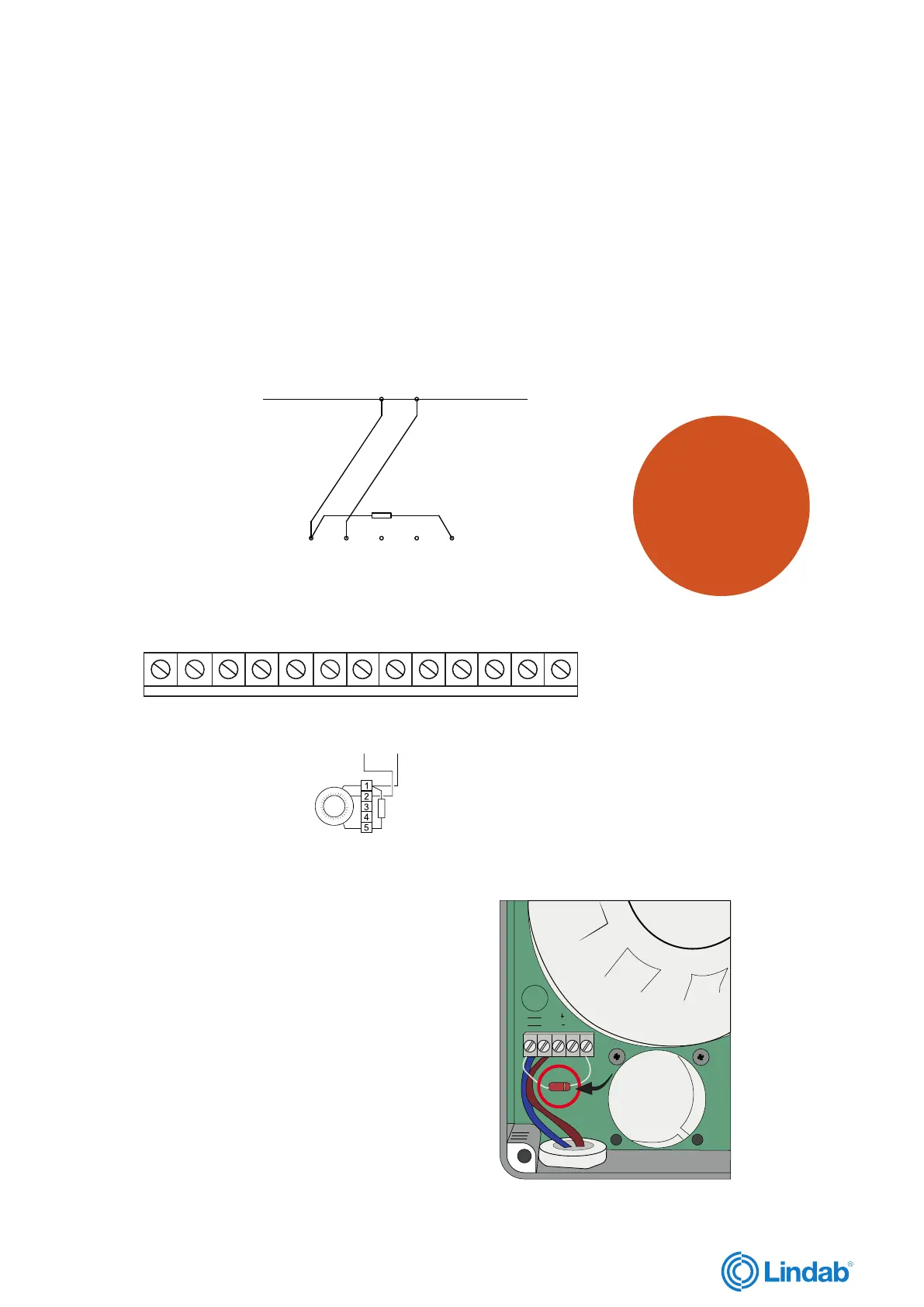

Connect Pro-SDD to Pro-M master unit
Connect Pro-SDD to Pro-S damper unit
Installation and wiring
Move the resistor from Pro-M/Pro-S to Pro-SDD
