Ø5.7...Ø6.
Ø4.8...Ø5.
167
153
138
48.5
M20
M16
118
∼130

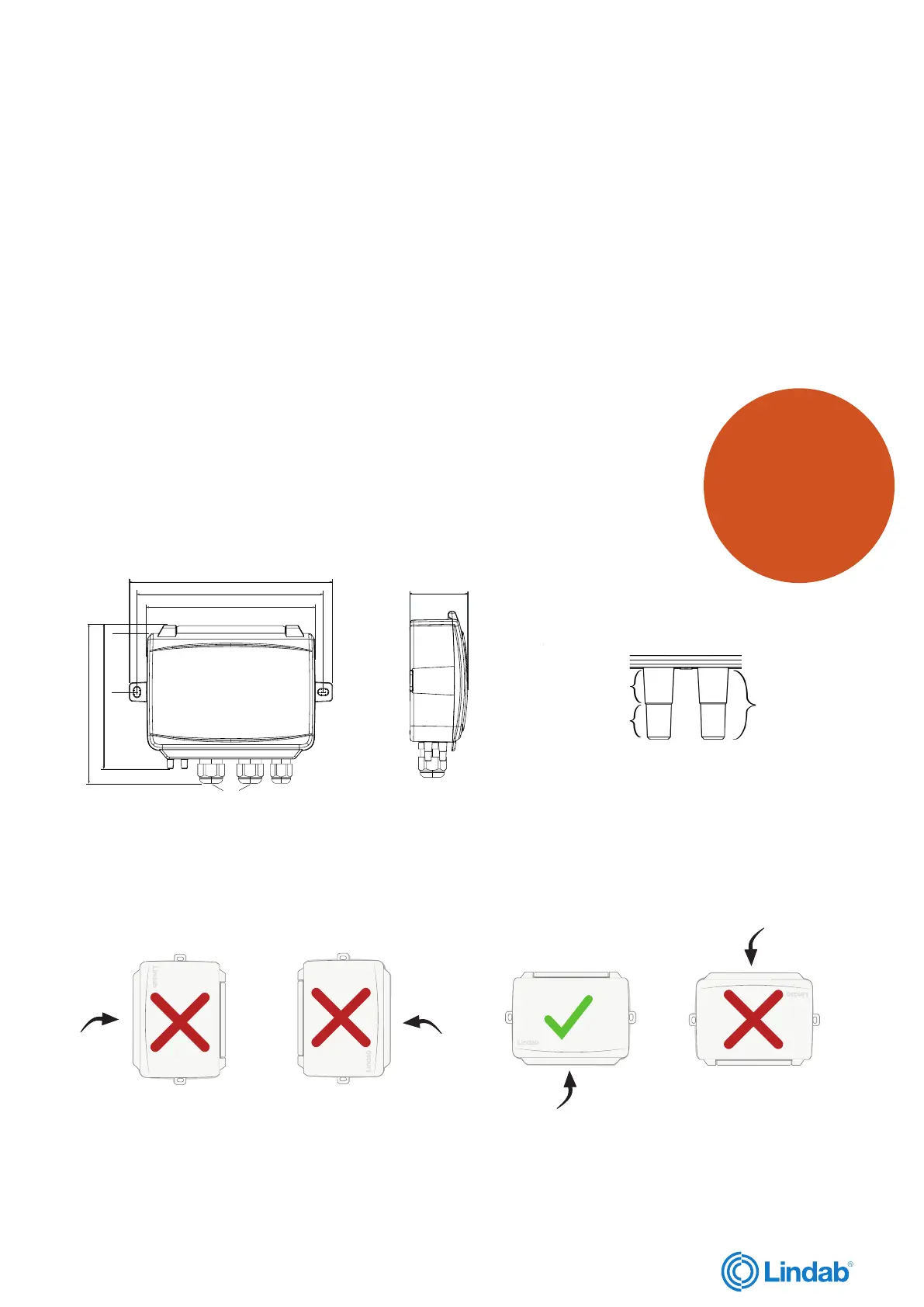

Dimension drawing of Pro-PDT, measures in mm
Ø5.7...Ø6.3
Ø4.8...Ø5.2
46
167
153
138
48.5
M20
M16
118
∼130
46
167
153
138
48.5
M20
M16
118
∼130
16
2022-11-28
lindab | installation
We reserve the right to make changes without prior notice
FireSystemPro Pressure transmitter
Installation and wiring
The unit can be mounted either vertically or horizontally. If it is installed in a humid environment,
vertical mounting is recommended to allow moisture to escape.
Installing the product is made easily since the unit has three separate cable inlets, a large angled
terminal and generous space. The communication configuration is both flexible and easy as it can
either be done via a menu system, which is easy to navigate, or via Modbus.
Pro-PDT pressure transmitter
PRO-PDT is a pressure transmitter used for the Fire System Pro. It is equipped with one pressure sensor, two universal
inputs, two universal outputs and an RS485 port for Modbus communication. PRO-PDT is especially well suited as
distributed I/O module for air handling unit controllers.
The transmitter operates as a Modbus slave, relieving the controller of an analogue pressure input, two universal inputs and
two universal outputs. This means that less wiring is required, reducing both material costs as well as the amount of work
needed.
Due to the use of MEMS dual-chip medical grade sensor the transmitter offers very high accuracy and excellent long-term
stability.
Click here to
go directly to
the technical
datasheet for
PRO-PDT
Mount the pressure transmitter on a stable, vibration-free surface. The unit can be mounted horizontally (on a table, for example)
with the lid facing up or vertically with the cable front of the unit pointing down (see image below).
Mounting
Cable
connection
Cable
connection
Cable
connection
Cable
connection
Attention! If the unit is installed in a humid environment, install it vertically with the cable front of the unit pointing
down, to allow moisture to escape.
