10.4 Mount the Doorbell on a Wooden Surface
If you’re mounting the doorbell on a wooden surface, you don’t need
to pre-drill pilot holes. Use the provided screws to secure the mounting
bracket on the wall, the screw hole positioning card indicates the
position of the screw holes.

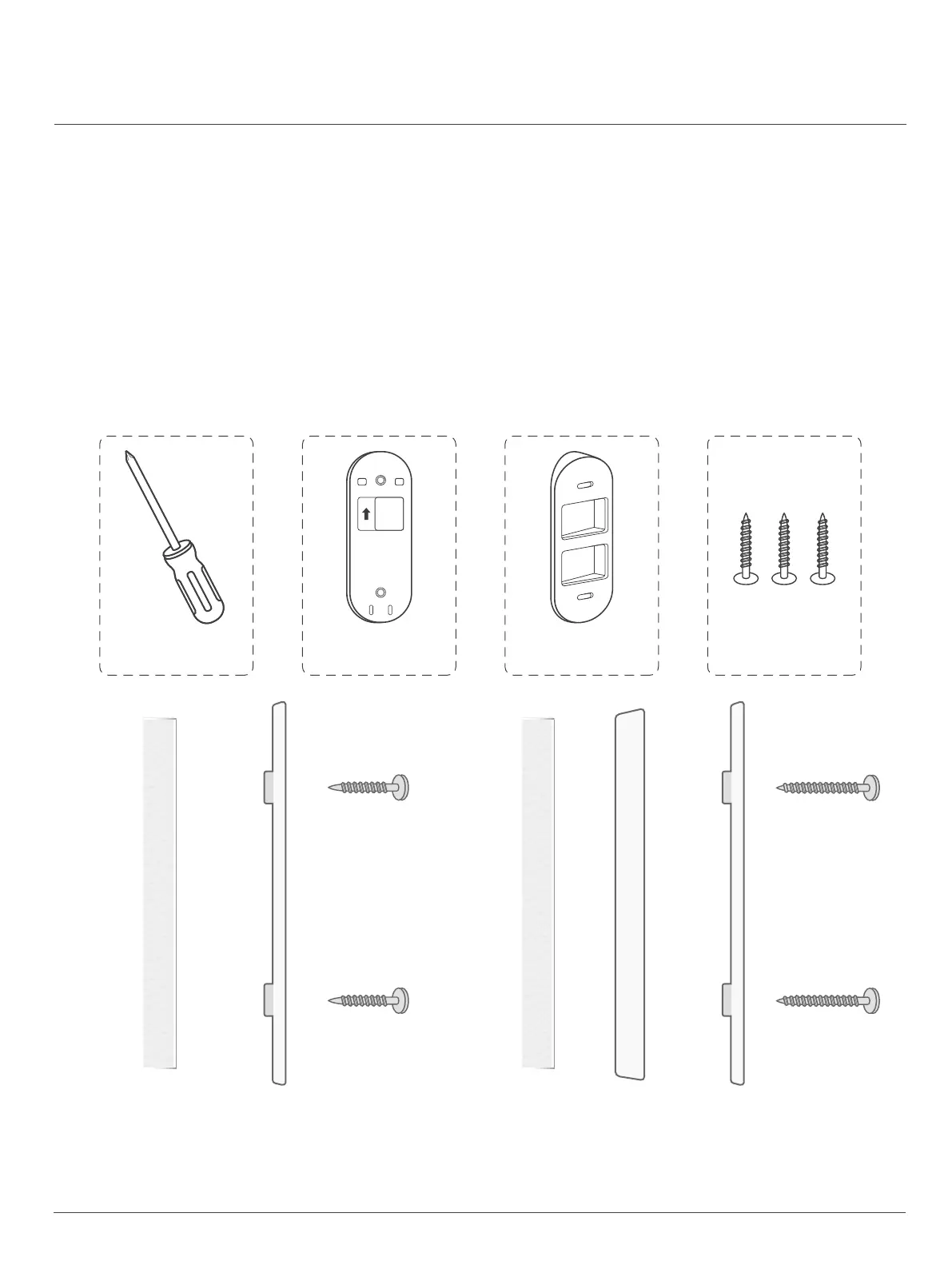

Phillips-Head Screwdriver
(not provided)
Mounting Bracket 15° Mounting Wedge
(Optional)
Screw Packs
What you need: Screwdriver, Mounting Bracket, 15° Mounting Wedge
(Optional), Screw Packs
Without 15° Mounting Wedge With 15° Mounting Wedge
- - - - - - - -
- - - - - - - -
Wall Mounting Bracket
- - - - - - - - - - - -
- - - - - - - - - - - -
Wall Mounting BracketMounting Wedge
