Line 6 Helix Troubleshooting Instructions

Line 6 Customer Service
Helix Floor Expression Pedal
Troubleshooting Instructions Rev A
Document 90-20-0505
Line 6 Page 6 of 13 5/9/2017

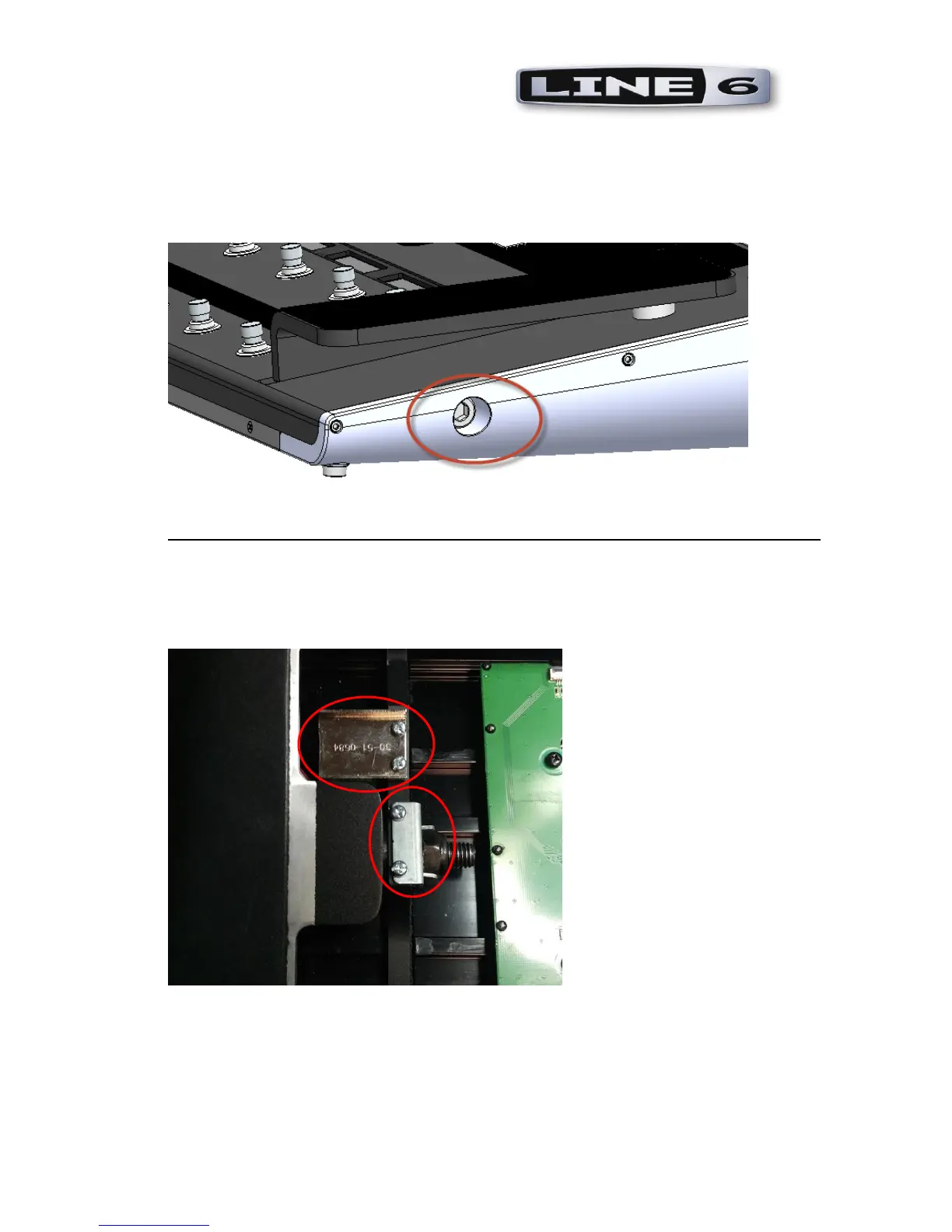

2.) Using the M10 Allen wrench supplied for pedal adjustment, loosen and fully
remove the pedal axle bolt (30-00-0382):
3.) If you are experiencing problems with your pedal squeaking (Steps 3 & 4):
Remove four M3 screws, pedal reflector (30-51-0684) and mounting washer (30-
51-0686) from the pedal. Remove pedal (30-51-0666) and plastic shoulder
washers (30-03-0069, 30-03-0074, 30-03-0074) from unit.

Line 6 Helix Specifications

General

Type	Multi-Effects Processor
Inputs	1 x XLR (mic)
Outputs	1 x 1/4" (headphones)
Display	6.2" LCD
Footswitches	12
Connectivity	MIDI In/Out, USB, S/PDIF
Power Supply	Internal power supply (100-240V)
Amp Modeling	Yes
Software	Helix Edit
Expression Pedal	Built-in
USB	Yes
Presets	1024
Looper	Yes (up to 60 seconds)
