Line 6 Helix User Manual

14
Most model categories include subcategories. For example, eects can generally
be mono or stereo (stereo models display the icon). Amp+Cab and Amp mod-
els have Guitar and Bass subcategories. Cab models have single and dual sub-
categories.
Turn the joystick (or move it up and down) to select items in a list.
Press the joystick (or move it right) to view a category or subcategory’s con-
tents.
Move the joystick left to go back one column.
IMPORTANT! If you encounter items in the list that are grayed out or un-
available, this means the current path (1 or 2) cannot accommodate that
category, subcategory, or model. See "Dynamic DSP"
2. Using the joystick, select the desired category, subcategory,
and model.

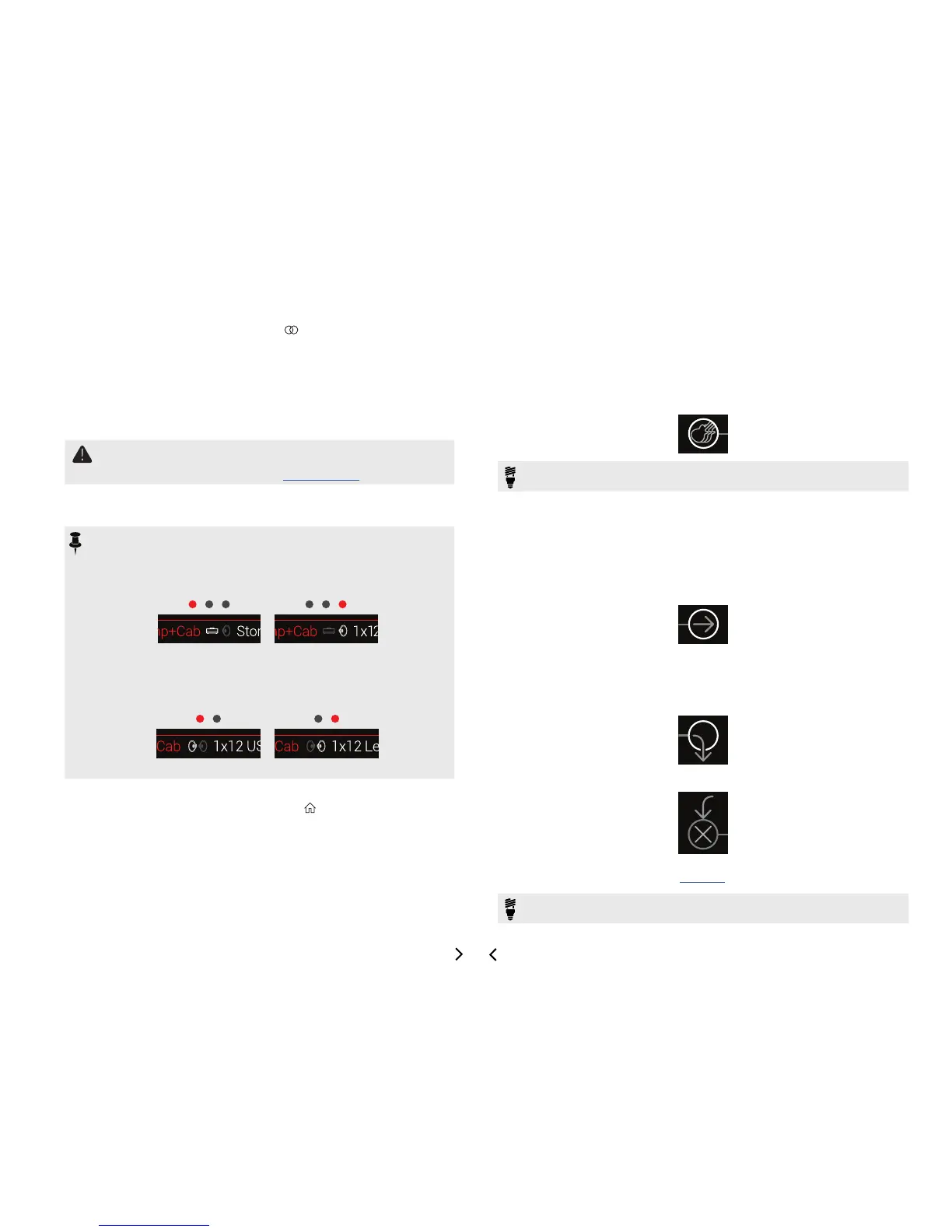

NOTE: Amp+Cab and Cab > Dual blocks are special in that they repre-
sent two models within a single block. To change the amp model in an
Amp+Cab block, press <PAGE until the amp icon is white and turn the
joystick. To change the cab model, press PAGE> until the cab icon is
white and turn the joystick.
To change the rst cab model in a Cab > Dual block, press <PAGE until
the left cab icon is white and turn the joystick. To change the second
cab model, press PAGE> until the right cab icon is white and turn the
joystick.
3. To close the model list, select an item in the far right column
and press the joystick again (or press ).
Choosing an Input
Move the joystick left to select an Input block and turn the joy-
stick.
Normally you should select “Multi,” which includes three simultaneous inputs: Guitar,
Aux, and Variax.
TIP: To view a list of available inputs, press the joystick.
Choosing an Output
Move the joystick right to select an Output block and turn the joy-
stick.
Normally you should select “Multi,” which includes four simultaneous pairs of outputs:
1/4", XLR, Digital, and USB 1/2.
If Path 1 doesn't have enough block locations or DSP to accommodate your tone, it
can be routed to Path 2:
Select Path 1’s output block and turn the joystick to select Path
2A.
Path 2’s Input block displays an arrow, indicating it is being fed by Path 1.
If Path 2 has two input blocks, you may select either Path 2A or 2B, or even split your
signal further to both 2A and 2B. See "2 into 1" for an example.
TIP: To view a list of available outputs, press the joystick.

Line 6 Helix Specifications

General

Type	Multi-Effects Processor
Inputs	1 x XLR (mic)
Outputs	1 x 1/4" (headphones)
Display	6.2" LCD
Footswitches	12
Connectivity	MIDI In/Out, USB, S/PDIF
Power Supply	Internal power supply (100-240V)
Amp Modeling	Yes
Software	Helix Edit
Expression Pedal	Built-in
USB	Yes
Presets	1024
Looper	Yes (up to 60 seconds)
