Line 6 Confidential Page 2 of 10 7/5/2007
1. “NOT INSTALLED” COMPONENTS: Do not install the following components:
H1, H2, R150, R131, R135

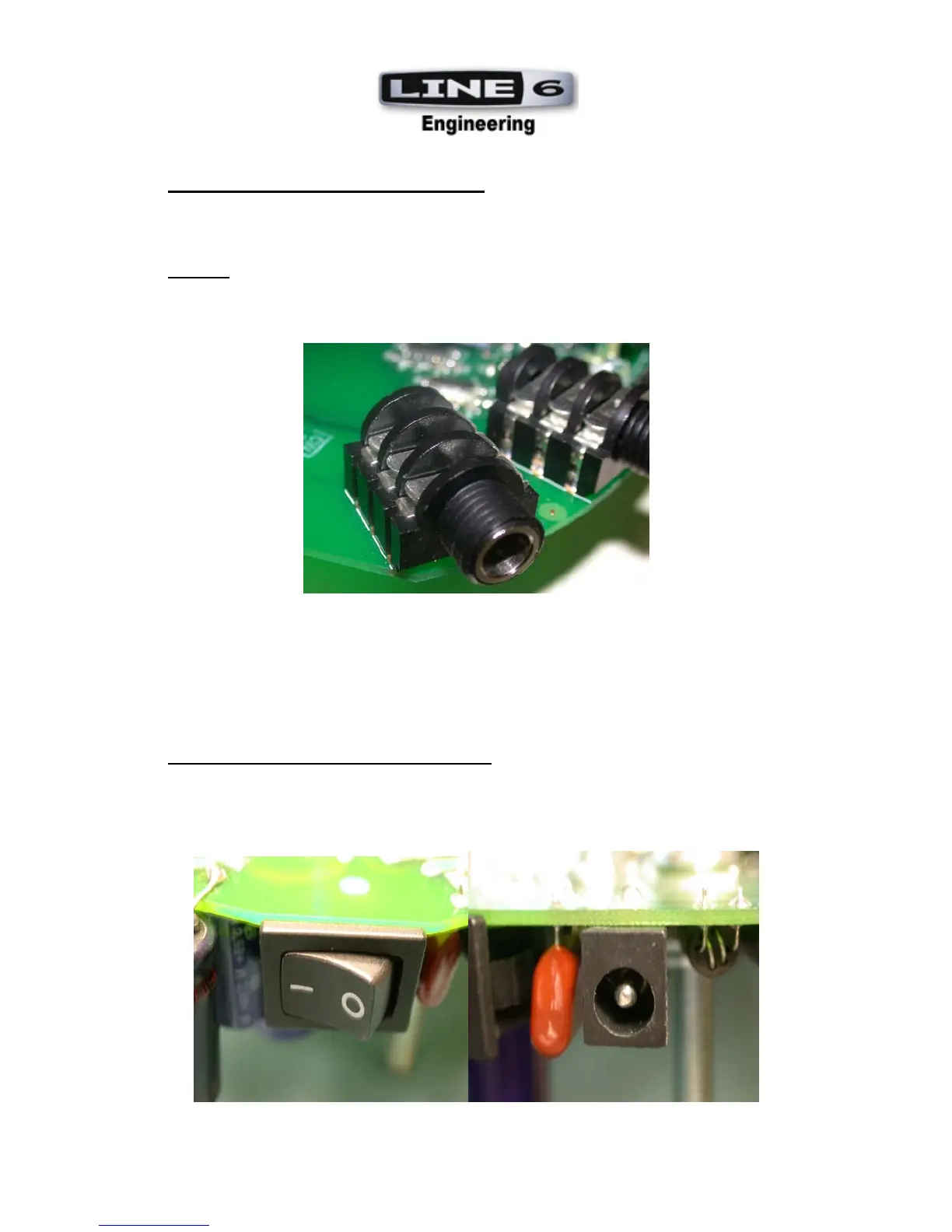

2. JACKS: Make sure ALL jacks J1-2, J10-11 (P/N 21-00-6616) are mounted flush against
the PCB and lined up with silkscreen outline within +/-1 degree of accuracy. ALL jacks
are mounted on the bottom side of the PCB.
3. POWER SWITCH and POWER JACK: Power switch PSW1 (P/N 24-24-2107) and
the power jack J7 (P/N 24-00-0014) are both mounted on the bottom side of the PCB
with the switch and jack mounted flush to the PCB. The front edge of the switch body
should just fit flush against the board edge.

Line 6 POD X3 Specifications

General

Type	Multi-Effects Processor
Amp Models	78
Effects Models	98
Display	LCD
Technology	Digital
Inputs	1 x 1/4" Guitar, 1 x XLR Mic, 1 x 1/4" Aux
Outputs	1 x XLR
MIDI	In/Out
USB	Yes
Power Supply	9V AC adapter (included)
