■ LR360 Interface

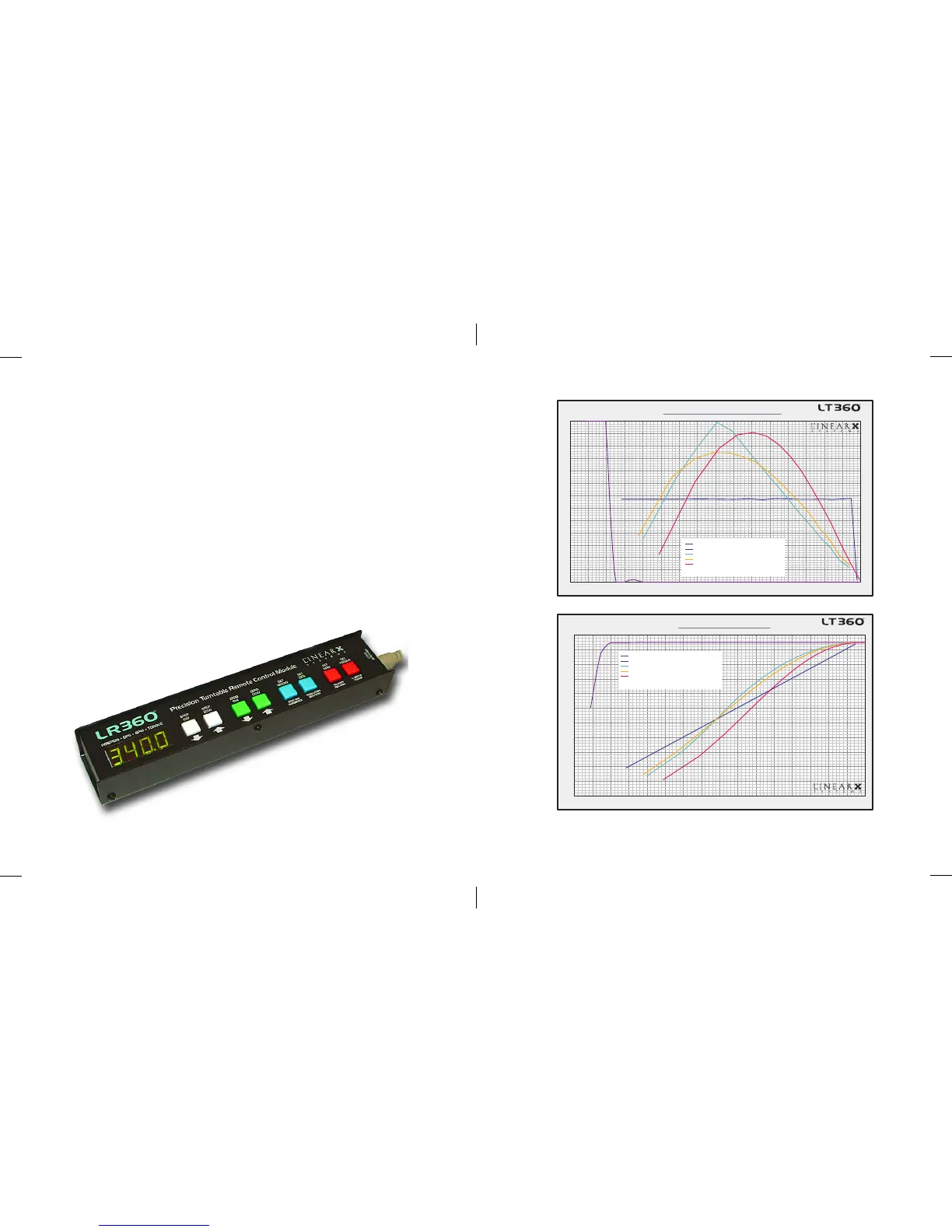

This Mini-DIN connector (PS2) is used to connect the LR360
Remote Control Module (shown below).
The LR360 provides a means to locate the control switches and
display farther away from the LT360 turntable. This can be useful if
the readouts on the front of the unit are not visible or another
means of backup control is desired.
The LR360 remote must be connected to the LT360 turntable
before the power is turned on. When power is applied, the LT360
searches for the presence of the LR360. If found, its display
controller will be initialized for use rather than the front panel
controls of the LT360. Otherwise the LT360 controls are used.
51
0 Sec 1m 2m 3m 4m 5m 6m 7m 8m 9m 10m 11m 12m 13m 14m 15m 16m
M/S
2
0
1
2
3
4
5
6
7
8
9
10
11
12
13
Acceleration vs Time
(71.2)
Acc_SIN3 16
Acc_SIN2 16
Acc_IMPL 16 @ 1RPM/1M
Acc_FLAT 16
Acc_RAMP 16
Sun 11:58 am
Mar 19, 2006
≥ 0.1 Degree Movement
Precision Turntable
0 Sec 1m 2m 3m 4m 5m 6m 7m 8m 9m 10m 11m 12m 13m 14m 15m 16m
M/S
0
10m
20m
30m
40m
50m
60m
70m
80m
90m
100m
110m
Velocity vs Time
Vel_SIN3 16
Vel_SIN2 16
Vel_IMPL 16 @ 1RPM/1M
Vel_FLAT 16
Vel_RAMP 16
Sun 11:58 am
Mar 19, 2006
Precision Turntable
≥ 0.1 Degree Movement
