■ Zero CW / CCW (Green SWs)
These two switches are used to move the platter to the origin (0.0) either by
clockwise (CW) or counter clockwise (CCW) rotation.
If the platter is already rotating pressing these switches will have no effect
until the active movement has completed.
Note: To abort / stop a rotation, press either Red swtich.
■ Set Origin (Blue SW)
This switch is used to change the origin to the current platter position. No
platter movement occurs.
When the switch is pressed, the display will flash "0.0". To change the origin,
while this switch is pressed, press either of the White Step switches. This
double switch action is required to prevent accidental changes to the origin.
If you do not press a White switch, the original position will be retained
when this switch is released.
■ Set Step Size DPS (Blue SW)
This switch is used to change the step size. When this switch is pressed, the
display will show the current step size. The step size can then be changed
up/dn by pressing the white Step buttons. Holding the Step buttons will
produce auto repeat. The minimum step size is 0.1 degrees.
49
0 Sec 25m 50m 75m 100m 125m 150m 175m 200m 225m 250m 275m 300m 325m 350m 375m 400m 425m 450m 475m 500m
M/S
0
10m
20m
30m
40m
50m
60m
70m
80m
90m
100m
110m

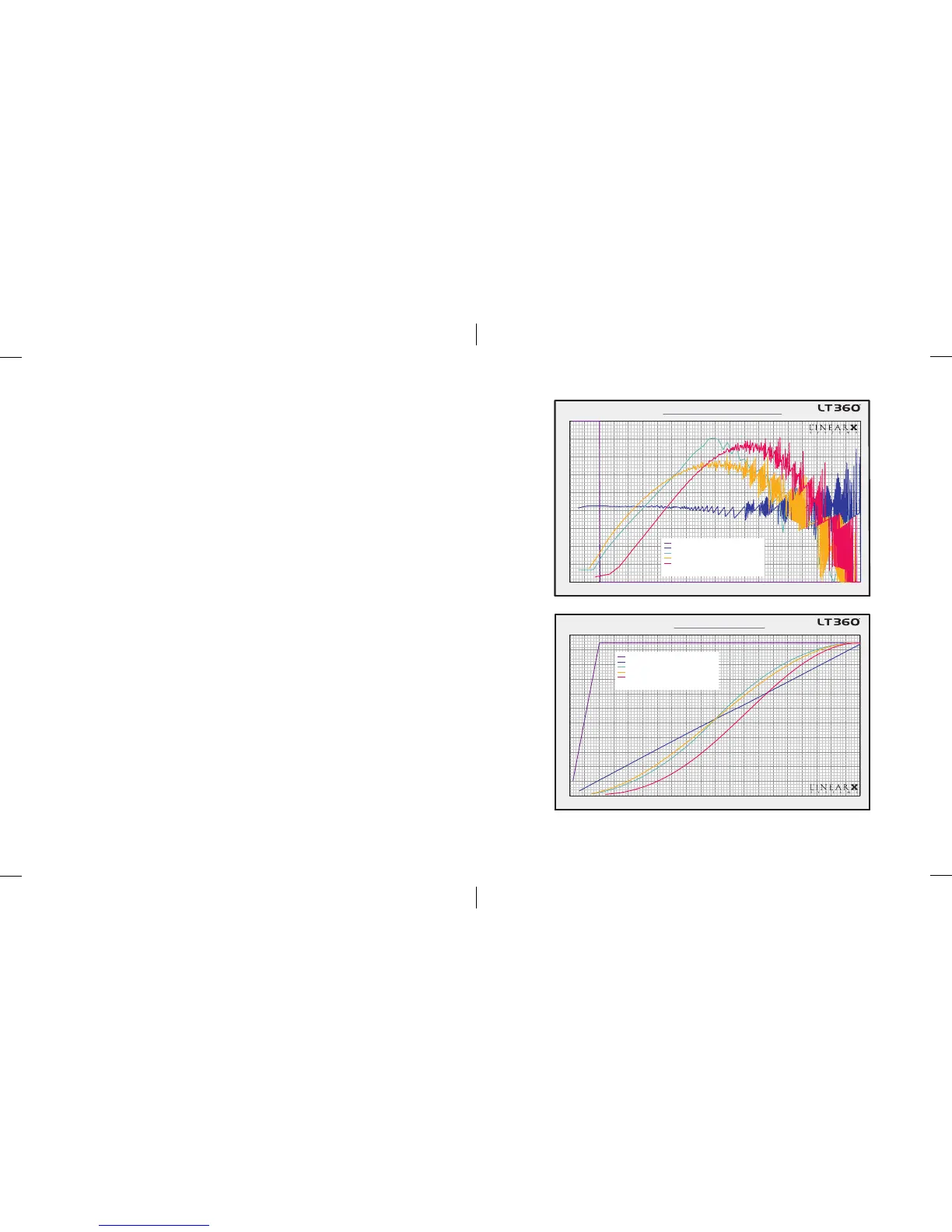

Velocity vs Time
Vel_SIN3 512
Vel_SIN2 512
Vel_IMPL 512 @ 1RPM/1M
Vel_FLAT 512
Vel_RAMP 512
Sun 11:58 am
Mar 19, 2006
Precision Turntable
≥ 3.2 Degree Movement
0 Sec 25m 50m 75m 100m 125m 150m 175m 200m 225m 250m 275m 300m 325m 350m 375m 400m 425m 450m 475m 500m
M/S
2
0
50m
100m
150m
200m
250m
300m
350m
400m
450m
Acceleration vs Time
Acc_SIN3 512
Acc_SIN2 512
Acc_IMPL 512 @ 1RPM/1M
Acc_FLAT 512
Acc_RAMP 512
Sun 11:58 am
Mar 19, 2006
(2.07)
≥ 3.2 Degree Movement
Precision Turntable
