Linhai ATV 260 Service Manual

CHAPTER 5 FINAL DRIVE ATV SERVICE MANUAL 09.0
CHAPTER 5 FINAL DRIVE. 5-
21

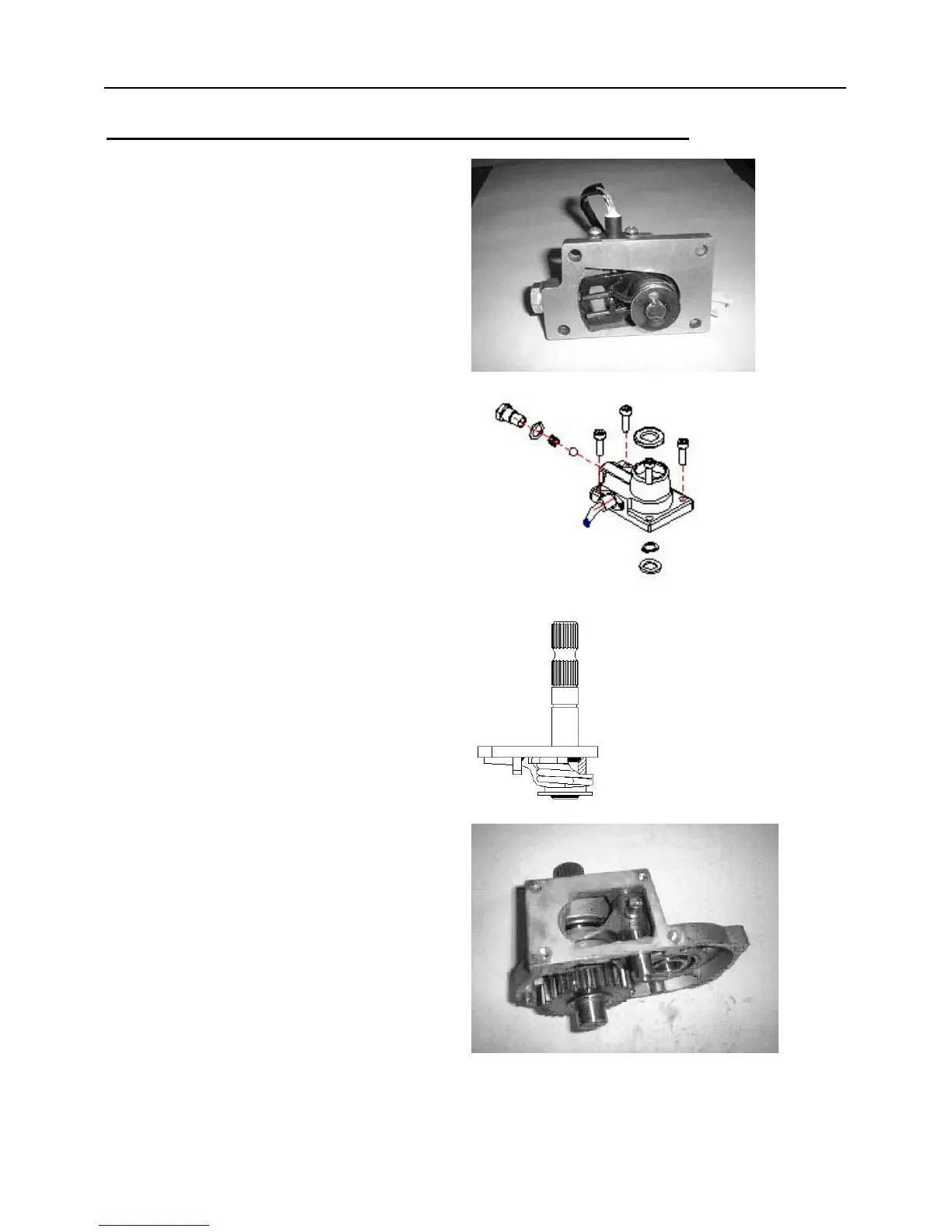

5.17 FRONT GEARCASE DISASSEMBLY/ INSPECTION
1. Drain and properly dispose of used oil.
2. Remove bolts and selector cover..
3. Remove screws and selector switch from
the selector cover.
4. Remove bolt, washer, spring and detent
ball from the selector cover.
5. Remove seal, washers, circlip and
selector shaft assembly from the selector
cover.
6. Remove bolts and diff case cover.
7. Remove pins, gear and selector rail.
