Linksys AC1750 User Manual

54
Troubleshooting
Linksys EA-Series

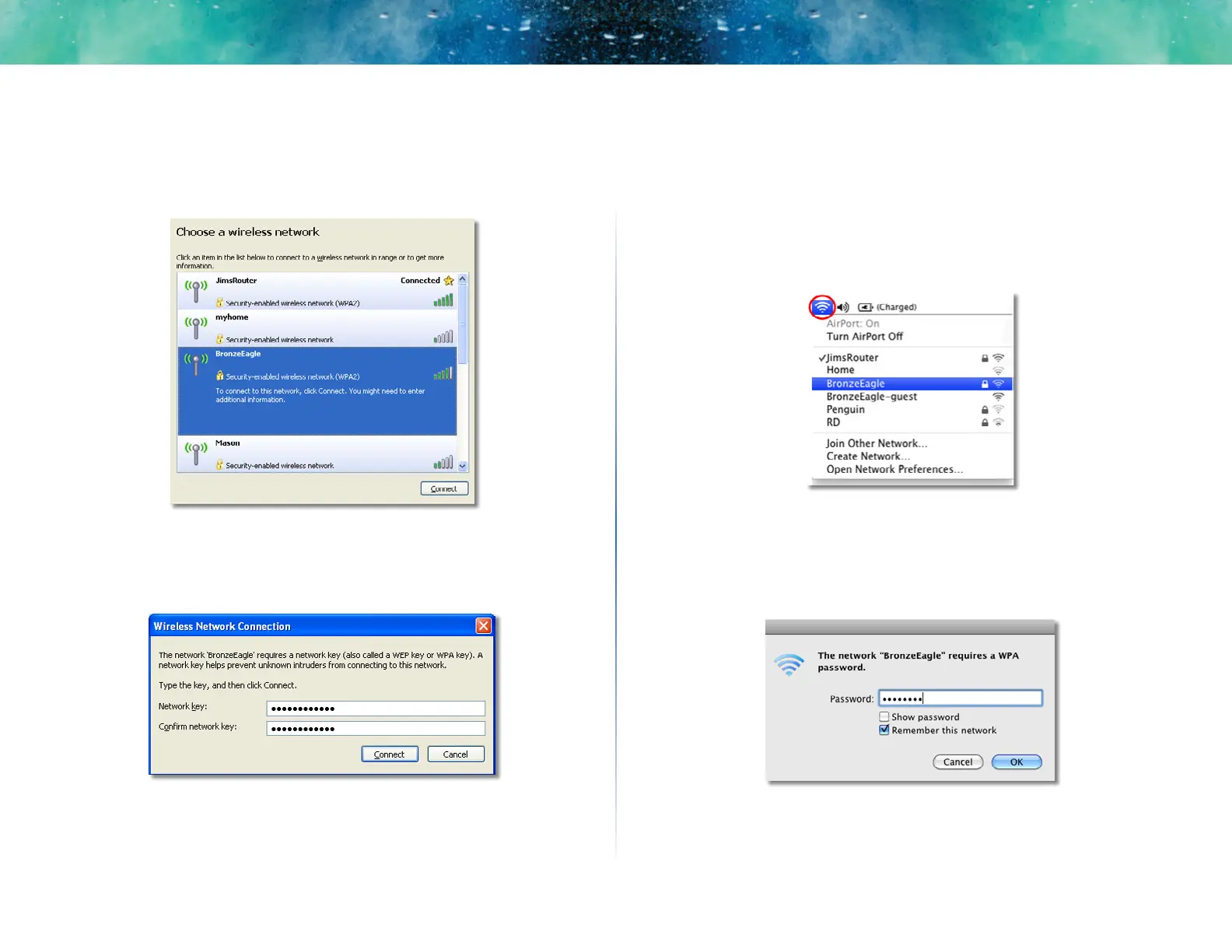

3. Click your own network name, then click Connect. In the example
below, the computer was connected to another wireless network named
JimsRouter. The name of the Linksys E-Series network, BronzeEagle in this
example, is shown selected.
4. If you are prompted to enter a network key, type your password (Security
Key) into the Network key and Confirm network key fields, then click
Connect.
Your computer connects to the network, and you should now be able to
access the router.
To fix the problem on Mac computers:
1. In the menu bar across the top of the screen, click the AirPort icon. A
list of wireless networks appears. Linksys Smart Wi-Fi has automatically
assigned your network a name.
In the example below, the computer was connected to another wireless
network named JimsRouter. The name of the Linksys E-Series network,
BronzeEagle in this example, is shown selected.
2. Click the wireless network name of your Linksys E-Series router
(BronzeEagle in the example).
3. Type your wireless network password (Security Key) into the Password
field, then click OK.

Linksys AC1750 Specifications

General

Brand	Linksys
Model	AC1750
Max Data Rate	1750 Mbps
Ethernet Ports	4 x Gigabit LAN, 1 x Gigabit WAN
USB Ports	1 x USB 3.0, 1 x USB 2.0
Memory	128 MB Flash, 256 MB RAM
Wireless Standards	802.11a/b/g/n/ac
Bands	2.4 GHz, 5 GHz
Wireless Speed	450 Mbps (2.4 GHz), 1300 Mbps (5 GHz)
Frequency Band	2.4 GHz, 5 GHz
Antennas	3 external antennas
Processor	dual-core
Security	WPA2 Personal, WPA2 Enterprise, WPA, WEP
Wi-Fi Technology	Dual-Band
Weight	1.43 lbs
