Linksys AC2600 User Manual

1
Linksys EA8500
Product overview
EA8500

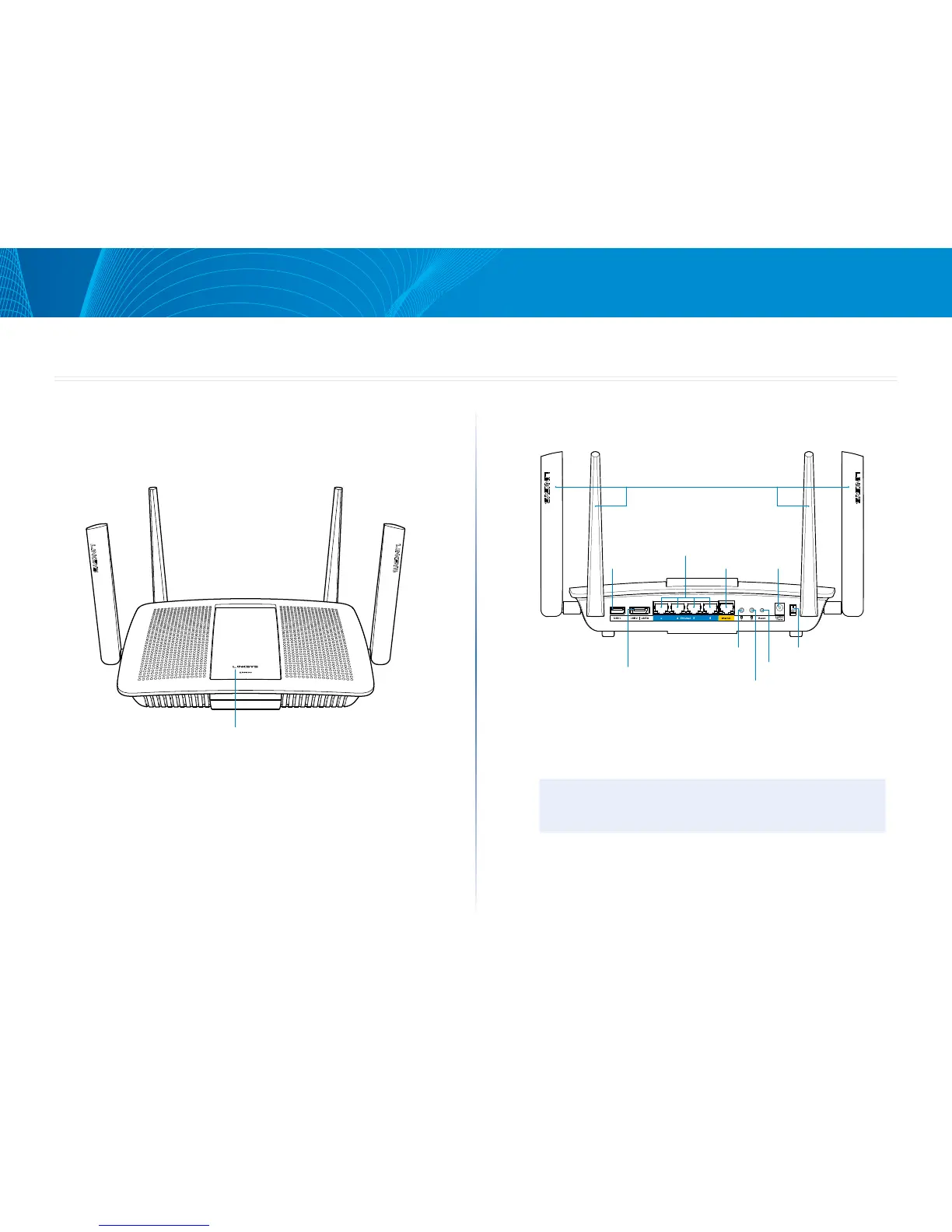

Front view
• Power Indicator — The Linksys logo stays on steadily while connected
to the Internet. It flashes or pulses slowly during bootup, self-testing and
firmware upgrades. It flashes quickly when indicating connection errors.
Back view
• Adjustable external antennas—This router ships with four adjustable
external antennas that should be connected to the router before
powering it on. To connect the antennas, twist the antenna clockwise
onto the antenna connector on the router.
NOTE
For best performance, position the side antennas vertically as
shown in the picture.
• USB 3.0 port—Connect and share a USB drive or USB printer on your
network or on the Internet.
• USB 2.0/eSATA combo port—Connect and share a USB/eSATA drive or
a USB printer on your network or on the Internet.
1
Product overview
<line drawing of top view page 1>
<line drawing of rear panel page 1>
<antenna-power drawing page 3>
<install INTERNET cable drawing page 3>
manual
Combo USB 2.0/
eSATA Port
Power Indicator
USB 3.0 Port
Internet Port Power Port
Wi-Fi On/Off
Button
Ethernet Ports
Wi-Fi Protected
Reset Button
Power Switch
4x Adjustable External Antennas
Setup Button
<line drawing of top view page 1>
<line drawing of rear panel page 1>
<antenna-power drawing page 3>
<install INTERNET cable drawing page 3>
manual
Combo USB 2.0/
eSATA Port
Power Indicator
USB 3.0 Port
Internet Port Power Port
Wi-Fi On/Off
Button
Ethernet Ports
Wi-Fi Protected
Reset Button
Power Switch
4x Adjustable External Antennas
Setup Button

Linksys AC2600 Specifications

General

DSL WAN	-
Ethernet WAN	Yes
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1733 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Processor cores	2
Processor frequency	1400 MHz
Memory card slot(s)	No
USB 2.0 ports quantity	1
Ethernet LAN (RJ-45) ports	4
Power source type	AC
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 80 %
Cables included	LAN (RJ-45)
