Linksys AC3000 User Manual

21

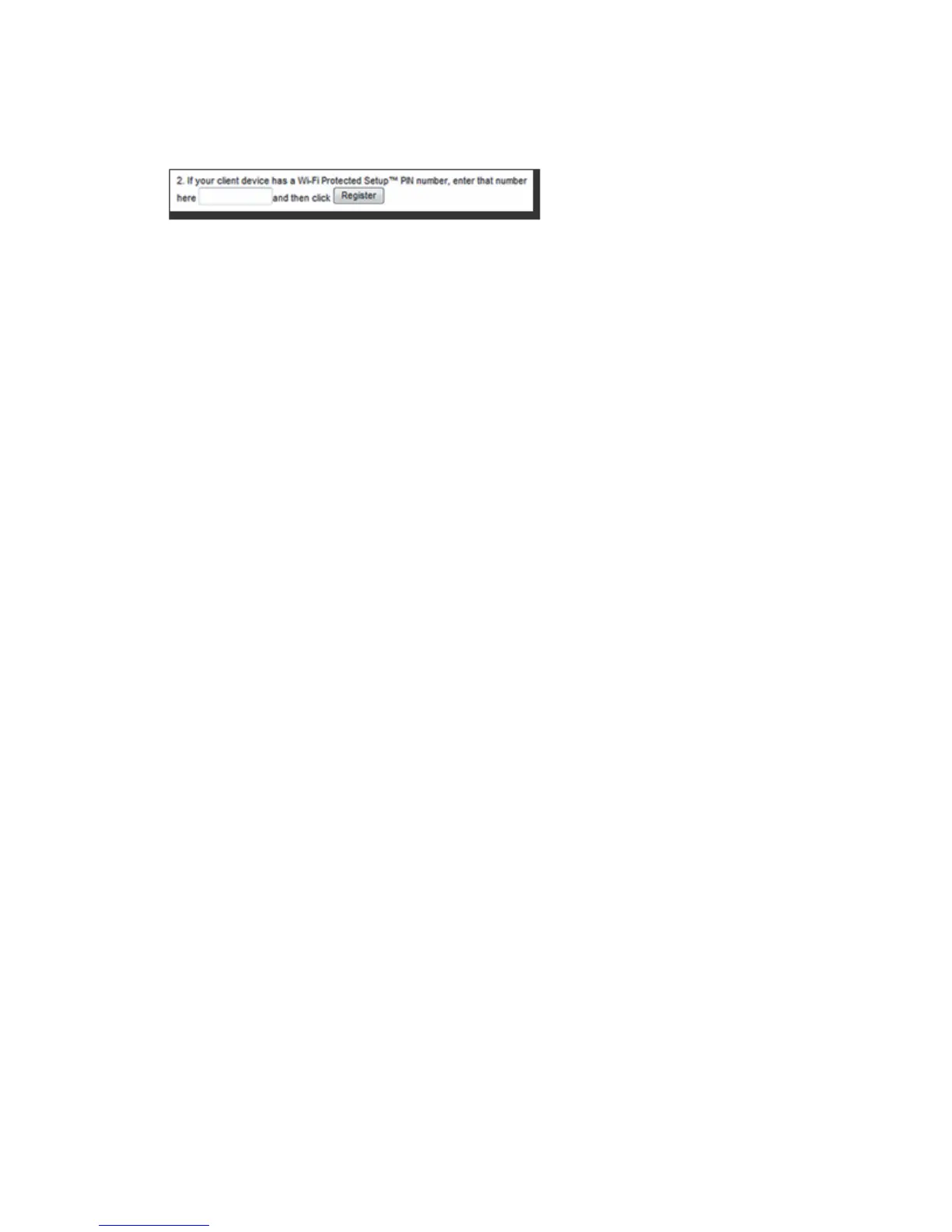

2. Connecting with the client device’s PIN
a) Enter the PIN from the client device in the field on the extender’s WPS
screen.
b) Click Register on the extender’s WPS screen. When the connection is
complete, the light on the top of the range extender will be solid green for 20
seconds.
c) Click OK on the extender’s WPS screen within two minutes or you will have to
start over.
3. Connecting with the extender’s PIN
a) On the client device, enter the PIN listed on the extender’s WPS screen. (It is
also listed on the product label on the back of the extender.)
b) Click OK on the client device’s WPS screen within two minutes.

Linksys AC3000 Specifications

General

MU-MIMO	Yes
Beamforming	Yes
Cross-Band Technology	Yes
Security	WEP, WPA, WPA2
Wireless Standard	802.11ac
Maximum Speed	3000 Mbps
Bands	2.4 GHz, 5 GHz
Wireless Standards	802.11ac
Product Type	Range Extender
Weight	0.6 lbs
