16
To fix the problem on Mac computers, do the following:
1.

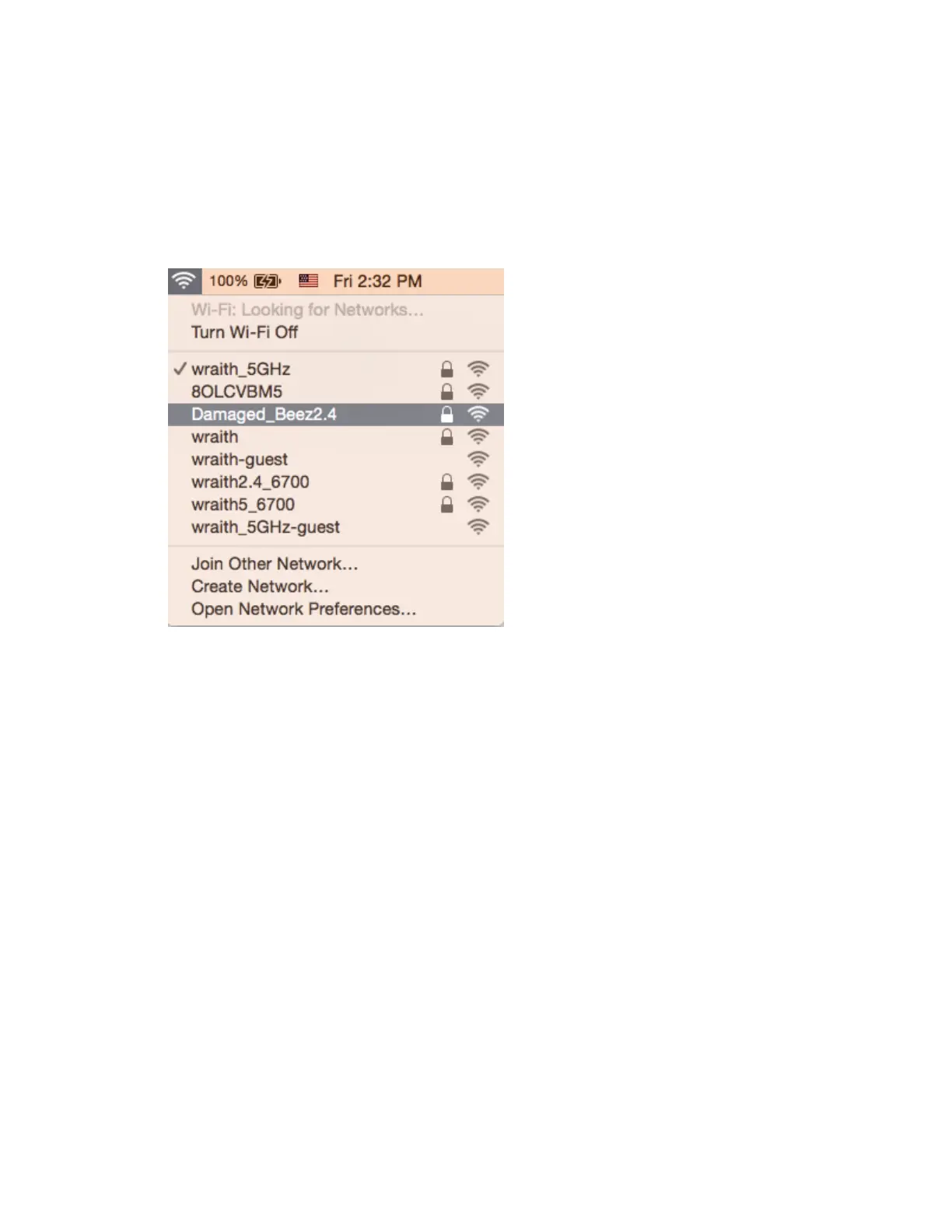

In the menu bar across the top of the screen, click the Wi-Fi icon. A list of wireless networks will
appear.
2.
In the example below, the computer was connected to another wireless network named
wraith_5GHz. The wireless network name of the Linksys E series router, Damaged_Beez2.4 in
this example, is shown selected.
3.
Click the wireless network name of your Linksys E series router (Damaged_Beez2.4 in the
example).
4.
Type your wireless network password (Security Key) into the Password field. Click OK.
After setup
The internet appears to be unavailable
If the internet has difficulty communicating with your router, the problem may appear as a “Cannot
find [internet address]” message in your web browser. If you know that the internet address is correct,
and if you’ve tried several valid internet addresses with the same result, the message could mean that
there’s a problem with your ISP or modem communicating with your router.
Try the following:
Make sure that the network and power cables are securely connected.
Make sure that the power outlet that your router is connected to has power.
Reboot your router.
Contact your ISP and ask about outages in your area.
The most common method of troubleshooting your router is to turn it off, then back on again. Your
router can then reload its custom settings, and other devices (such as the modem) will be able to
rediscover the router and communicate with it. This process is called rebooting.
