Linksys E5600 User Manual

4

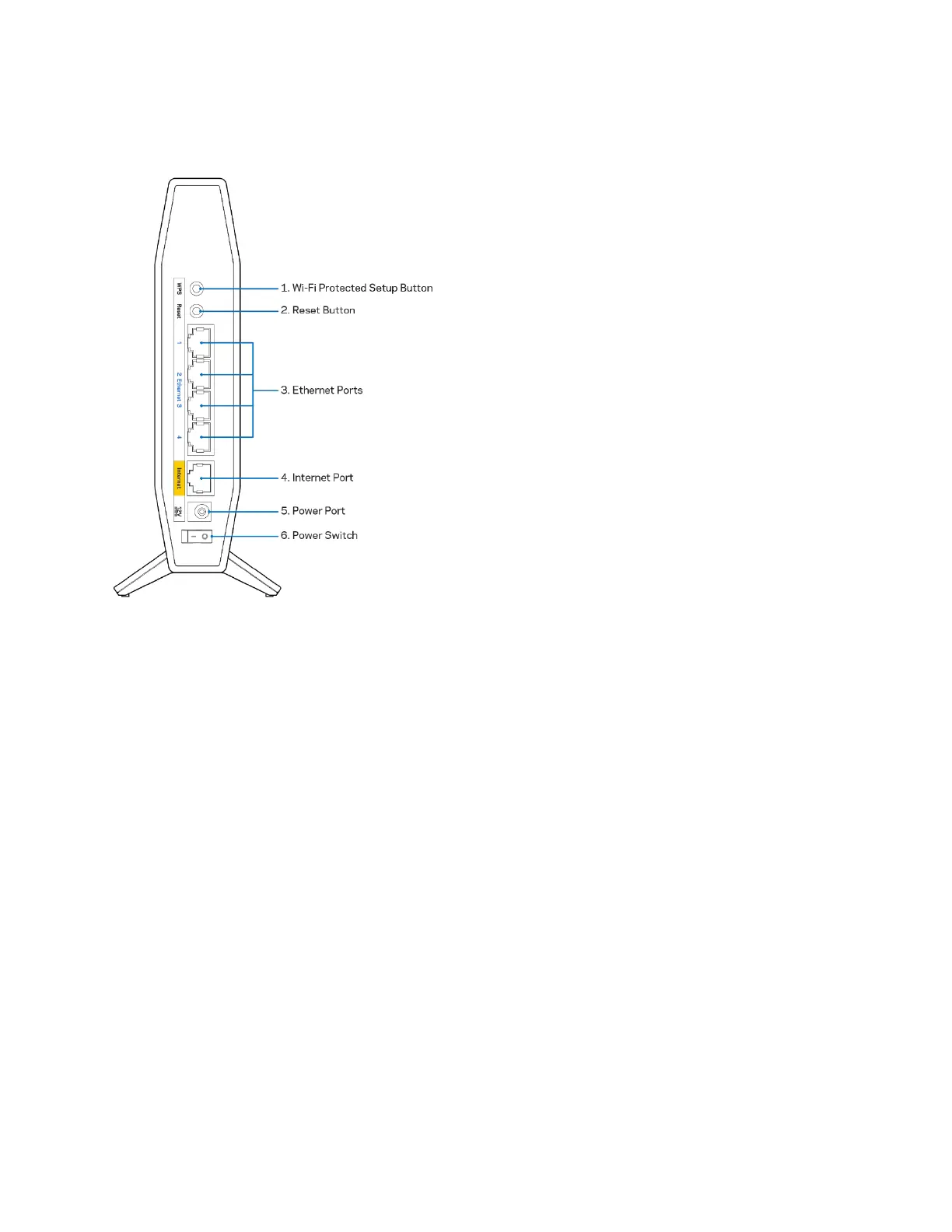

Back
Wi-Fi Protected Setup™ (WPS) button (1)----- Press to easily configure wireless security on Wi-Fi
Protected Setup-enabled network devices. The light under the button will blink while WPS pairing is
active.
Reset button (2)—Press and hold for until the power LED starts flashing to reset the router to
factory settings.
Ethernet ports (3)------Connect Ethernet cables (also called network or internet cables) to these Fast
Ethernet (10/100/1000) ports and to other wired devices on your network. The lights under the ports
will light up only when an Ethernet cable is plugged in and there is data traffic on the cable.
Internet port (4)------ Connect an Ethernet cable to this port and to your modem. The light under the
port will light up only when an Ethernet cable is plugged in and there is data traffic on the cable.
Power port (5)------Connect the included AC power adapter to this port.
Power switch (6) ----- Press | (ON) to turn on the router.

Linksys E5600 Specifications

General

DSL WAN	No
Ethernet WAN	Yes
WAN connection type	RJ-45
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Channels quantity	2 channels
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1200 Mbit/s
WLAN data transfer rate (first band)	866 Mbit/s
WLAN data transfer rate (second band)	300 Mbit/s
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Mobile network generation	-
Ethernet LAN (RJ-45) ports	1
Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, Status
Antennas quantity	4
Internal memory	128 MB
Processor cores	2
Processor frequency	880 MHz
Output current	1 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	DC
AC input frequency	50 - 60 Hz

Weight and Dimensions

Depth	91 mm
Width	220 mm
Height	235.7 mm
Weight	861.8 g
