20
2.

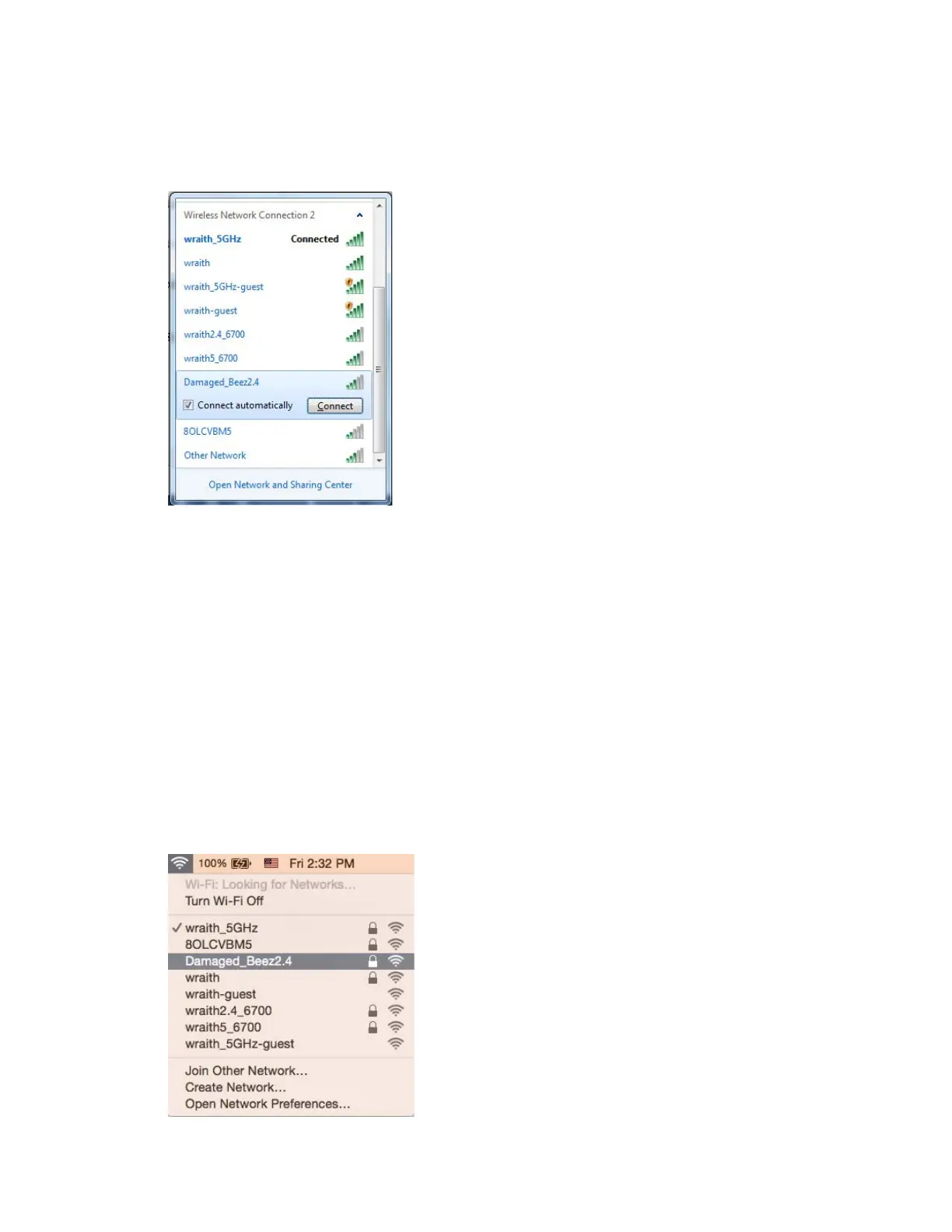

Click your own network name. Click Connect. In the example below, the computer was
connected to another wireless network named wraith_5GHz. The wireless network name of the
Linksys EA8300 router, Damaged_Beez2.4 in this example, is shown selected.
3.
If you are prompted to enter a network security key, type your password (security key) into the
network security key field. Click OK.
4.
Your computer will connect to the network, and you should be able to access the router.
*Depending on your version of Windows, there could be some differences in wording or icons in these
steps.
To fix the problem on Mac computers, do the following:
1.
In the menu bar across the top of the screen, click the Wi-Fi icon. A list of wireless networks will
appear.
2.
In the example below, the computer was connected to another wireless network named
wraith_5GHz. The wireless network name of the Linksys EA8300 router, Damaged_Beez2.4 in
this example, is shown selected.

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Linksys MAX-STREAM EA8300 and is the answer not in the manual?

Linksys MAX-STREAM EA8300 Specifications

General IconGeneral
Wi-Fi Technology802.11ac
Processor716 MHz Quad-Core
Antennas4 external antennas
MU-MIMOYes
BeamformingYes
RAM256 MB
Flash Memory256 MB
Wi-Fi SpeedAC2200 (400 + 867 + 867 Mbps)
Wi-Fi BandsTri-Band (2.4 GHz + 5 GHz + 5 GHz)
Ethernet Ports1 x Gigabit WAN, 4 x Gigabit LAN
USB Ports1 x USB 3.0
SecurityWPA2
