Wireless-G Ethernet Bridge
3
Instant Wireless
®
Series
2
Power Green. The Power LED will light up
when the Bridge is powered on.
Ethernet Green. The Ethernet LED will be lit
steadily when the Bridge is connected to
the wired network. The LED will blink
when there is wired network traffic.
Wireless-G Green. The Wireless-G LED will be lit
steadily when the Bridge is connected to
the wireless network. The LED will
blink when there is wireless network
traffic.

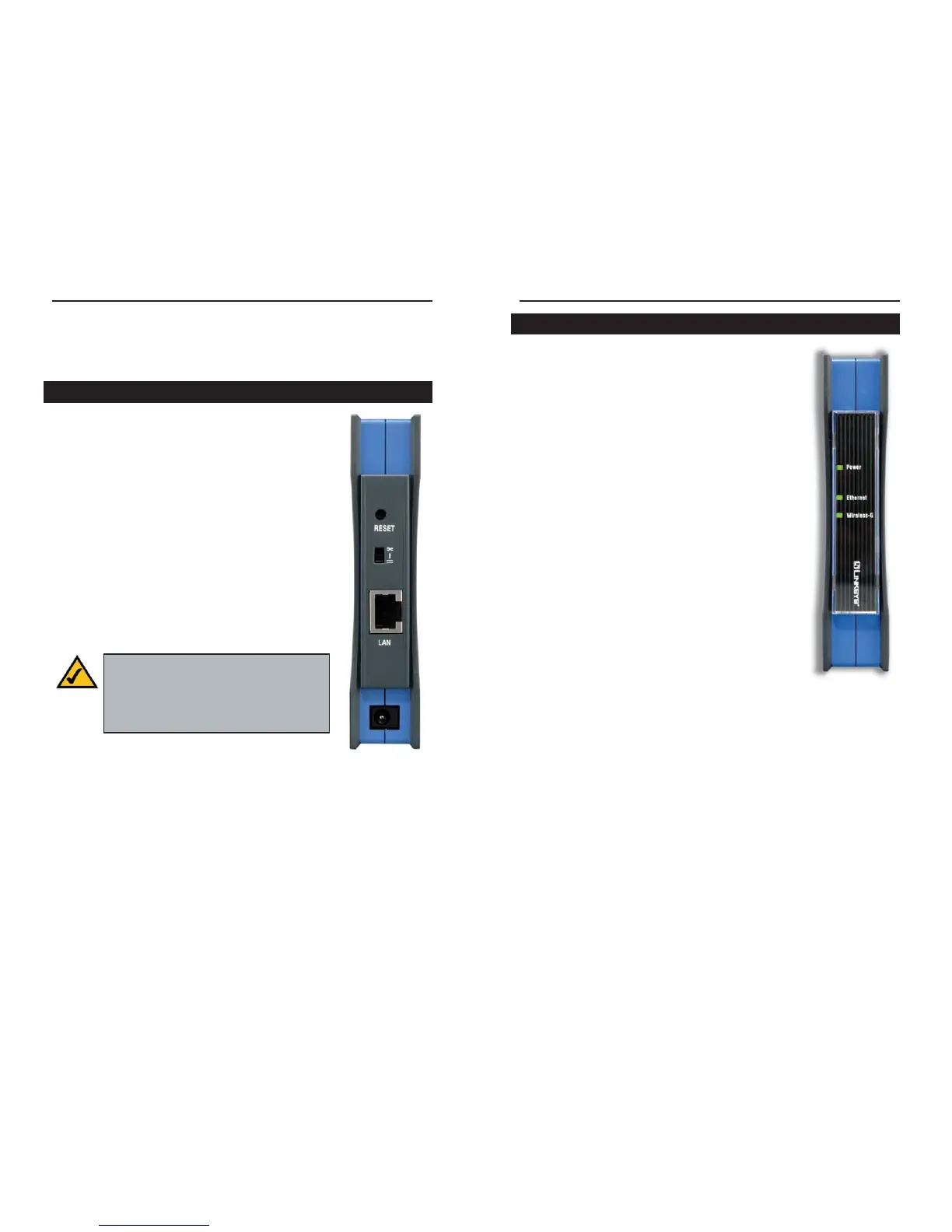

Figure 2-2
Chapter 2: Getting to Know the
Wireless-G Ethernet Bridge
Reset The Reset button resets the Bridge to its
factory default settings.
X-II The X-II (MDI/MDI-X) slide switch
offers a choice between two settings.
Use the X setting if you are connecting
the Bridge to a network adapter. Use the
II setting if you are connecting the
Bridge to a hub or switch.
LAN The LAN port is where you will con-
nect the Ethernet network cable.
Power The Power port is where you will con-
nect the power adapter.
The Wireless-G Ethernet Bridge’s Back Panel
Figure 2-1
The Wireless-G Ethernet Bridge’s Front Panel LEDs
Note: If you use a Power over Ethernet (PoE)
device to supply data and power through the
Ethernet network cable, then you do not need
to connect the power adapter to the Power
port.
