Transformer operations
Summary Table of Engine Directions
Condition Direction Change Cycle
Case #1: First power up or without power longer than 5 sec.
E unit off (switch in PROGposition) N, F, N, F, etc.
E unit on (switch in RUNposition) N, F, N, R, etc.
Case #2: Engine without power for less than 2.5 seconds
E unit off (switch in PROGposition) N, Last-Dir, N, Last-Dir, etc.
E unit on (switch in RUNposition) N, F, N, R, etc.
NOTE: With your 104 E reversing unit, positioning the switch in the PROG position locks
your engine into its last moving direction plus neutral. Positioning the switch in the RUN
position resumes normal sequencing operation.

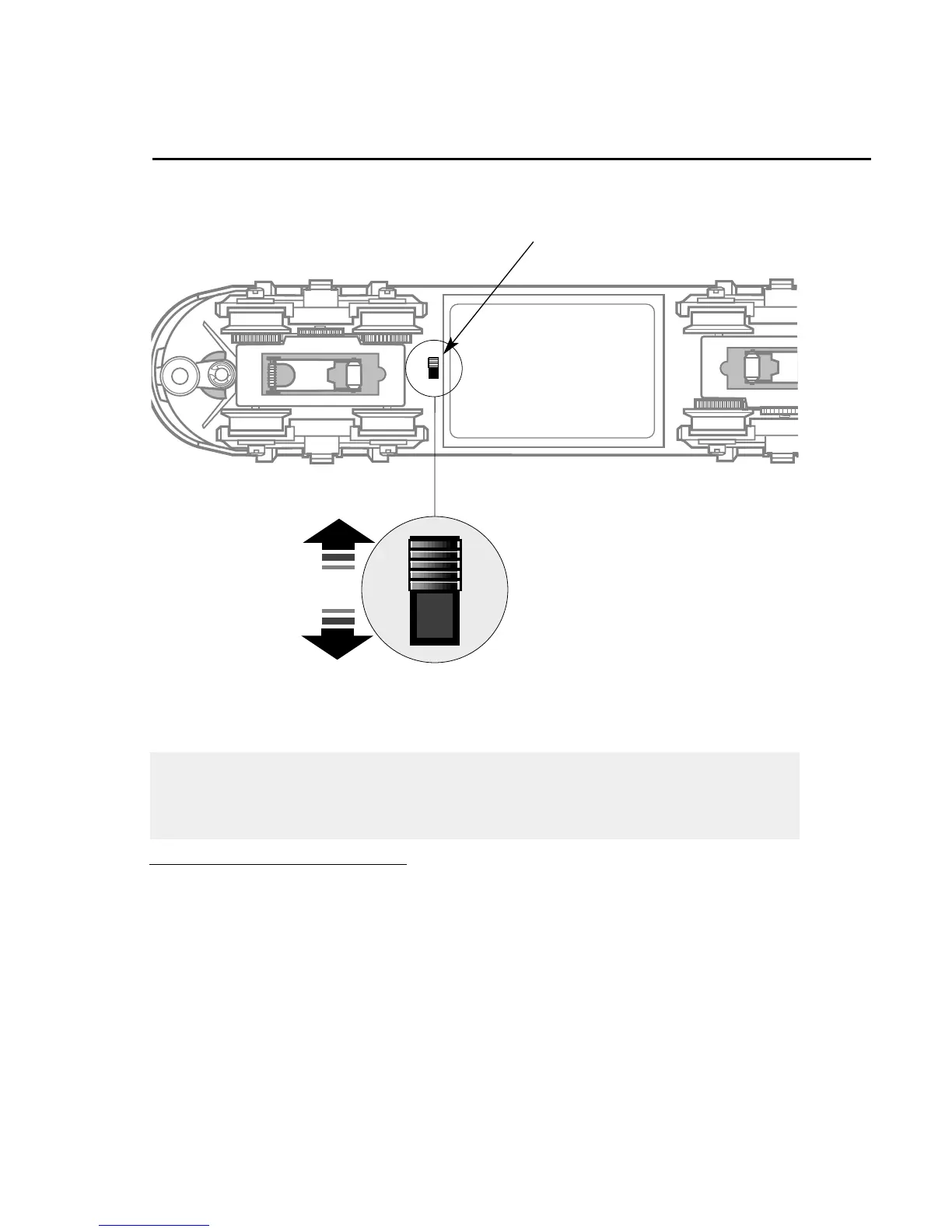

Your F3’s 104 E Reverse unit
F3 A reverse unit control switch
program
lock
forward
run
