Lippert Components Edge - Securing the Fabric

Rev: 10.24.19 Page 6
CCD-0002685

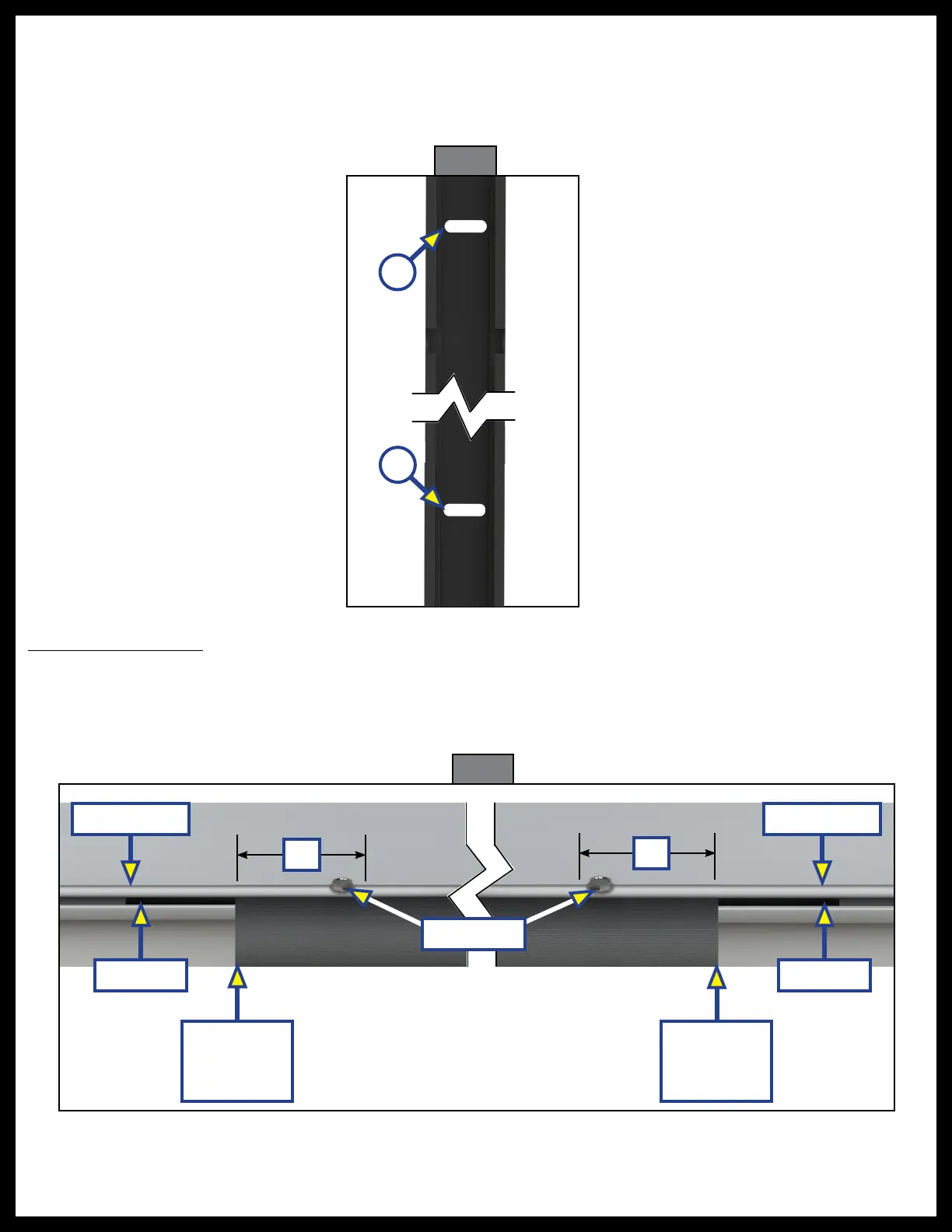

Fig. 7
Securing the Fabric
1. Extend and retract the awning several times to make sure the fabric is square on the roll tube.
2. Secure the fabric in the awning rail no more than 1” inside the edge of the fabric on both ends using
a #6 x
½
” hex head screw. Install the screw down through the awning rail into the fabric and the
polycord (Fig. 8).
Awning Rail Awning Rail
1"
1"
Polycord
Outer Edge
of Fabric
Idler Side
Outer Edge
of Fabric
Drive Side
Polycord
Hex Screw
Fig. 8
A
A
11. Cut the zip ties and connect the wires from the drive head assembly to a drill battery and run the
awning half way out.
C. Install the remaining two #14 x 1
¼
” screws in the two screw slots in the center portion of the
awning assembly (Fig. 7A). Repeat for the other side.
