Lippert Components Edge - Wiring Diagram

Rev: 10.24.19 Page 9
CCD-0002685
15A Auto-Reset
Circuit Protector
per RVIA Code
(OEM Supplied)
Red
Black
Manual
Rocker
Switch*
Blue
Red
Awning Motor
12V DC Battery,
Power Source
or Converter
White
Ground
Power
2
3
1 4
5
6
**Jumper wires are internal
+ 

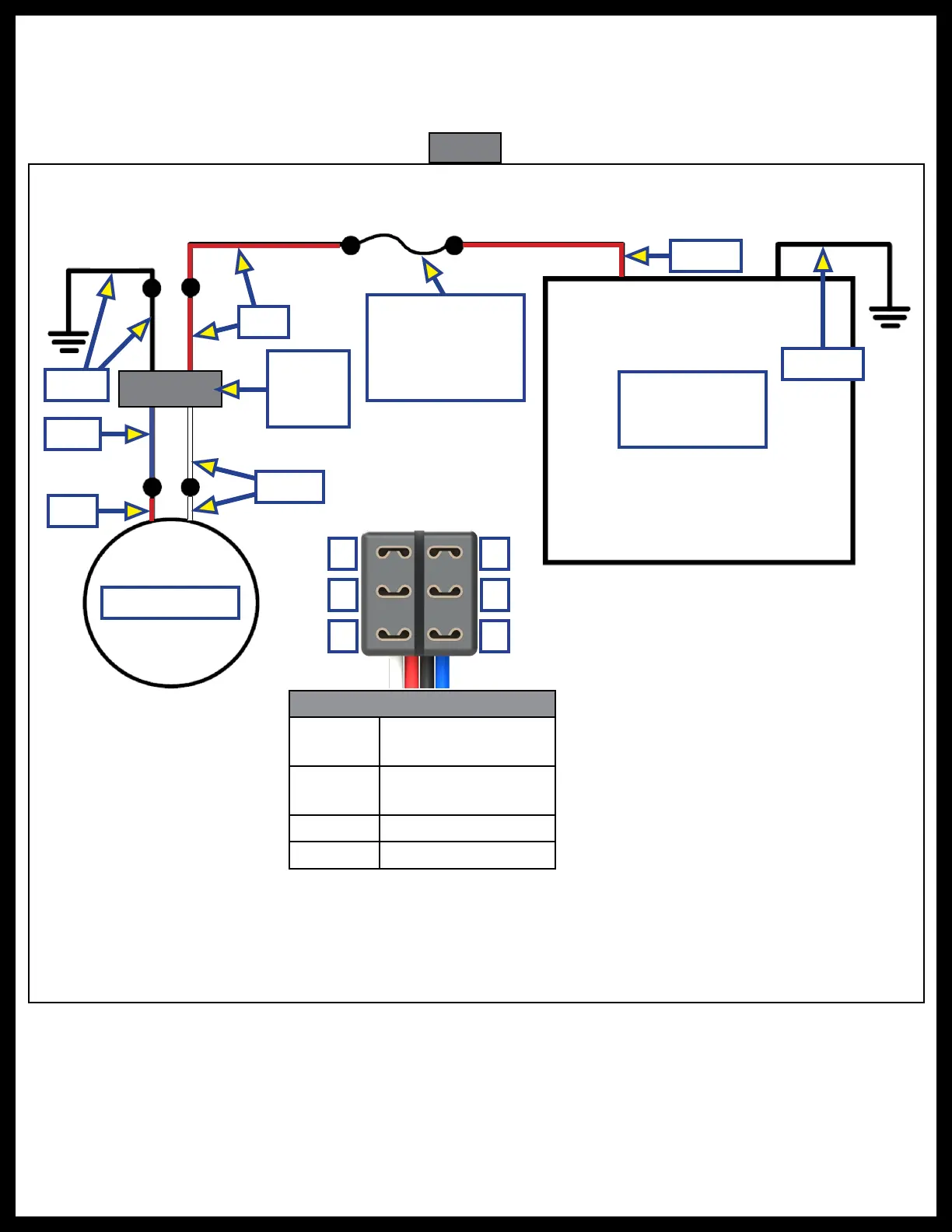

Wiring Diagram
*Wire colors may vary depending on what switch is used.
Wire colors shown reference using a LCI Rocker Switch.
End View of Wiring Harness
Red
**Jumper wire
1 to 6
Black
**Jumper wire 4
to 3
White 2
Blue 5
Fig. 11
