Rev: 07.30.18 Page 5 CCD-0001522

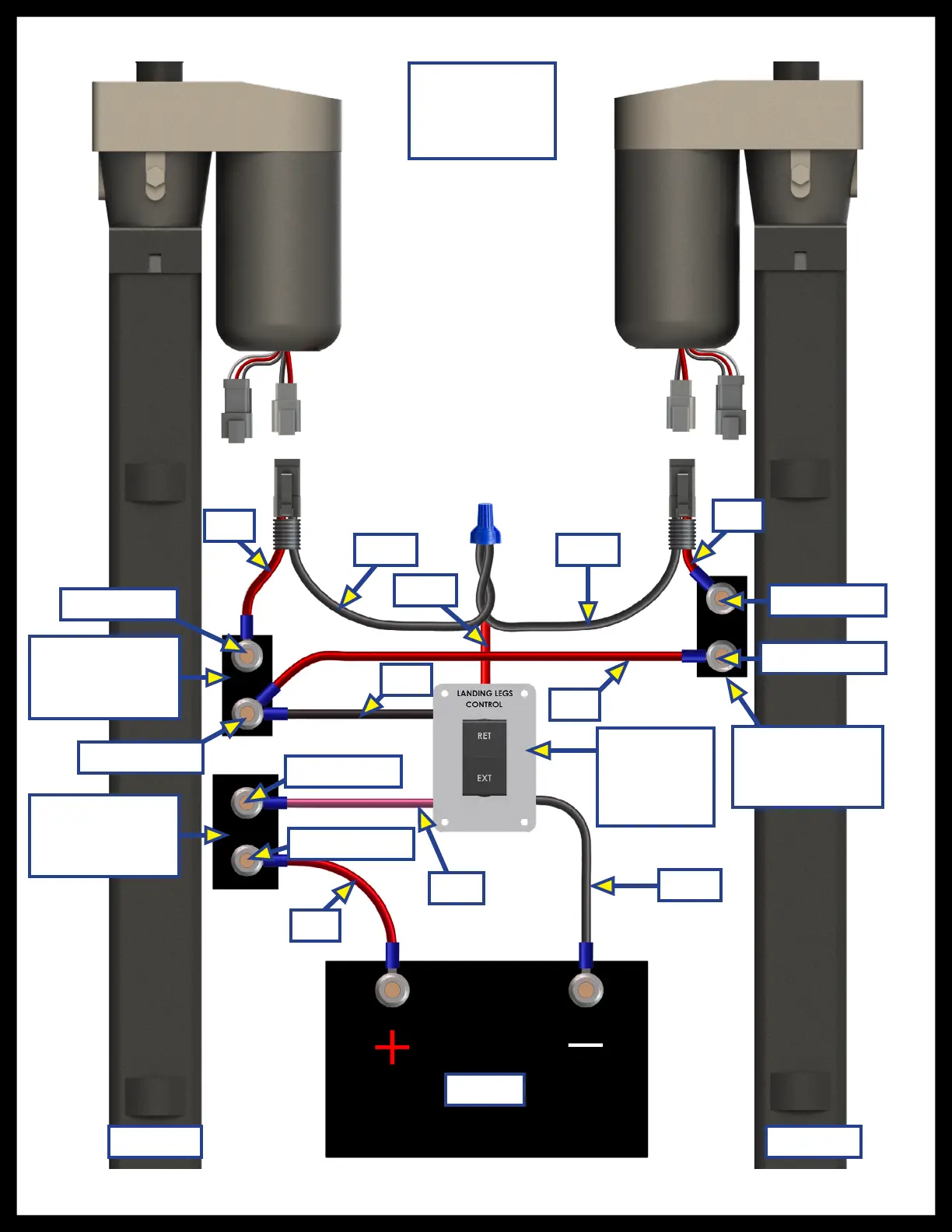

Wiring Diagram
Battery
Recommended
30 Amp Breaker
(OEM Supplied)
Recommended
20 Amp Breaker
(OEM Supplied)
Bronze (BAT)
Silver (AUX)
Bronze (BAT)
Silver (AUX)
Silver (AUX)
Curbside Roadside
Landing
Gear Switch
Mounted
Curbside
Black
Recommended
20 Amp Breaker
(OEM Supplied)
Bronze (BAT)
Red
Pink
Red
Red
Red
Red
Black
BlackBlack
All OEM
supplied wiring
to be 6 AWG
