Rev: 09.15.20 Page 11 CCD-0001531

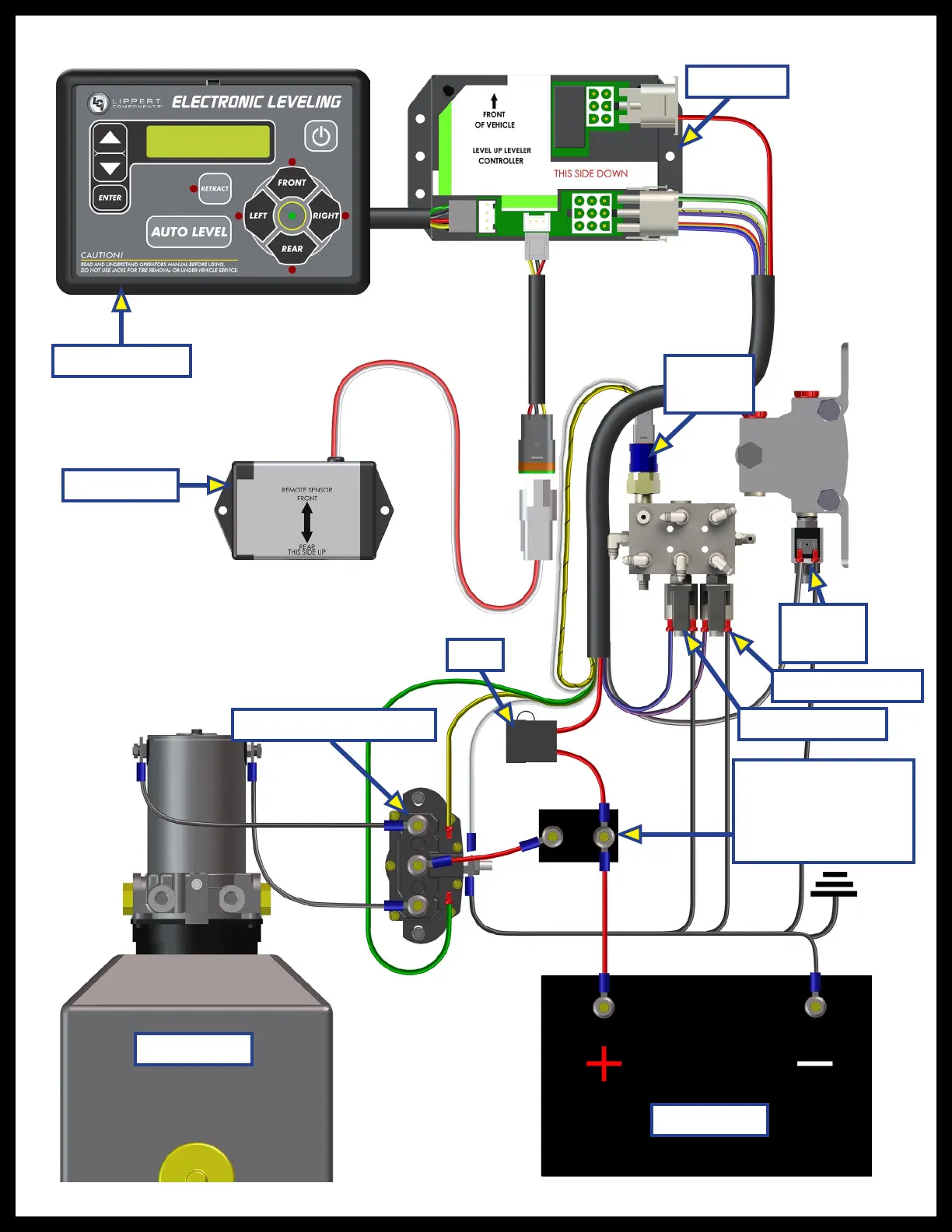

Wiring Diagram - 6-Point Level Up
Controller
LCD Touchpad
Rear Sensor
Pressure
Switch
Dual Polarity Solenoid
Power Unit
Battery
Fuse
Curb Side Valve
Road Side Valve
Landing
Gear
50-100 amp
Protection per RVIA
Standards and OEM
Requirements.
