Unhitching Instructions
1. Press Power button , (Fig. 1K) to turn system on. The LCD screen (Fig. 1E) lights up.
2. The LCD will display “NOT LEVEL; Jacks: UP” (Fig. 1E).
3. Orange arrow lights (Fig. 1L) may come on, indicating the current disposition of the trailer.
4. Press FRONT button (Fig. 1G) to extend landing gear jacks to lift front of the trailer to take the weight of
the 5th Wheel off the hitch.
5. Uncouple the 5th Wheel connection on the tow vehicle.
6. Pull the tow vehicle away and park it at a safe distance.
Fig. 1
B
A
C
E
F H

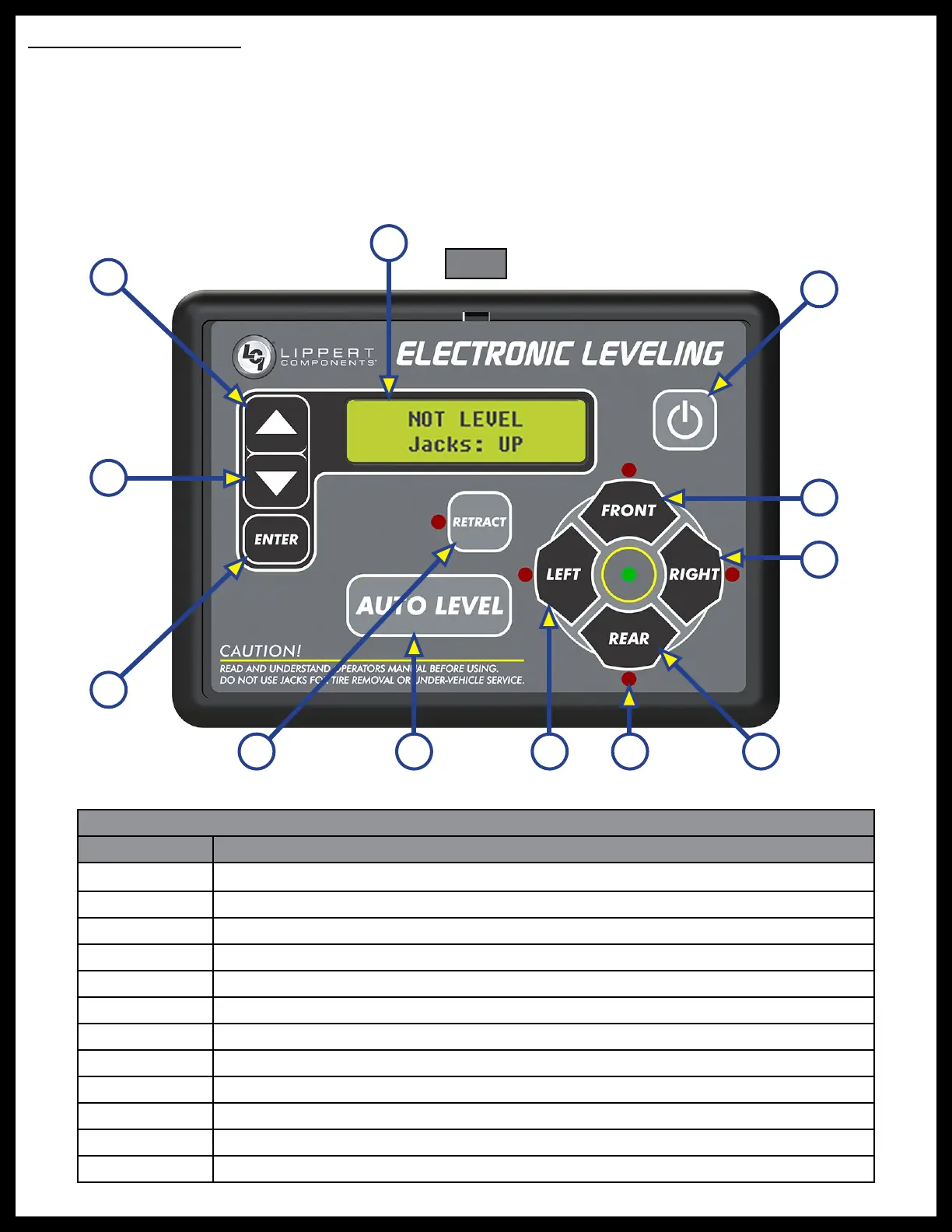

LCD Touchpad Features
Callout Description
A Up Arrow - Scrolls up through the menu on LCD.
B Down Arrow - Scrolls down through the menu on LCD.
C ENTER - Activates modes and procedures indicated on LCD.
D RETRACT - Places leveling system into retract mode while in manual mode only.
E LCD Display - Displays procedures and results.
F AUTO LEVEL - Places leveling system into auto level mode.
G FRONT Button - Activates both front jacks.
H LEFT Button - Activates left leveling jack(s) in manual mode.
I RIGHT Button - Activates right leveling jack(s) in manual mode.
J REAR Button - Activates leveling jacks in manual mode.
K Power Button (ON/OFF) - Turns leveling system on and off.
L LED lights
D L J
I
K
G
