Solera® Awning Smart Arm Aftermarket Manual

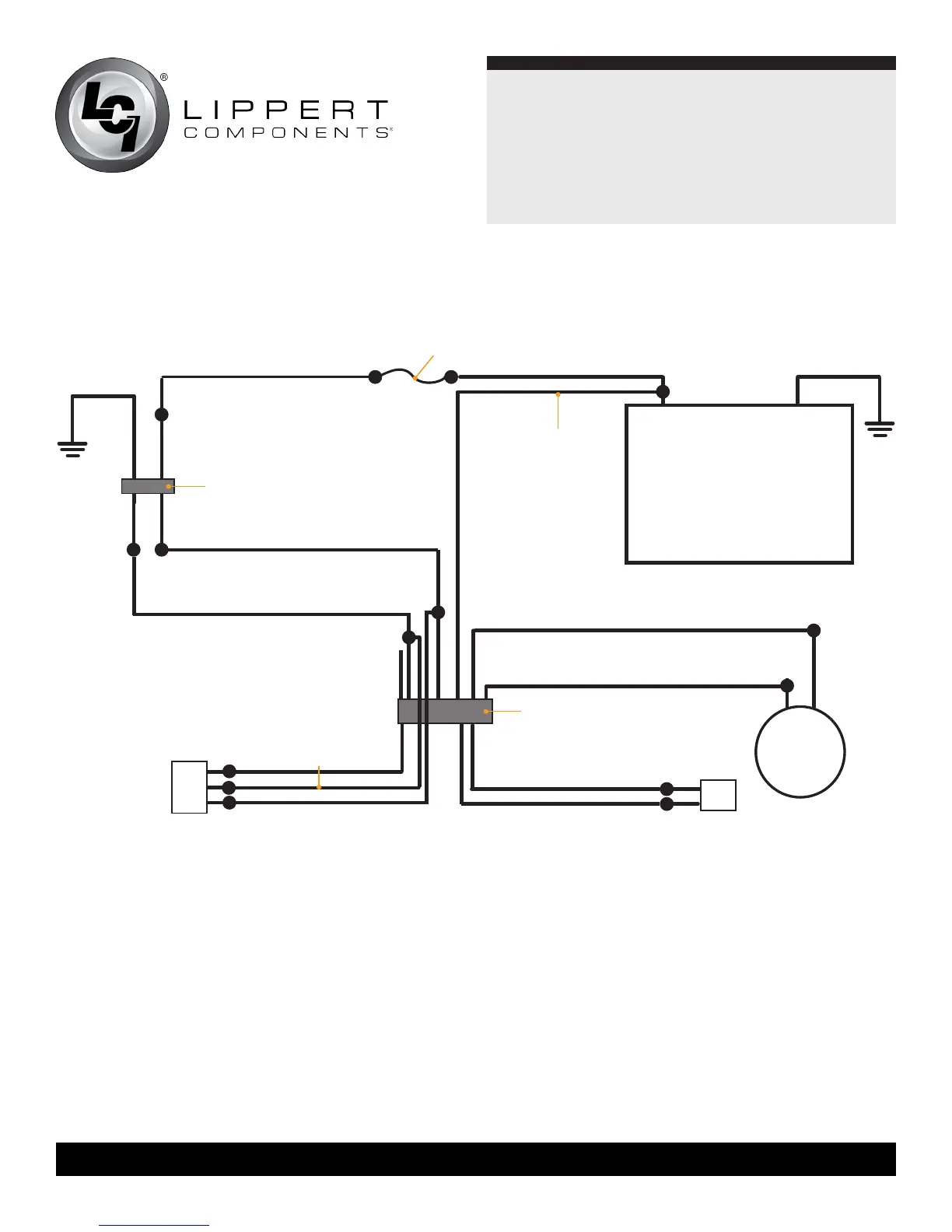

Smart Arm Wiring Diagram
black
red
ground
power
red
black
10 AWG
from power
source to
controller
15A circuit per RVIA code
(OEM Supplied)
manual
rocker switch
blue
white
red
awning
drive motor
Smart Arm
control
red power
(connects to source)
green
lgt in
black
ret in
red
ext in
red
lgt
white
lgt
red
black
white
wind
sensor
LED
Light
battery, power
source or converter
red
black
green
black
red
*Customer has the option of installing either the myRV Control or the Manual Awning Rocker switch� Diagram shows installation of both�
