Lippert Components Solera Smart Arm User Manual

Solera
®
Awning
Smart Arm
Installation and Owner’s Manual
(For Aftermarket Applications)
www.lci1.com 574-537-8900
Page 3
Solera® Awning Smart Arm Aftermarket Manual
Installing The Awning Rail
(If Necessary)
NOTE: Awning rail not included�
1. Position the awning rail along the line where roof and wall
meet OR:
A. For pitched awnings: A minimum of 6” above doors or
windows
B. For at awnings: A minimum of 4” above doors or windows
front facing view
Fig.1
B
B
C

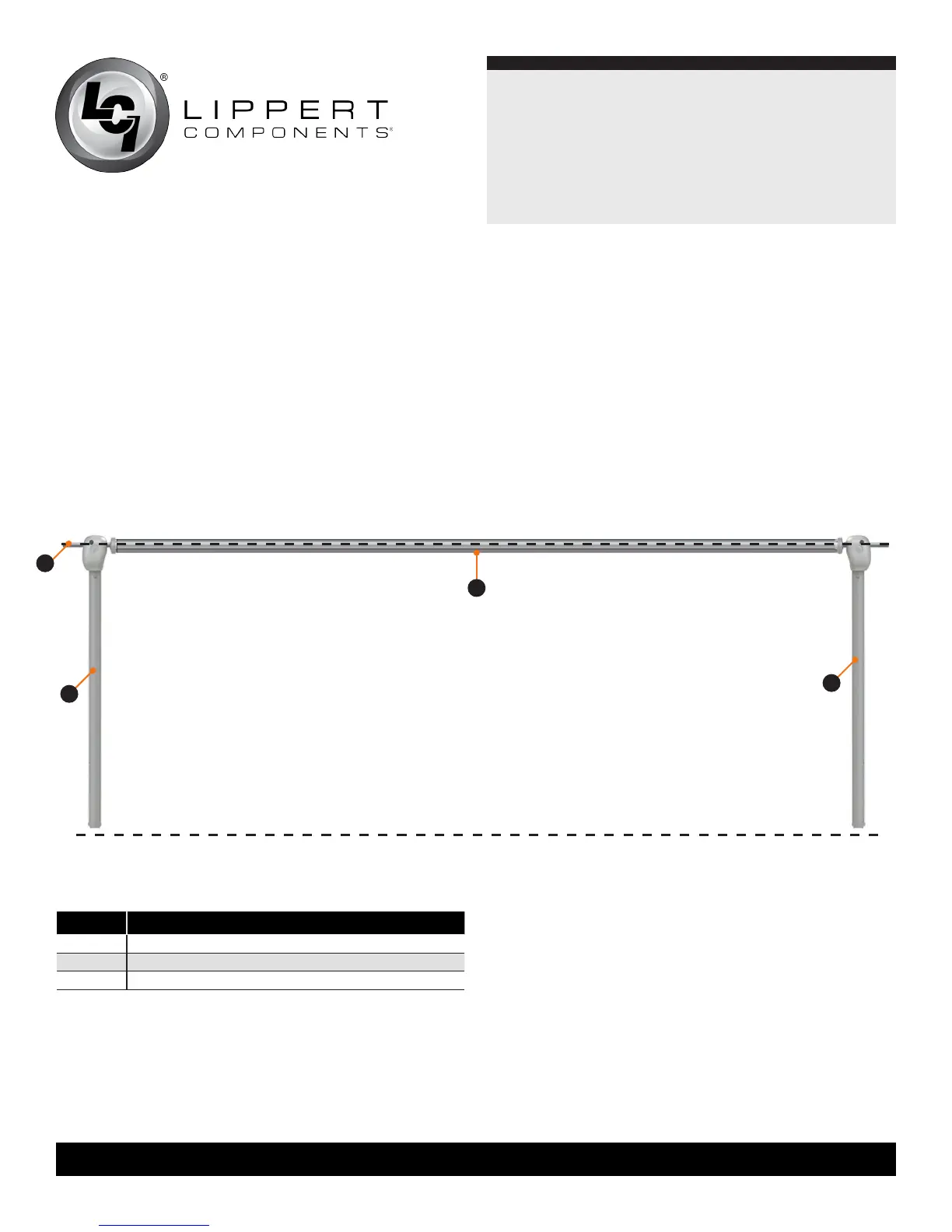

Letter Description
A Awning Rail
B Support Arm Assembly
C Roll Tube Assembly
Floor Line
NOTE: The awning rail must be level and parallel with
the floor line of the unit (Fig.1)�
2. After determining the awning rail’s proper location,
mark its position with a non-permanent method of
marking�
3. Seal the back of the awning rail�
4. Align the awning rail on the wall and secure with #10
x ¾” screws, using all fastener holes�
A
