Rev: 04.27.21 Page 3 CCD-0004123
The “CAUTION” symbol above is a sign that a safety risk is involved and may cause personal injury
and/or product or property damage if not safely adhered to and within the parameters set forth
in this manual
Always wear eye protection when performing service, maintenance or installation procedures.
Other safety equipment to consider would be hearing protection, gloves and possibly a full face
shield, depending on the nature of the task.
Moving parts can pinch, crush or cut. Keep clear and use caution.
No repairs should be attempted by anyone other than a qualied professional. The deployment and
retraction of the step assembly can cause injury if proper precautions are not taken. The step
assembly was designed for an operational weight rating of 400 lbs.
Resources Required
• Cordless or electric drill or screw gun
• Appropriate drive bit
• 7/16" Wrench or socket
• Measuring Tape
• #10 x 1 1/2" wood screws (wood floor)
• #10 x 1 1/2" self-tapping screws (laminate floor)
• Non -permanent method of marking
SolidStep® XF Floor Height Variations

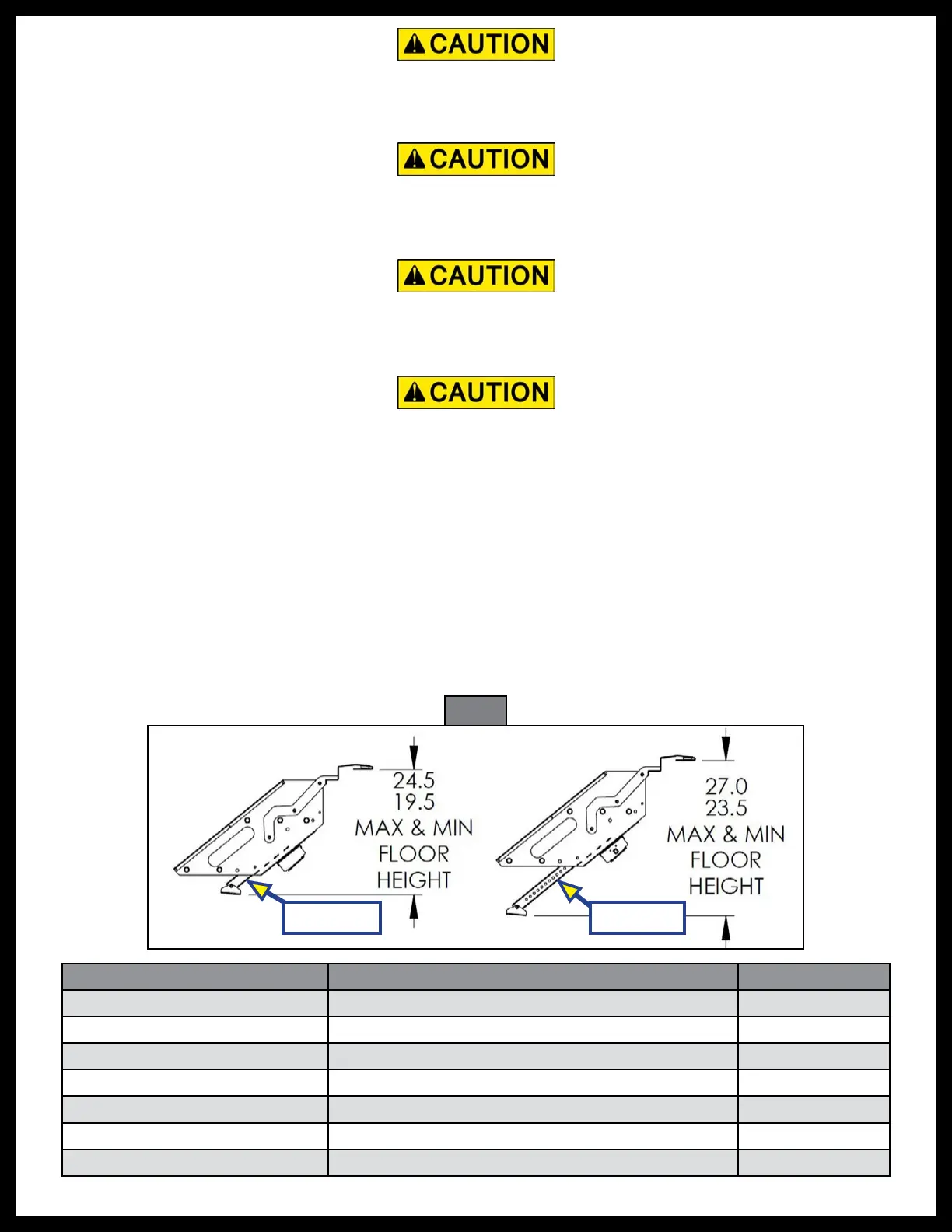

Figure 1 depicts an example from the chart below of the typical variations for the SolidStep XF step assembly.
Make sure the correct SolidStep XF variation is installed for the intended unit by also measuring the door
frame threshold. Step identification tags are located under one of the step extrusions, typically the top full step.
SolidStep XF Assembly Steps Maximum to Minimum Floor Height Leg Height
Double Step 7.5" Rise 24.5" Maximum to 19.5" Minimum Floor Height Short Leg
Double Step 7.5" Rise 27" Maximum to 23.5" Minimum Floor Height Long Leg
Double Step 9" Rise 28" Maximum to 22.5" Minimum Floor Height Short Leg
Double Step 9" Rise 31.5" Maximum to 28" Minimum Floor Height Long Leg
Triple Step 7.5" Rise 35" Maximum to 26" Minimum Floor Height Long Leg
Triple Step 9" Rise 40.5" Maximum to 30.5" Minimum Floor Height Long Leg
Quad Step 8" Rise 45" Maximum to 35.5" Minimum Floor Height Long Leg
Fig. 1
Long LegShort Leg
