Rear Sensor Replacement
1. Locate the rear sensor in the underbelly of the 5th Wheel.

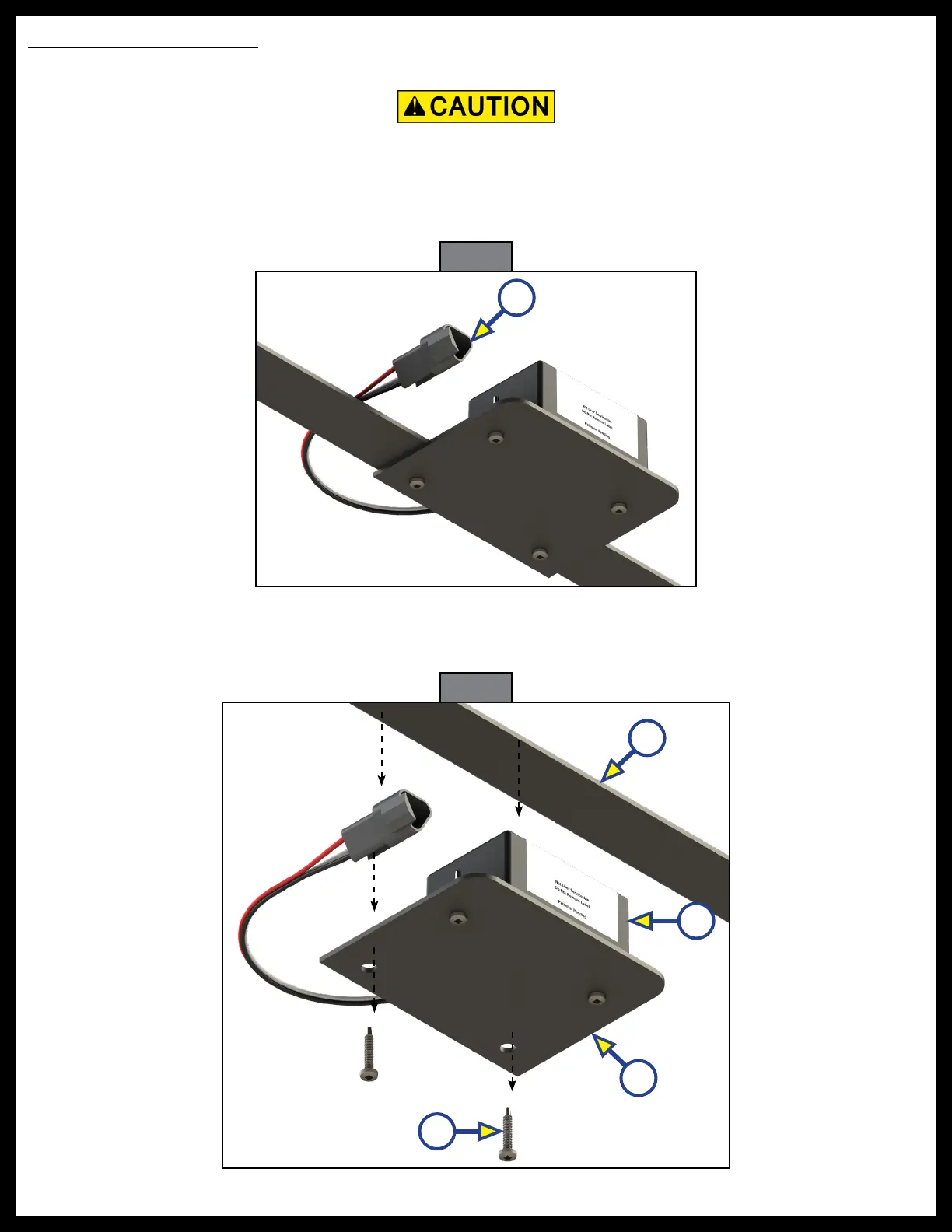

Fig. 19
Fig. 20
Do not cut any hoses or wires that may be installed in the underbelly.
A
C
D
B
A
2. Cut an access panel in the underbelly using a knife. The rear sensor should be installed on the
crossmember located at the rear of the back axle, centered curbside-to-roadside on the 5th Wheel.
3. Disconnect the rear sensor harness from the rear sensor (Fig. 19A).
4. Remove the screws (Fig. 20A), mounting plate (Fig. 20B) and sensor (Fig. 20C) from the
crossmember (Fig. 20D).
