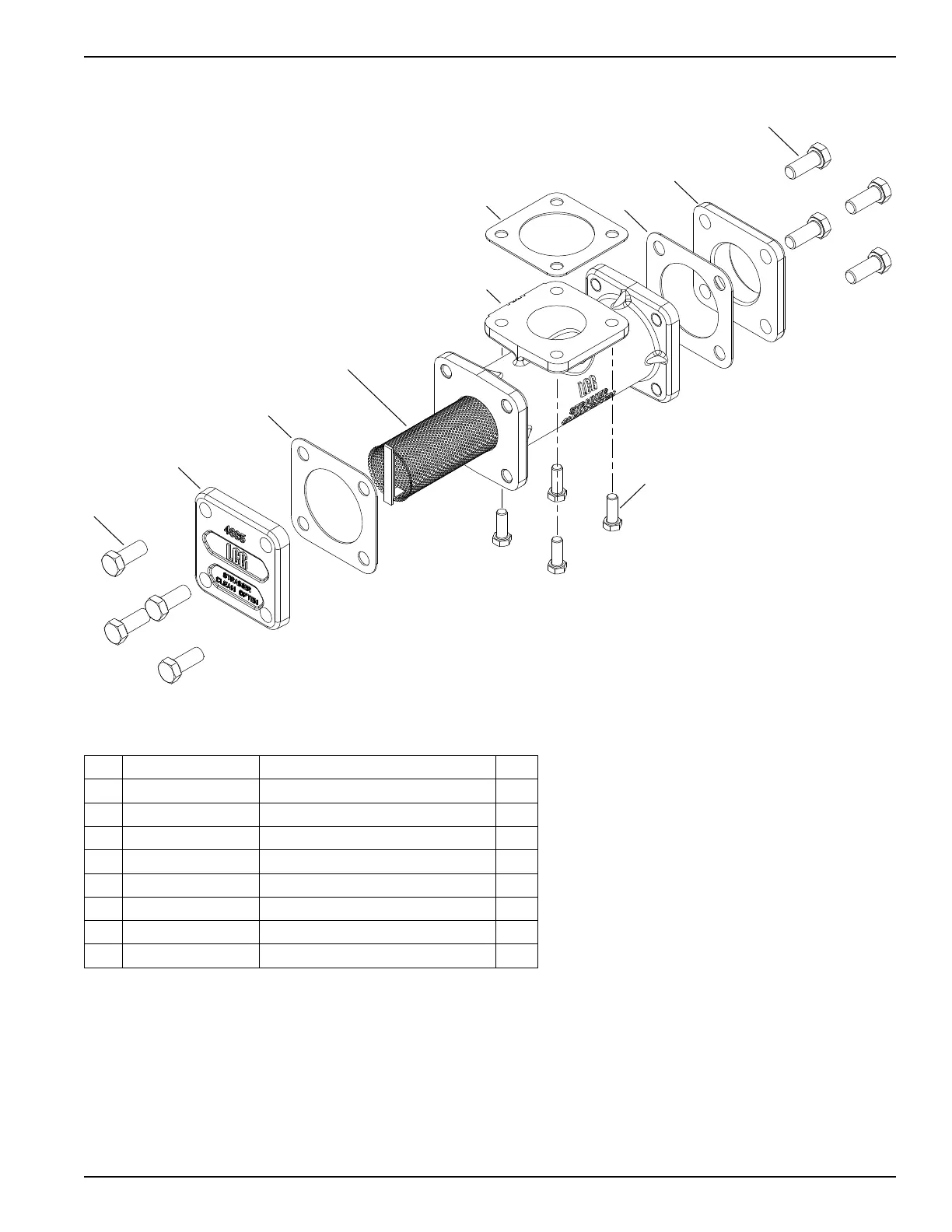

Appendix E—Part Details for the PT/PTH20 Strainer
4684-X Strainer Assembly
No. Part Number Description Qty.
1 7001-050NC125A Hex head bolt 8
24685 Strainer cap 1
3 4658 Flange gasket 2
4 4686 Strainer basket 1
5 4684 Strainer body 1
6 4688 Flange gasket 1
7 4698 2 in. NPT flange 1
8 7001-037NC100A Hex head bolt 4
