Installation and Connection
4
Ports
Notice: Different models in the same series may have slightly different ports. The above pictures
are subject to the actual product.

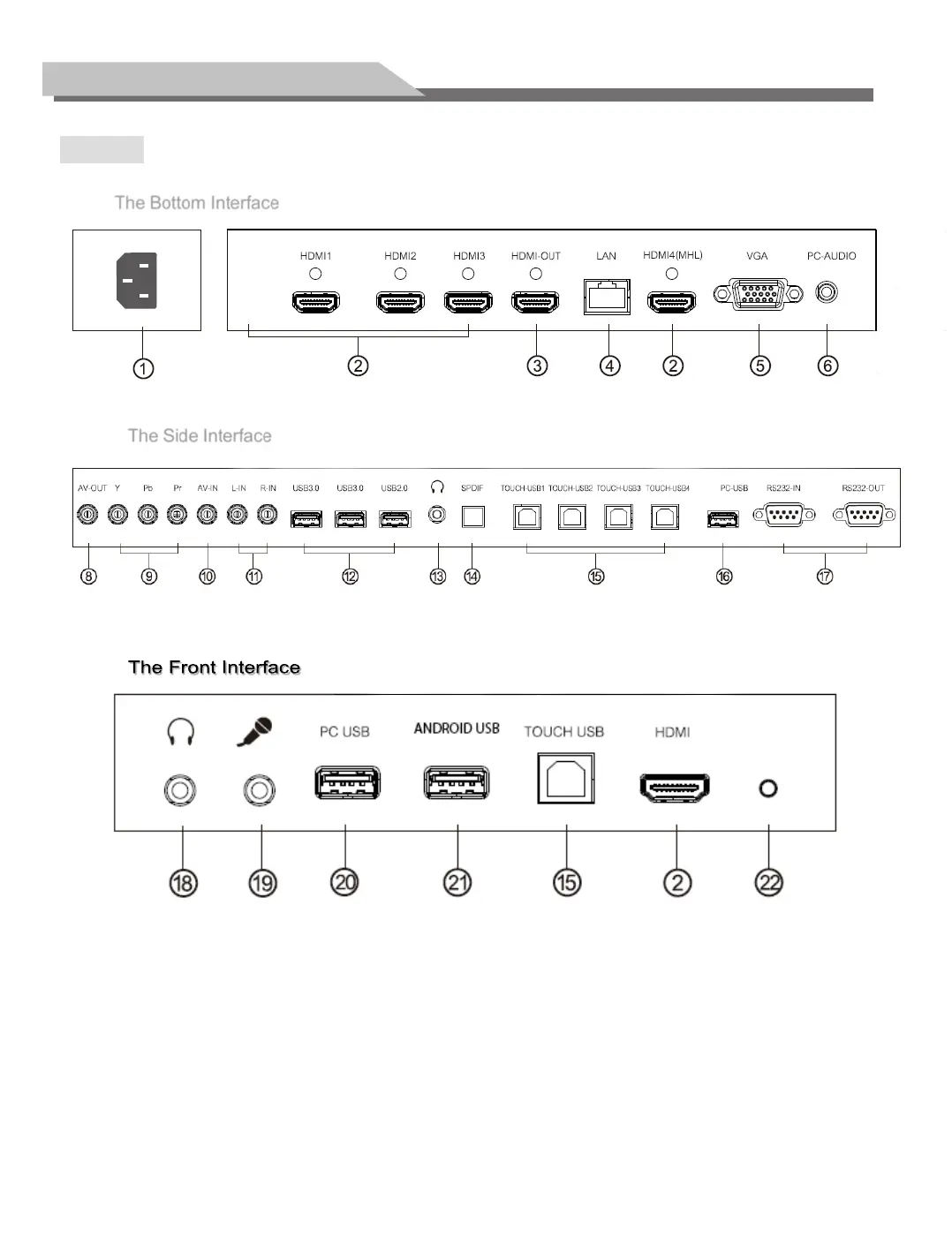

1. Power Port ; 2. HDMI Ports ; 3. HDMI-OUT Port; 4. LAN Port ; 5. VGA Port; 6. PC-AUDIO Port ;
8. AV-OUT Port; 9. YPbPr/YCbCr Ports; 10. AV-IN Port; 11. AUDIO IN Ports; 12. USB Ports;
13.
Headset Port; 14. SPDIF Port; 15. TOUCH-USB Ports ; 16. PRO-PC USB Port; 17. RS232 IN/OUT
Ports; 18. Front Panel Audio Port; 19. Front panel MIC Port; 20. PRO-PC USB Port; 21. Android
USB Port; 22. LED Light Sensor.
Caution: Disconnect the power plug before installing or removing the product!
To Next Page
