Installation and Connection
6

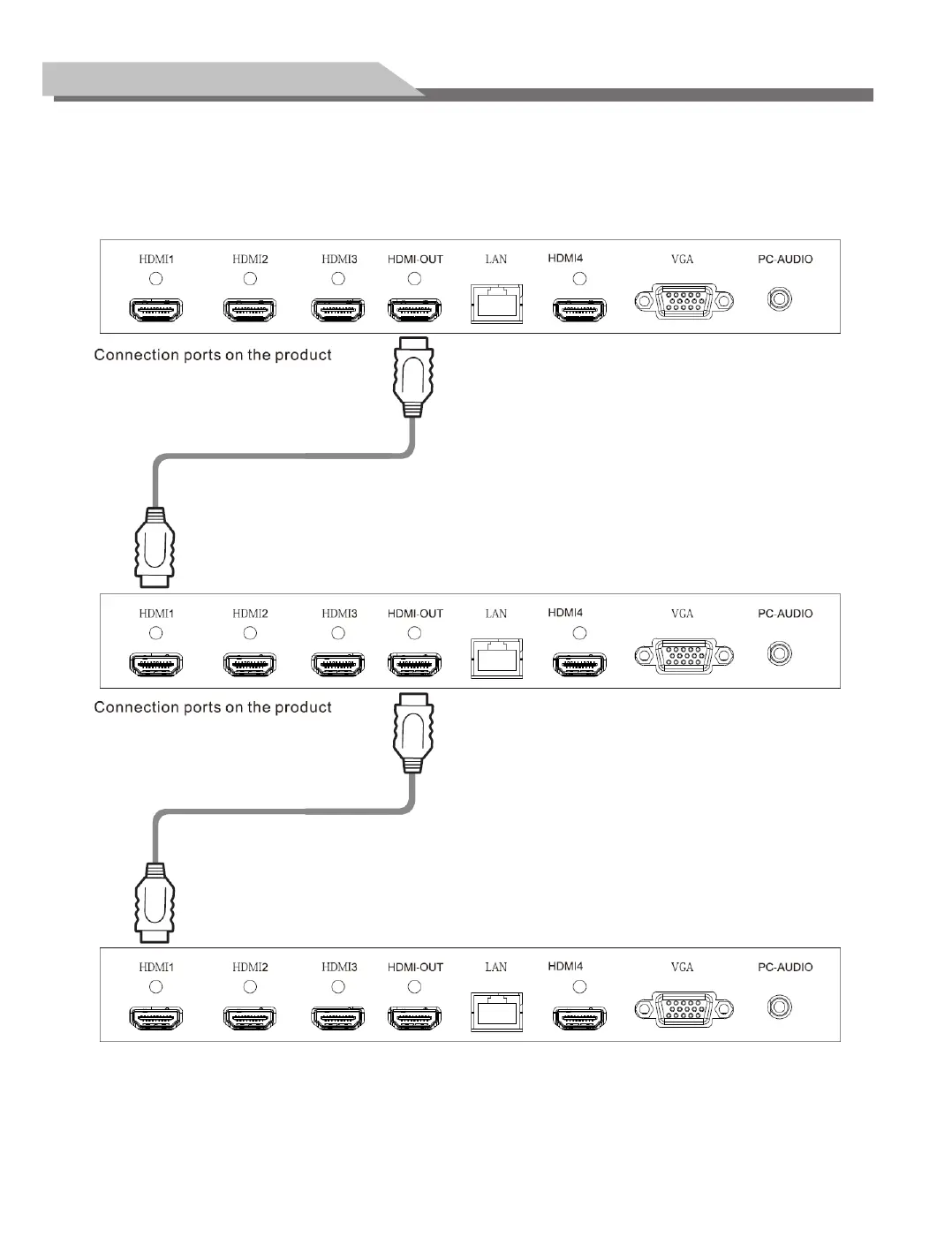

Schematic diagram for connecting the product to another product. (Note: Disconnect the power plug before
installing or removing the product!)
Connection ports on the product
The HDMI-OUT interface outputs the HDMI signal from HDMI1, HDMl2, and HDMl3. The output of video
signals is transferred to the next machine. The maximum number of loops is 8.
