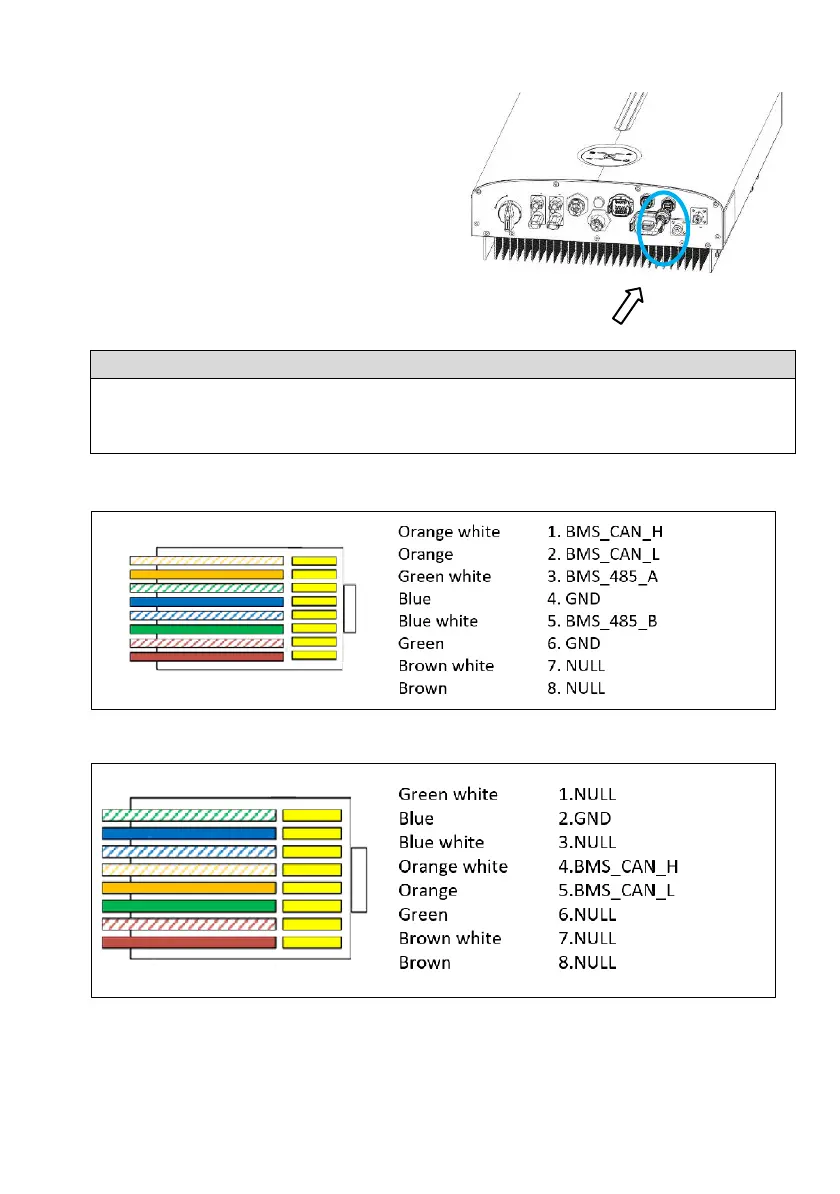

Step2: Installing the BMS Connector
• Insert the cable connector into BMS
port on the inverter and screw it tightly.
• Then insert other side of
communication cable into CAN port on
the battery.
6.6.2.2 BMS Pin Definition
• The BMS Pin Definition for battery from the Pylontech and LIVOLTEK are
different. Make sure the right wire sequence, otherwise will cause failure.
BMS Pin Definition for LIVOLTEK Lithium Battery
BMS Pin Definition for Pylontech Lithium Battery
