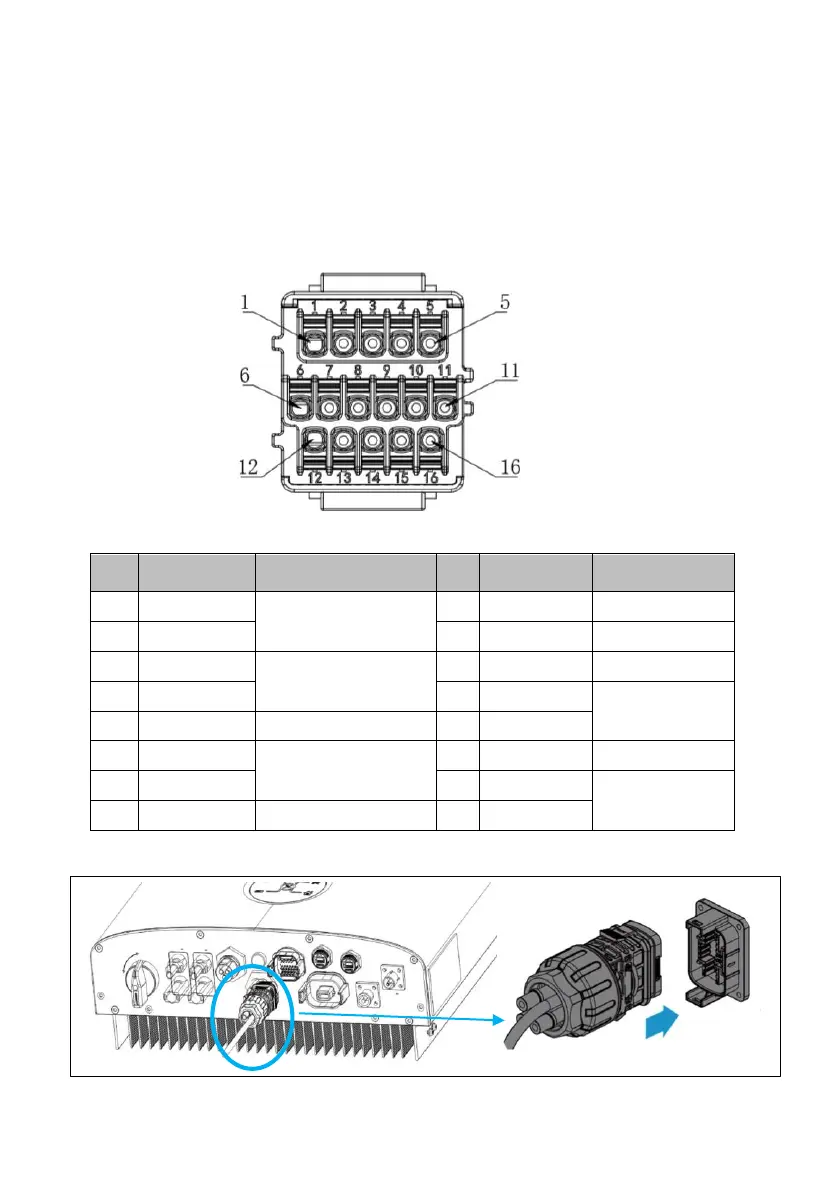

6.9 Multi COM Terminal Connection
The inverter provides 16pin terminals to facilitate you to install CT or Smart meter,
parallel function or EV charger.
Follow the pin definition below to connect the Multi com communication cables. Do not
remove the resistor or short circuit wire unless you are going to use the corresponding
PINs.
Signal definitions
Pin
Definition
Description
Pi
n
Definition
Description
1
Meter_485B
485 contact interface for
Smart meter
9
SYNC-TXA
2
Meter_485A
10
NC
3
CT_IN1
485 contact interface for
CT
11
NC
4
CT_IN2
12
EV _485A
485 contact
interface for EV
charger
5
NC
N/A
13
EV _485B
6
Paral_CANH
CAN contact interface
for parallel connection
14
NC
7
Paral_CANL
15
Dry-
Dry contact
interface for
generator
8
GND-C
16
Dry+
Assembly reference drawing
