Operating manual and inspection booklet
Overview
102 3532085
String-operated baffle (optional)

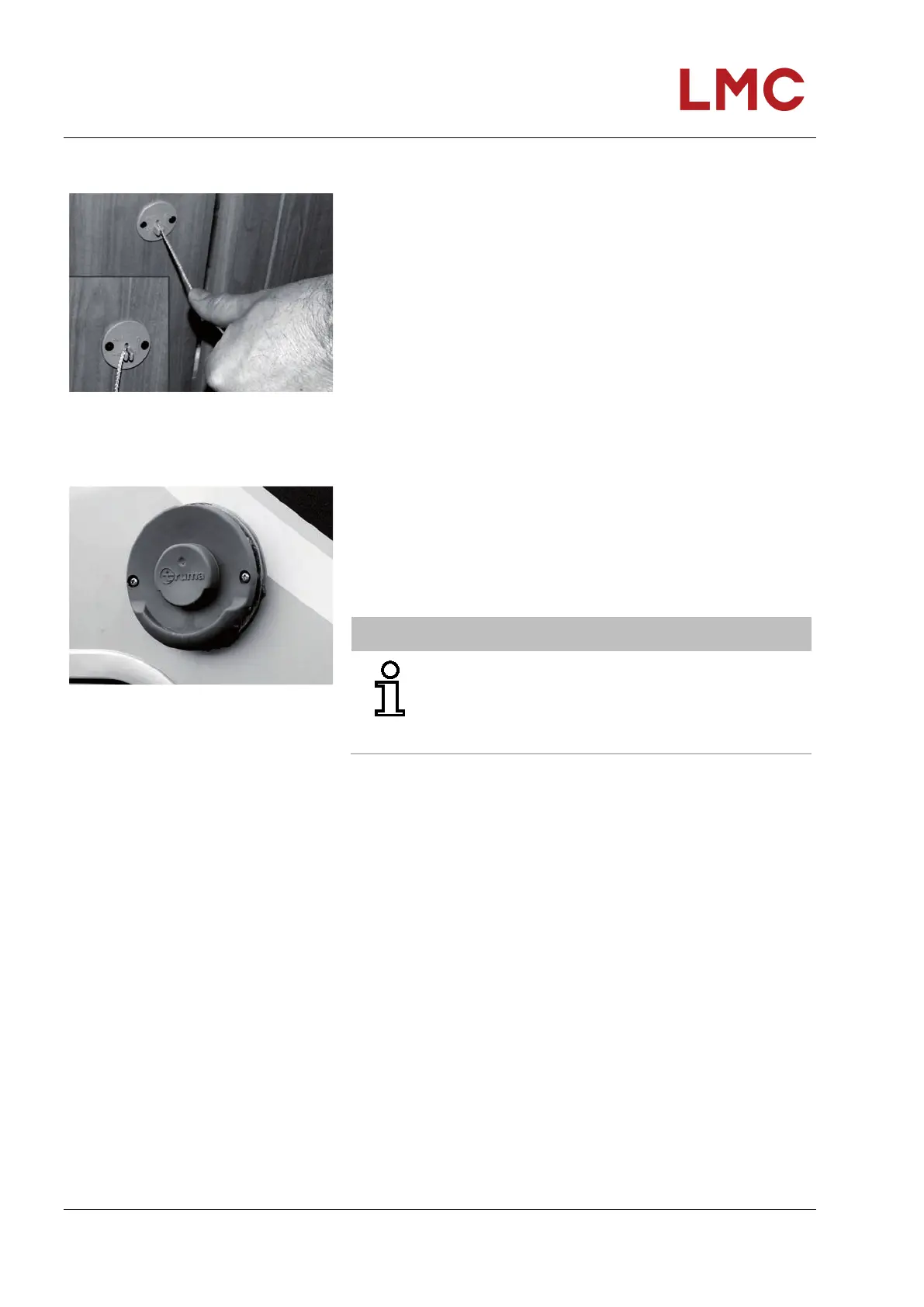

Fig. 73: String-operated baffle
In some areas of the vehicle where continues warm air supplied
is not required or wanted during the heating operation, string-
operated baffles can be used to block the warm air supply.
Depending on the model and selected equipment, these areas
include: External storage locker, alcoves, toilet, fresh water and
waste water tank areas.
Closing the string-operated baffle: Pull the string out and
fasten it to the clip.
Opening the string-operated baffle: Release the string from
the clip.
Wall exhaust stack
Fig. 74: Wall exhaust stack
The wall exhaust stack routes the exhaust gases resulting from
space heating or DHW heating into the external atmosphere.
Depending on model and selected equipment, it is located on the
left or right side of the vehicle.
The opening must always be free and clean to ensure
unobstructed discharge of the exhaust gases.
NOTE
Never use the cover as a clothes hook or to fasten
objects!
Always keep the opening free of leaves, dirt, and
other fouling!
