3.4.2 12 V fuses in the motorhome
The Elektroblock EBL 400 A is installed in front left side seat
bench. This is the central power supply system for all 12 V
consumers in the electrical system.
On the rear side of the device there are four possible plug
connections next to the 230 V connection, see the table for
Fig. 5.

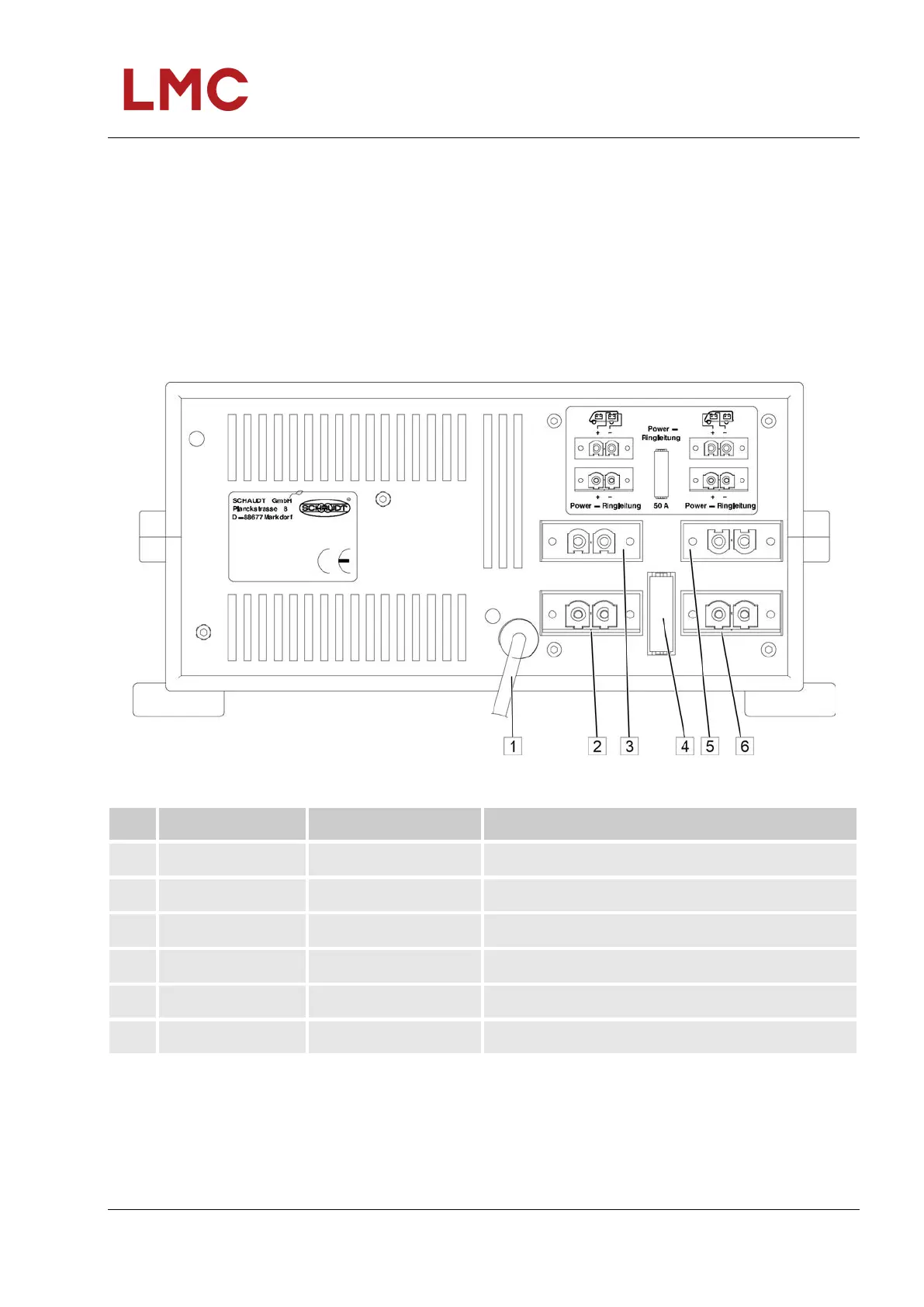

EBL 400 A Rear Side
Fig. 5: Layout of the fuse plug-ins on the EBL 400 A (rear side)
Item Code Meaning Use
1 Cable Power connection Power supply 230 V AC (WAGO plug)
2 Power Connector Not used
3 WB Connector Living space battery connection
4 Fuse 50 A No function because item 2 and item 6 are not used
5 SB Connector Starter battery connection
6 Power Connector Not used
