LMC FORD - Additional Plug-In Fuse Slots

Operating manual and inspection booklet
Technical data
3532085 47
Item Code Meaning Use
13 Block 4 Block 4 Heating, step
14 Block 2 Block 2 D+ input, KS starter battery
15 AES 20 A Fuse 20 A fuse for compressor refrigerator
16 Block 1 Block 1 Refrigerator
17 Block 6 Block 6 Solar charge controller
18 Bl. 10 Block 10 TSF01 (parallel to bl. 9)
19 Battery On/Off Battery isolator
20 Bl. 3 Block 3 SYNCCHAR
21
Bl. S4, Bl. S5,
Bl. S6
Block S4, S5 and S6 SDTBUS
22 Bl. S2 Block S2 Waste water probe/sensors
3.4.3 Additional plug-in fuse slots

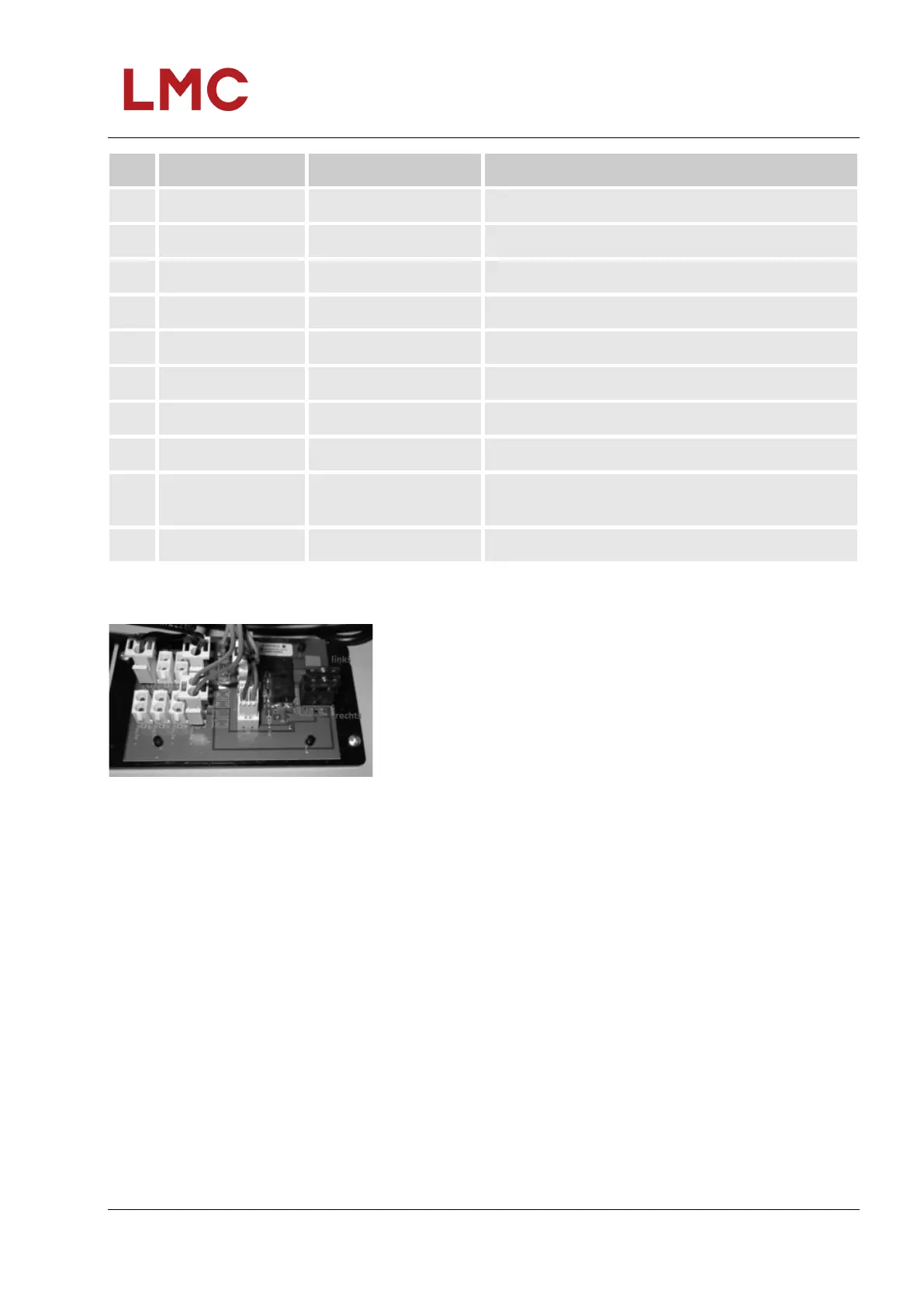

Fig. 7: Interface module
There are multiple fuse distribution boxes in the vehicle for the
plug-in fuses:
1. Interface module under the front right seat:
 5 A = Side marker light / position lights
2. Next to the living space battery:
 50 A = Main fuse
 2 A = Fuse, measurement device for the living space
battery for the booster
 2 A = Fuse, measurement device for the living space
battery for EBL 400
