Operating manual and inspection booklet
Technical data
46 3532085
EBL 400 A Front

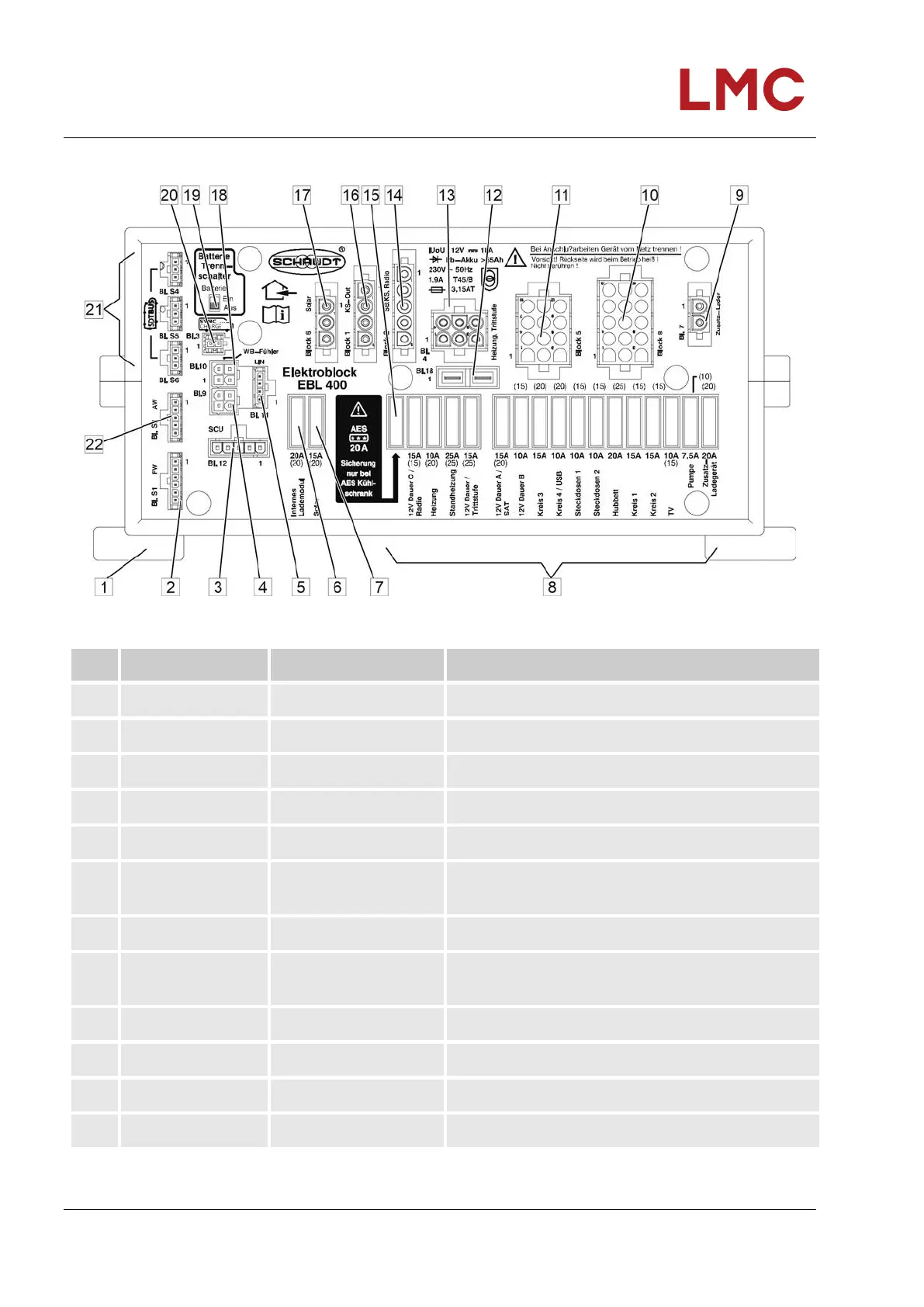

Fig. 6: Layout of the fuse plug-ins on the EBL 400 A (front)
Item Code Meaning Use
1 Mounting feet (4 x)
2 Bl. S1 Block S1 Fresh water probe
3 Bl. 12 Block 12 SCU (not used)
4 Bl. 9 Block 9 TSF01 (parallel to bl. 10)
5 Bl. 11 Block 11 LIN bus
6
Internal
charge module
Fuse
7 Solar Fuse
8
Vehicle FKS
fuses
Fuses Fusing of the 12 V consumers
9 Block 7 Block 7 Spare charging unit
10 Block 8 Block 8 Supply, 12 V consumers
11 Block 5 Block 5 Supply, 12 V consumers
12 Bl. 18 Block 18 Tank heating waste water tank
