3.0 Installation
Pre-Installation
Be sure that the unit has a plug and voltage code compatible with the power source that you intend to use.
Environment
The housing is corrosion and spray resistant but should not be subjected to excessive spray or ambient temperature over
122° F (50° C). Never immerse the unit.
Installation
The DP5000 Controller should be mounted on a solid, stable surface. pH adjustment pumps should be installed following
the manufacturer’s recommendations. For installations requiring longer cables, consult your distributor. The electrode
installation will vary, depending on the process used. In general, the temperature electrode and pH electrode should be
mounted together, and placed far enough downstream from the source of pH adjusting solution that sufficient mixing may
occur, but close enough to eliminate hydraulic lag time of response. Refer to the typical installation diagrams on the
following page.
3.1 Mounting the Electronic Enclosure
The DP5000 control module is supplied with integral wall mounting flanges. It should be hung with the display at eye level,
on a vibration-free structure, in a location where liquids will not be splashed on it. All four (4) top-mounting holes should
be used for structural stability. The control module requires the following clearances:
CAUTION
!

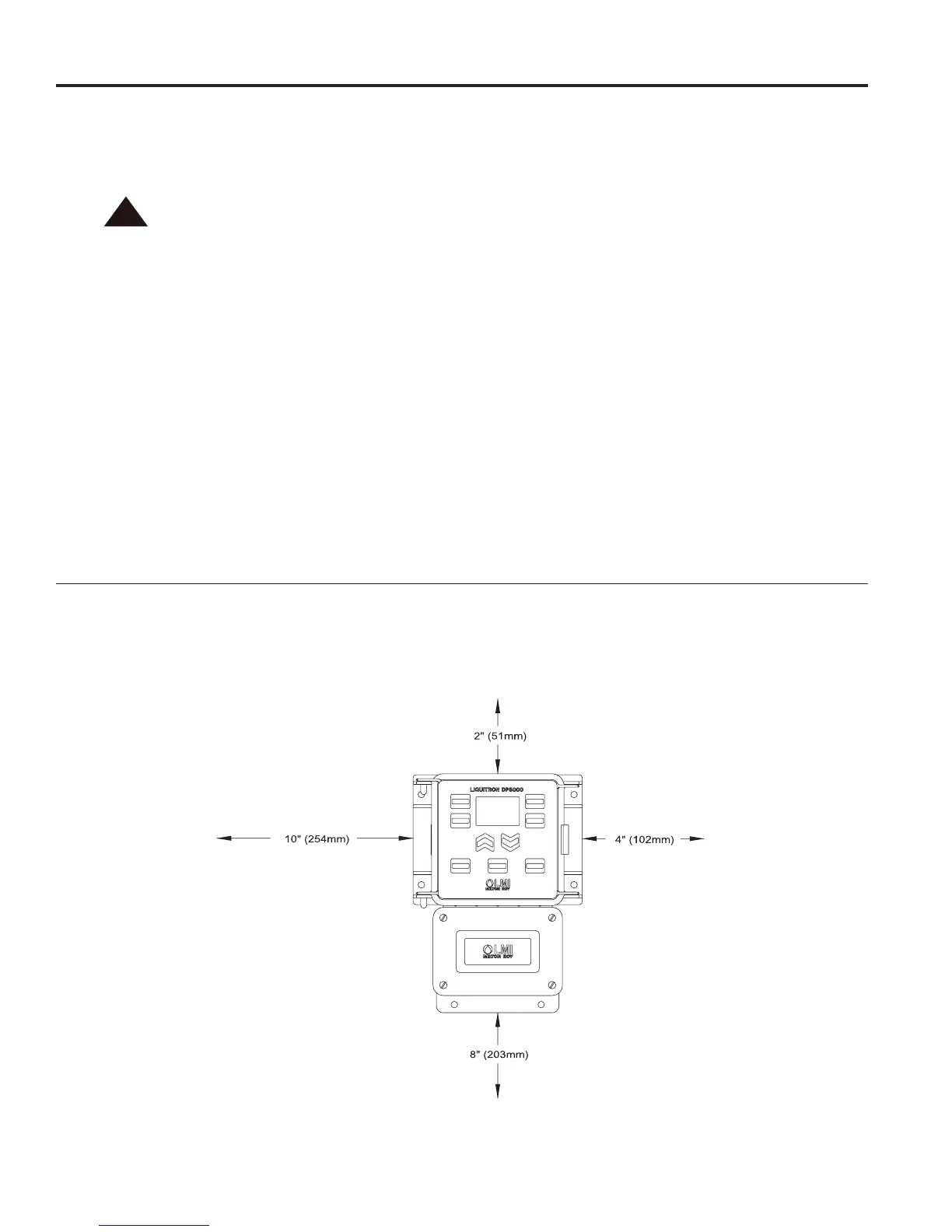

Figure 2: Minimum Clearances
