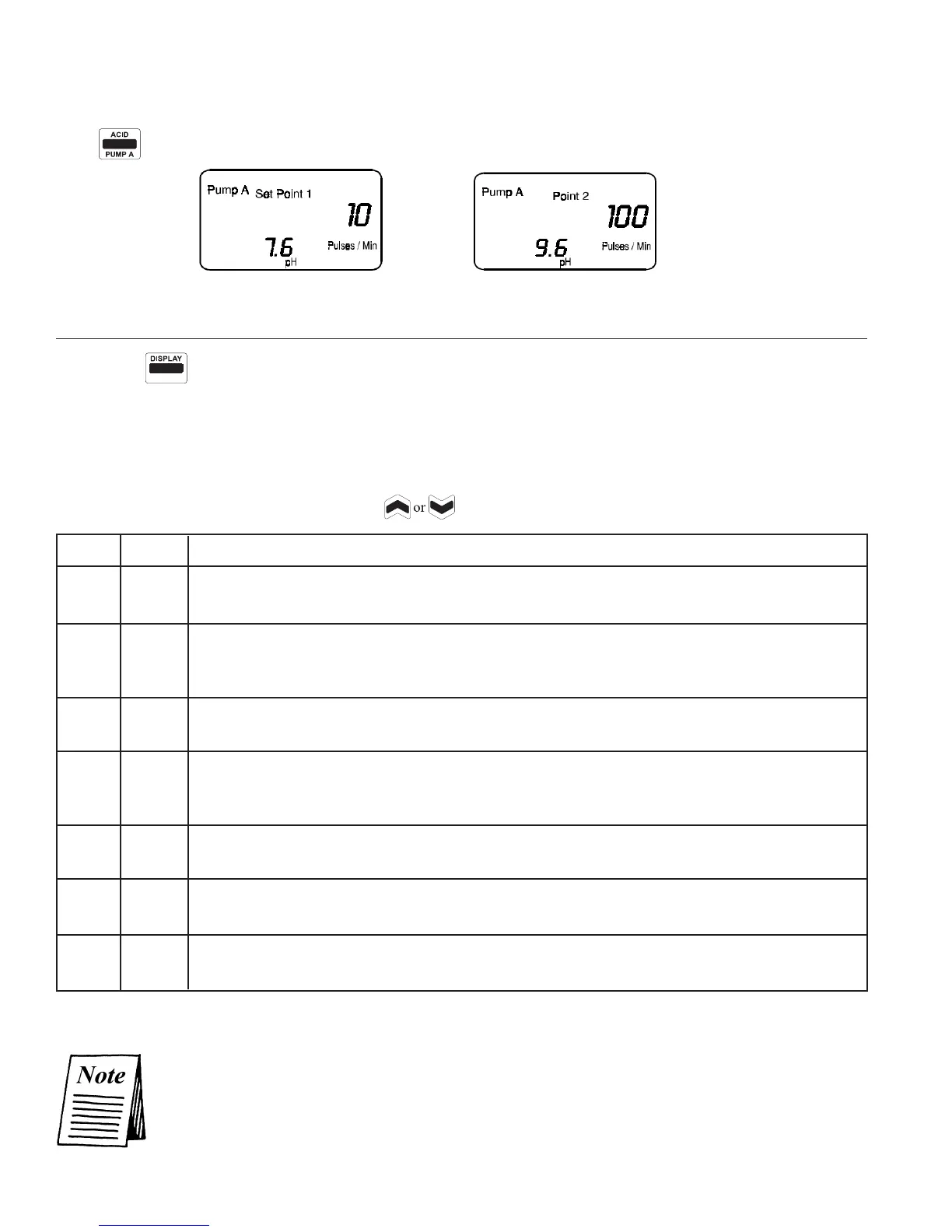

Similarly, the Pump Control Points can be displayed while in the ‘RUN’ Mode by pressing the ‘Pump A’ or ‘Pump B’ keys
once.
Press
and the following screens display:
+3 Seconds
4.6 Advanced Menu:
Holding the key for five (5) seconds accesses the ‘Advanced Features’ Menu, and allows these settings to be
changed.
Press the ‘DISPLAY/MENU’ key for five (5) seconds while the controller is in the ‘EDIT’or ‘OFF’ mode.
The first item displayed is the software revision. Pressing ‘Display/Menu’ again cycles to the first option. The first number
is the option. The second is the setting. Use the
to change the setting.
The Option Board (37830) is required for Option 6.
Option Setting
1 1 Control returns to Run 60 seconds after last keypress
0 Run/Edit key is On/Off
21On/Off Control
0 Proportional Control (and On/Off)
2 Proportional Control
3 1 Point 3 Programming Enabled
0 Point 3 Programming Disabled (Two point only)
4 1 Solenoid programmed to switch on after programmed time‘DELAY 1’ and to switch Off
after programmed time ‘DELAY 2’
0 Solenoid Disabled
5 1 (NA)
0
6 1 mA Enabled - Option Board must be fitted
0 mA Disabled
7 1 Allows editing of #5 & #6
0 Lockout #5 and #6
