3.3 pH Adjustment Pump(s)
There are two (2) versions of the DP5000, one is the ‘ON/OFF’ Output and the second is ‘PROPORTIONAL’ Output.
The On/Off Output DP5000 pH Controller will operate any pH adjustment pump(s) which operate on the same line voltage
as the controller itself. Combined continuous controlled load must not exceed 4A @ 115 V or 2A @ 230 V. To ensure
efficient control, the pumps should be capable of delivering at least 150% of the maximum pumping requirement. Install
and calibrate the pumps according to the manufacturer's recommendations.
The Proportional Output DP5000 pH Controller will operate any LMI A9, A7, B9, B7, C9, C7, E7 or L7 pump, or any
other pump which operates by providing direct proportional response to a modulated pulse input signal. The pumps must
be set to the ‘external’ control mode. To ensure efficient control, the pumps should be capable of delivering at least 150%
of the maximum pumping requirement. Install and calibrate the pumps according to the manufacturer’s recommenda-
tions.
3.4 Keypad and Display
The DP5000 pH Controller menu allows the user to input all the variables necessary to customize the controller for the

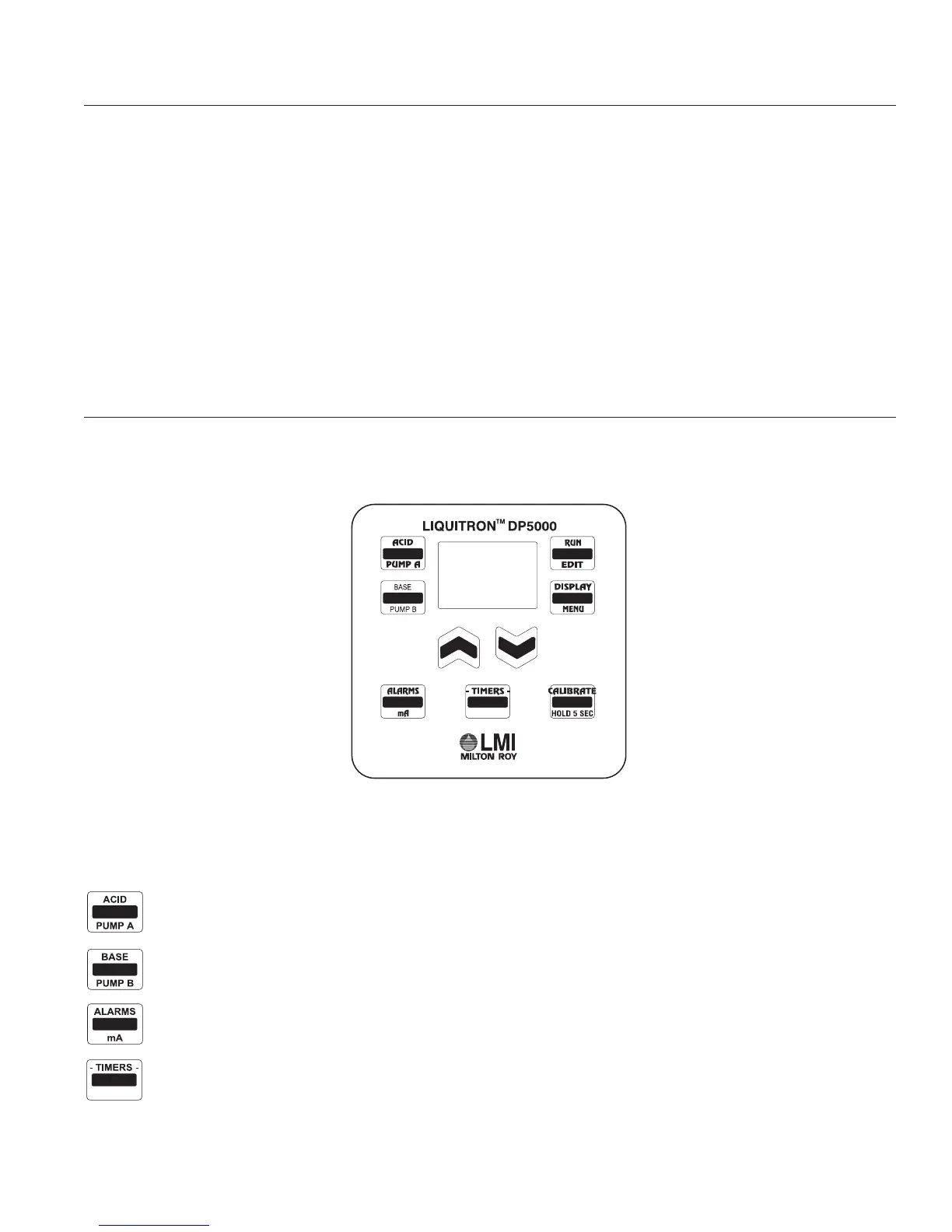

application. The keypad is used for all programming (see Figure 7).
Figure 7: Keypad
Keys:
This key is used to set up the control profile for the acid dosing pump. (Holding the key for five (5) seconds
will allow priming of Pump A) (Factory setting 90 SPM).
This key is used to set up the control profile for the base (alkali) dosing pump. (Holding key for five (5)
seconds will allow priming of Pump B) (Factory setting 65 SPM).
This key is used to program the high and low alarm points and hysteresis (ON/OFF mode). It also allows
programming of the mA output when installed.
This key is used to program ‘run times’ for Pumps A and B, ‘delay times’ 1 and 2 for actuating and controlling
a solenoid valve (when programmed ‘ON’ in the advanced features menu). This key also allows setting of
the ‘manual temperature’ and the controller response rate ∆ pH. If pump run time is over 11:01 hours, the
run time is disabled. The pump will not be stopped and will run continuously.
