Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 216

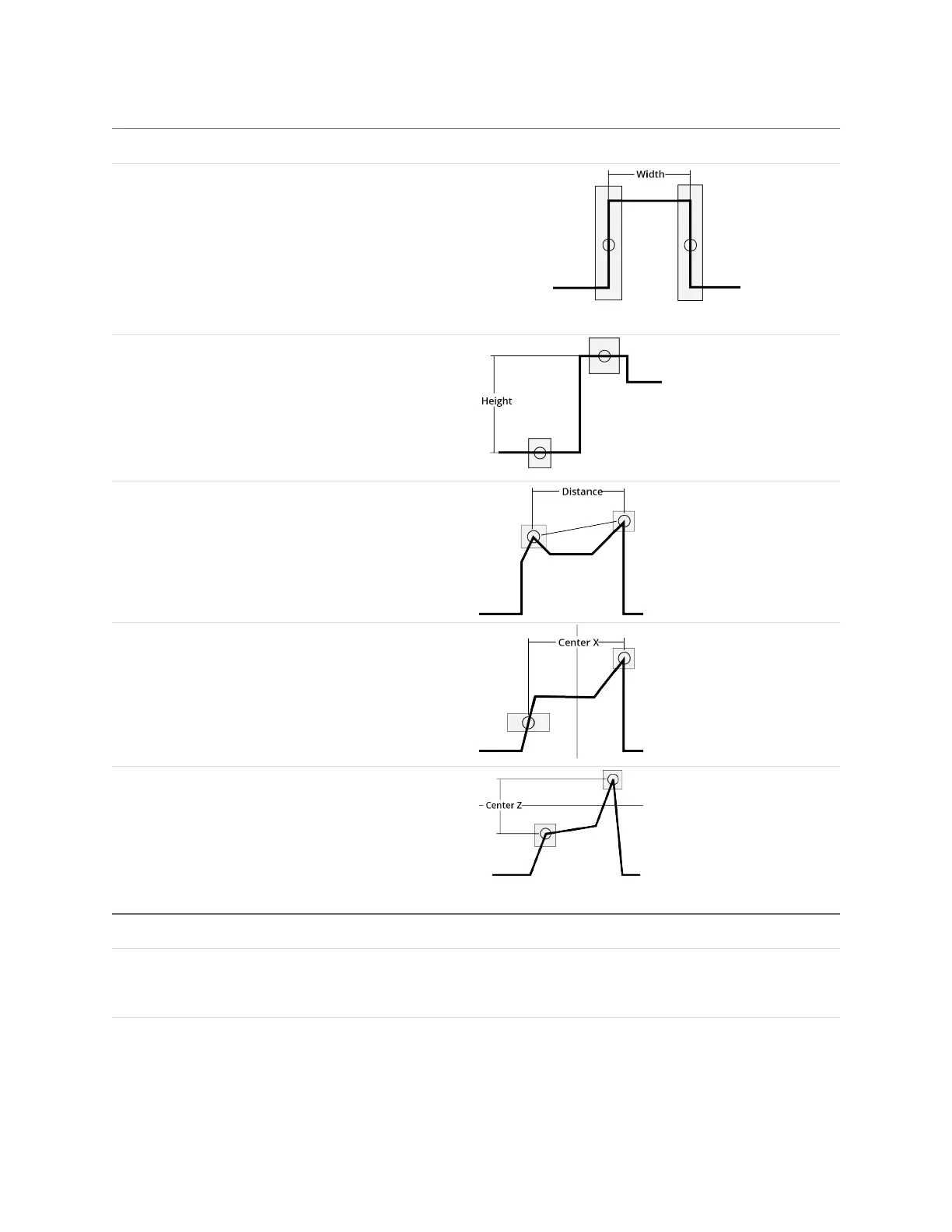

Measurement Illustration
Width
Determines the difference along the X axis between two
feature points.
The difference can be calculated as an absolute or signed
result. The difference is calculated by:
Width = Feature 2
X position
– Feature 1
X position
Height
Determines the difference along the Z axis between two
feature points.
The difference can be expressed as an absolute or signed
result. The difference is calculated by:
Height = Feature 2
Z position
– Feature 1
Z position
Distance
Determines the direct, Euclidean distance between two
feature points.
Center X
Finds the average location of two features and measures
the X axis position of the average location
Center Z
Finds the average location of two features and measures
the Z axis position of the average location.
Measurements
Parameter Description
Source The sensor, or combination of sensors, that provides data
for the tool's measurements. For more information, see
Source on page 183.
