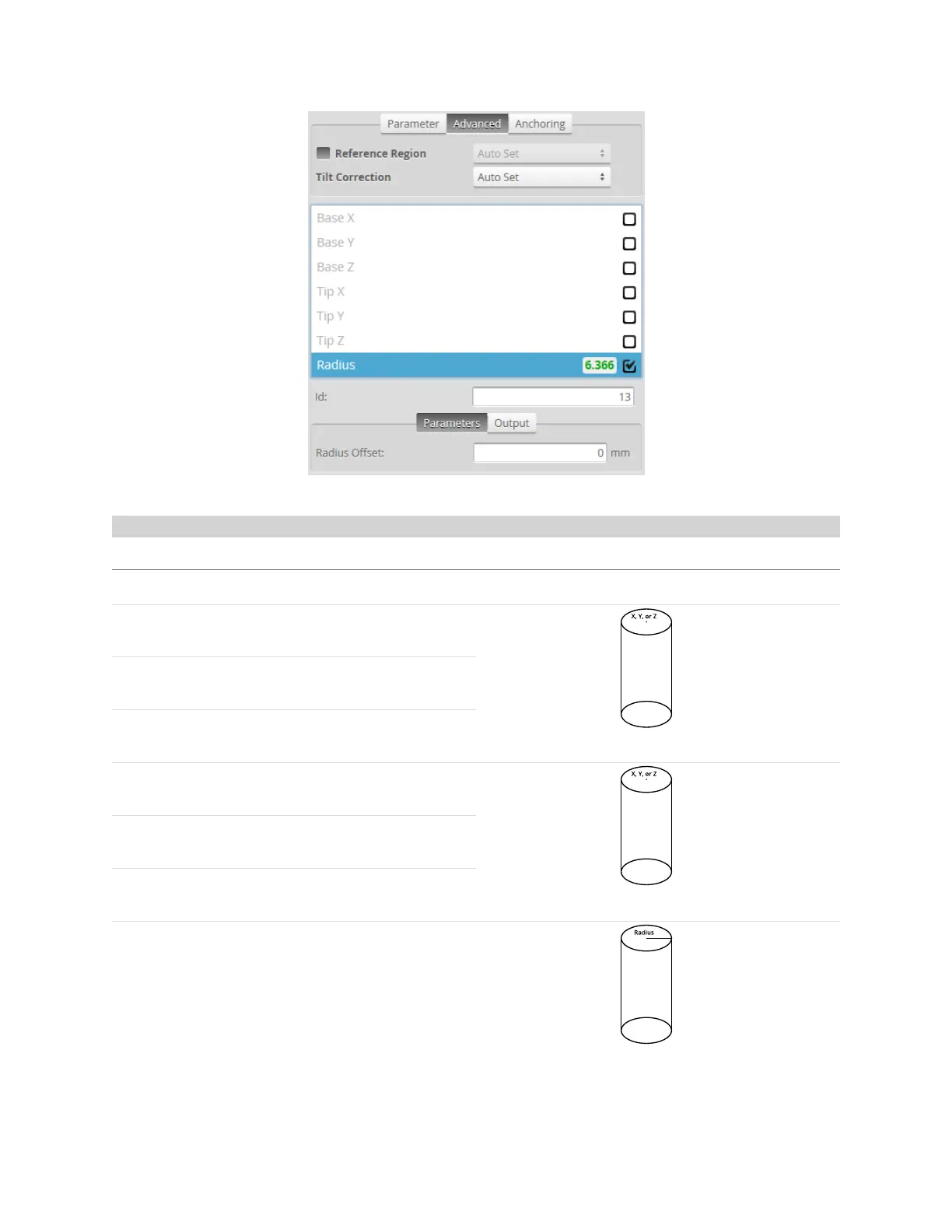

Measurement Panel
Measurements, Features, and Settings
Measurement Illustration
Tip X
Determines the X position of the stud tip.
Tip Y
Determines the Y position of the stud tip.
Tip Z
Determines the Zposition of the stud tip.
Base X
Determines the X position of the stud base.
Base Y
Determines the Y position of the stud base.
Base Z
Determines the Z position of the stud base.
Radius
Determines the radius of the stud.
Measurements
