Gocator Line Profile Sensors: User Manual

Specifications • 638

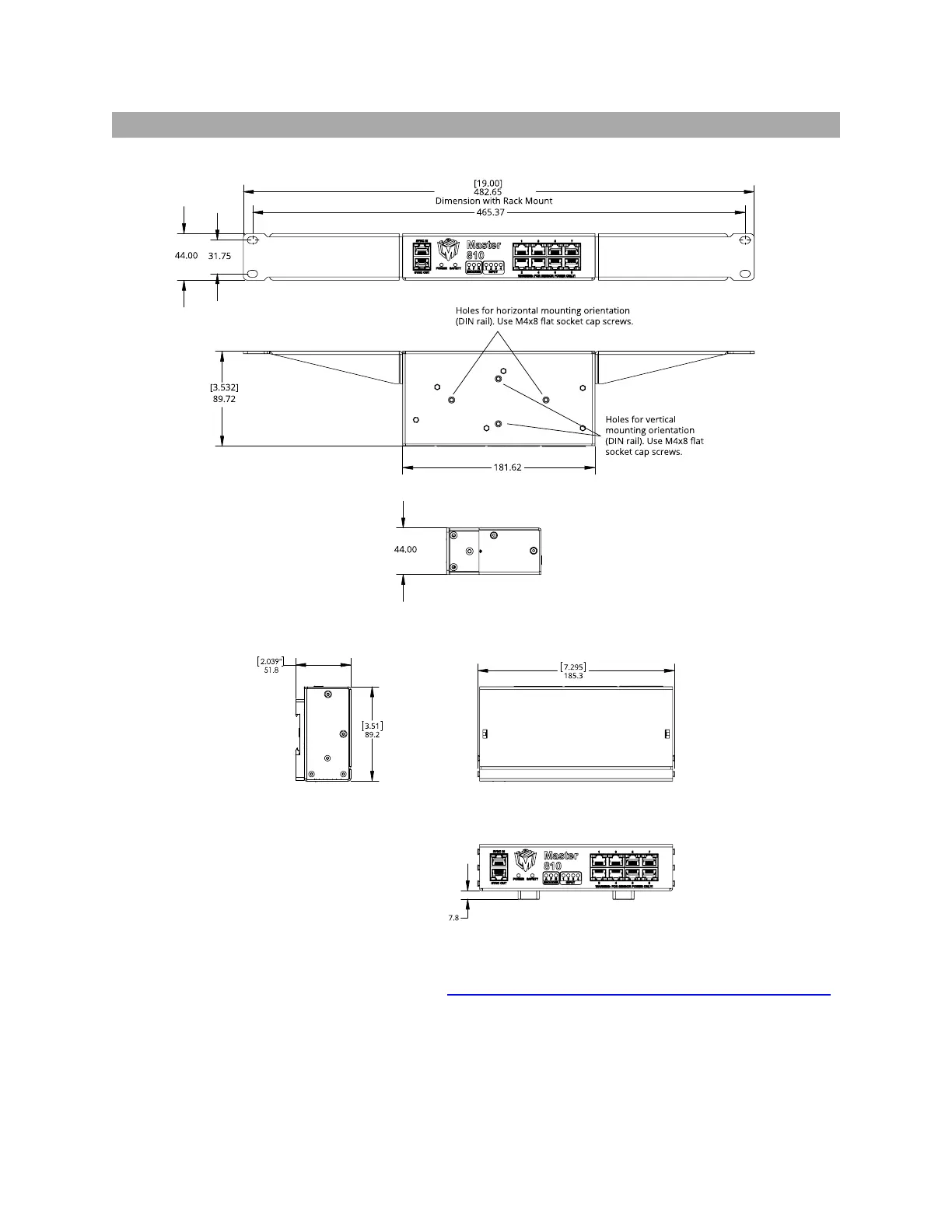

Master 810 Dimensions

With 1Urack mount brackets:

With DIN rail mount clips:

For information on installing DINrail clips, see Installing DIN Rail Clips: Master 810 or 2410 on page 35.

The CADmodel of the DIN rail clip is available at https://www.winford.com/products/cad/dinm12-rc.igs.
