Gocator Line Profile Sensors: User Manual
Gocator Web Interface • 291
See Adding and Configuring a Measurement Tool on page 182 for instructions on how to add
measurement tools.
The Z offset reported is the Z position at zero position on the X axis and the Y axis.
The results of the Angle X and Angle Y measurements can be used to manually customize the tilt angle in
the Hole, Opening, and Stud tools.

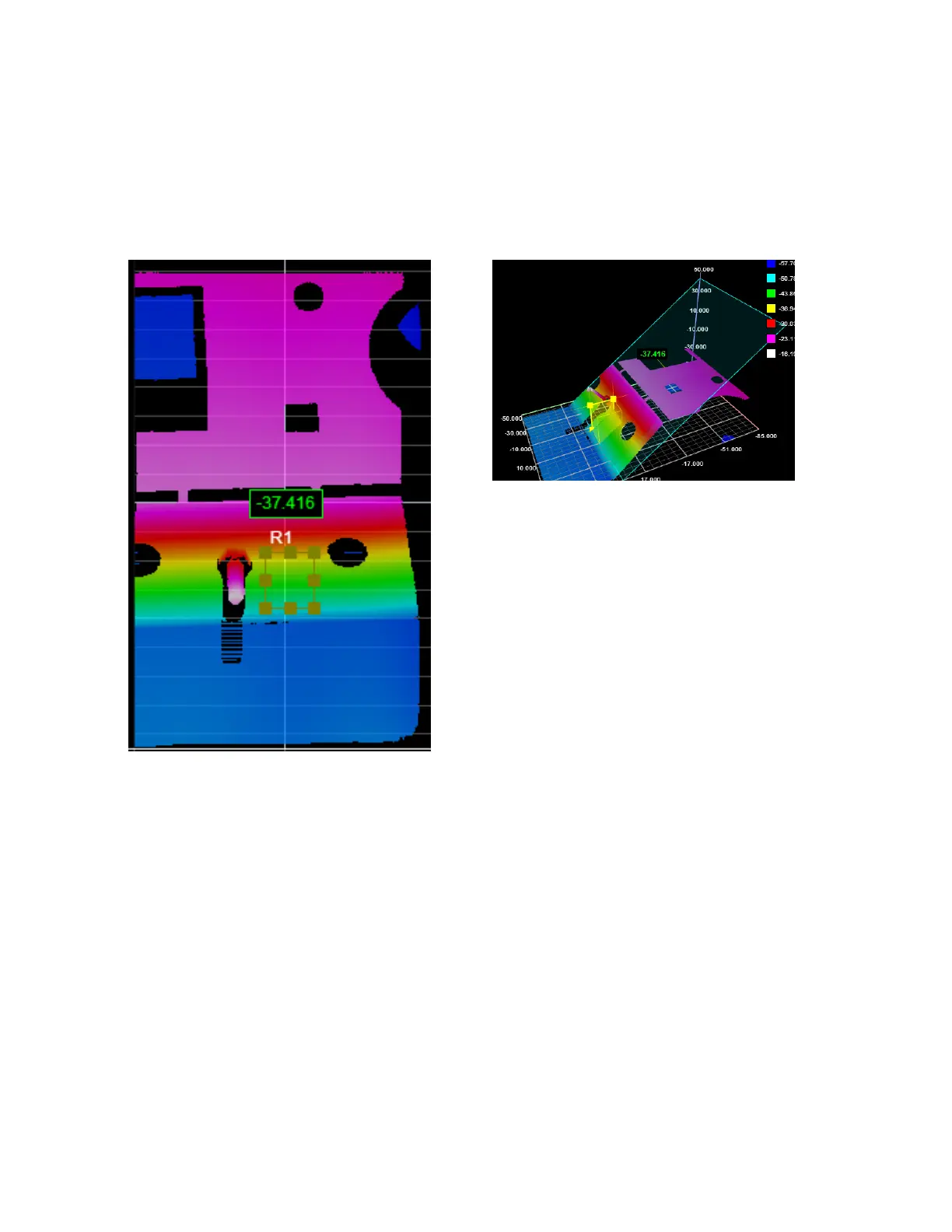

2DView
3DView
