Gocator Line Profile Sensors: User Manual

Specifications • 635

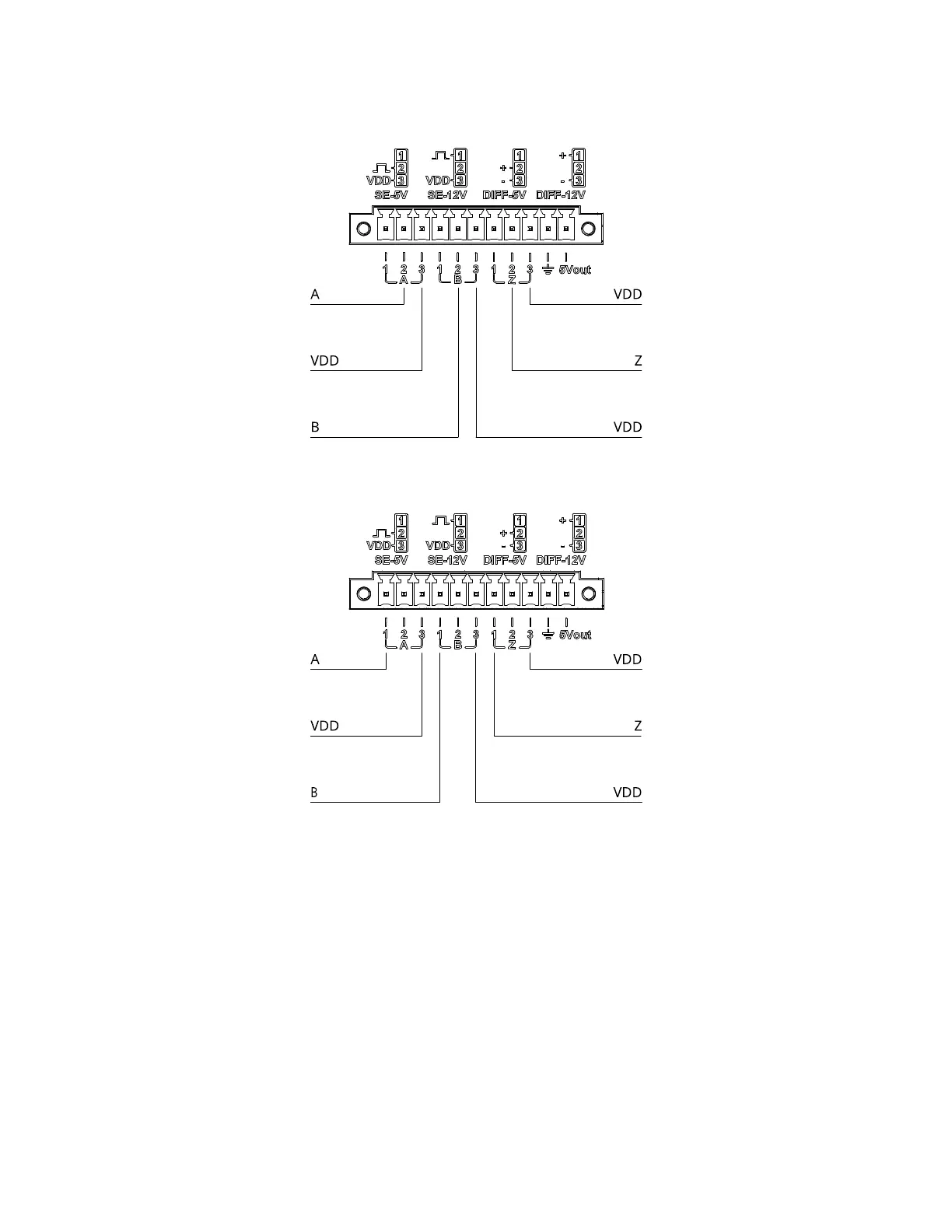

To determine how to wire a Master to an encoder, see the illustrations below.

Single-Ended 5 VDC

Single-Ended 12 VDC

Main Page
